Commissioning
8.5 Commissioning with the STARTER commissioning tool
SINAMICS DCM DC Converter
306 Operating Instructions, 12/2018, A5E34763375A
Defining the actual value source

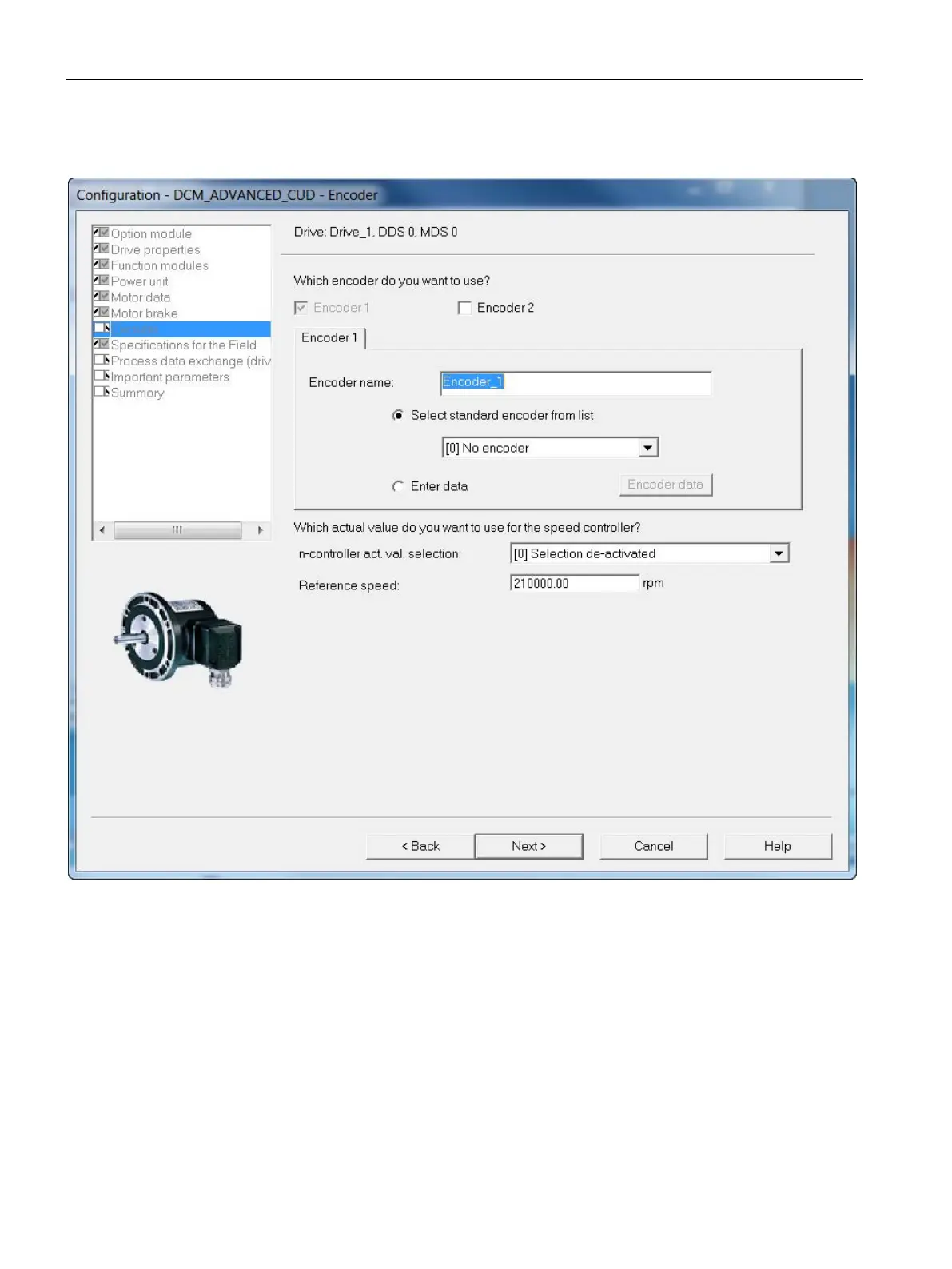

Figure 8-23 Defining the actual value source
"Encoder 1" is the encoder evaluation on the CUD.
"Encoder 2" is the evaluation of an optional encoder using SMC10 or SMC30.
