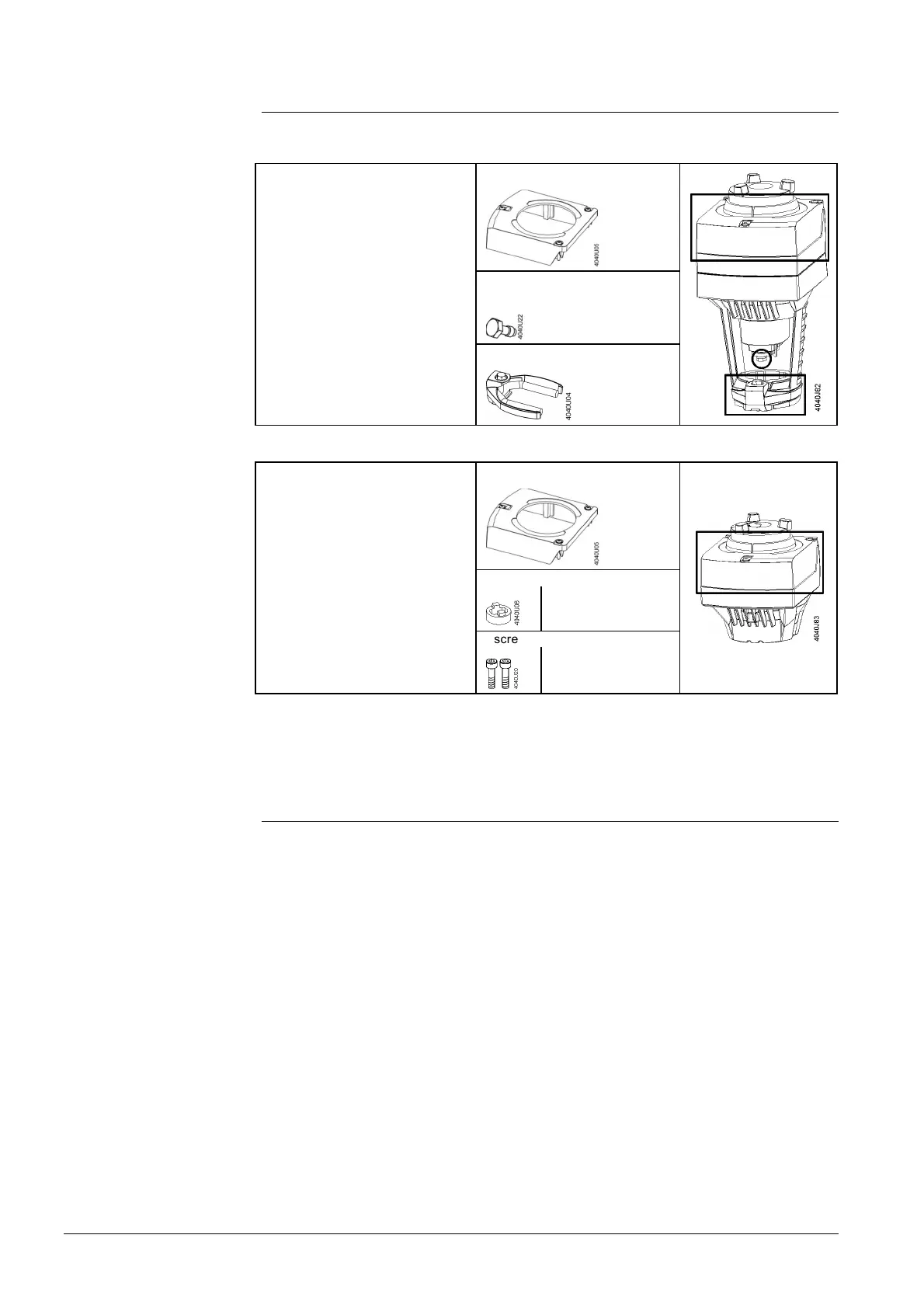

2.8 Spare parts
The following spare part sets are available:
Stock number
8000060843
Housing cover
Screw
(valve stem coupling)
U-bracket
Single components from the spare part sets are not available.
Stock number
8000060844
Housing cover
2 adapters
1 pc. 14 mm
1 pc. 11 mm
4 screws
2 pcs. M5 x 20 mm
2 pcs. M6 x 20 mm
Single components from the spare part sets are not available.
2.9 Sizing
2.9.1 Parallel operation of actuators
3-position actuators must have one specific controller each, refer to "Connection
diagrams" (page 82).
Up to 10 actuators can drive in parallel on a controller output with a rating of 1 mA.
Modulating actuators have an input impedance of 100 kΩ.
The Modbus converter is designed for analog control on 0..10 V on the actuator
side.
Note: Keep the setting of the analog signal on the actuator as is (switch 1 to
"OFF"), adjustment is not allowed.
The actuators are factory-set to equal-percentage characteristic curve.
Note: The DIL switch (actuator-internal changeover of characteristic curve) must be
set to "log" (switch 2 to "OFF").
SAY.., SAX.., SAV..
SAL..
SA..31.. and SA..81..
SA..61..
SAX61../MO
