Siemens Actuators SAX.., SAY.., SAV.., SAL.. for valves CE1P4040en
Building Technologies Functions and control 2018-12-05

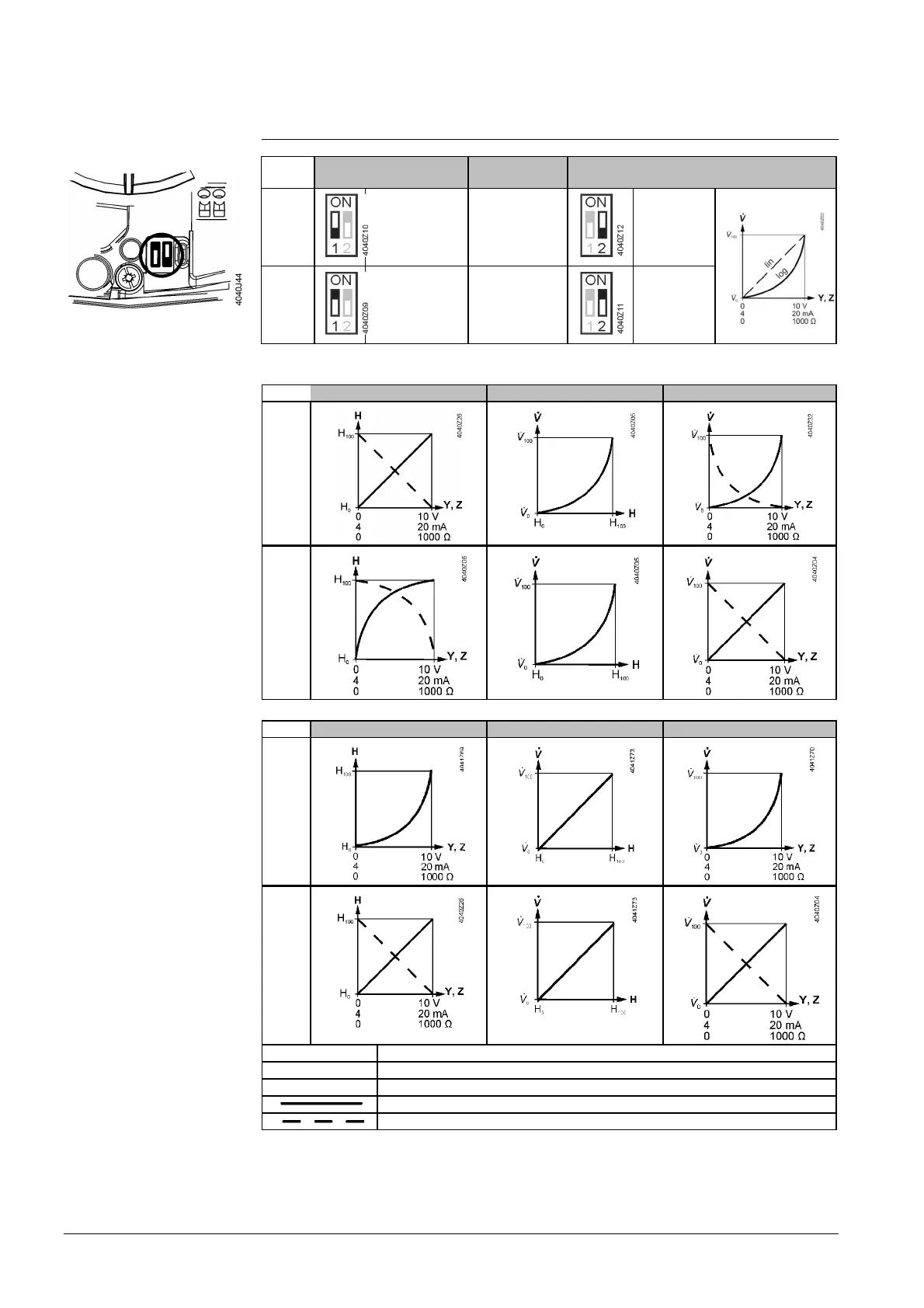

4.4 Positioning signal and flow characteristic
selection
1)
Factory setting: All DIL switches set to OFF Ω
Actuator Valve VVF.. / VVG41.. Totally
log
lin
Actuator Combi-Valve VPF43/VPF53 Totally
log
lin
Y, Z Positioning signal
H Stroke
V Volumetric flow
Acting direction: Direct
Acting direction: Reverse
SAX61.03/MO: Positioning signal and flow characteristic selection are not
permissible.
Positioning signal "Y"
Position
feedback "U"
Flow characteristic
OFF
1)
DC 0…10 V DC 0…10 V
log =
equal-
percentage
ON DC 4…20 mA DC 0…10 V
lin =
linear
DIL switches
Flow characteristic
SAX61.03 / SAV61.00
with VVF..
Flow characteristic
SAY61P03 / SAX61P03 /
SAV61P00 with VPF..
Note
