76 / 92
Siemens Actuators SAX.., SAY.., SAV.., SAL.. for valves CE1P4040en
Building Technologies Functions and control 2018-12-05

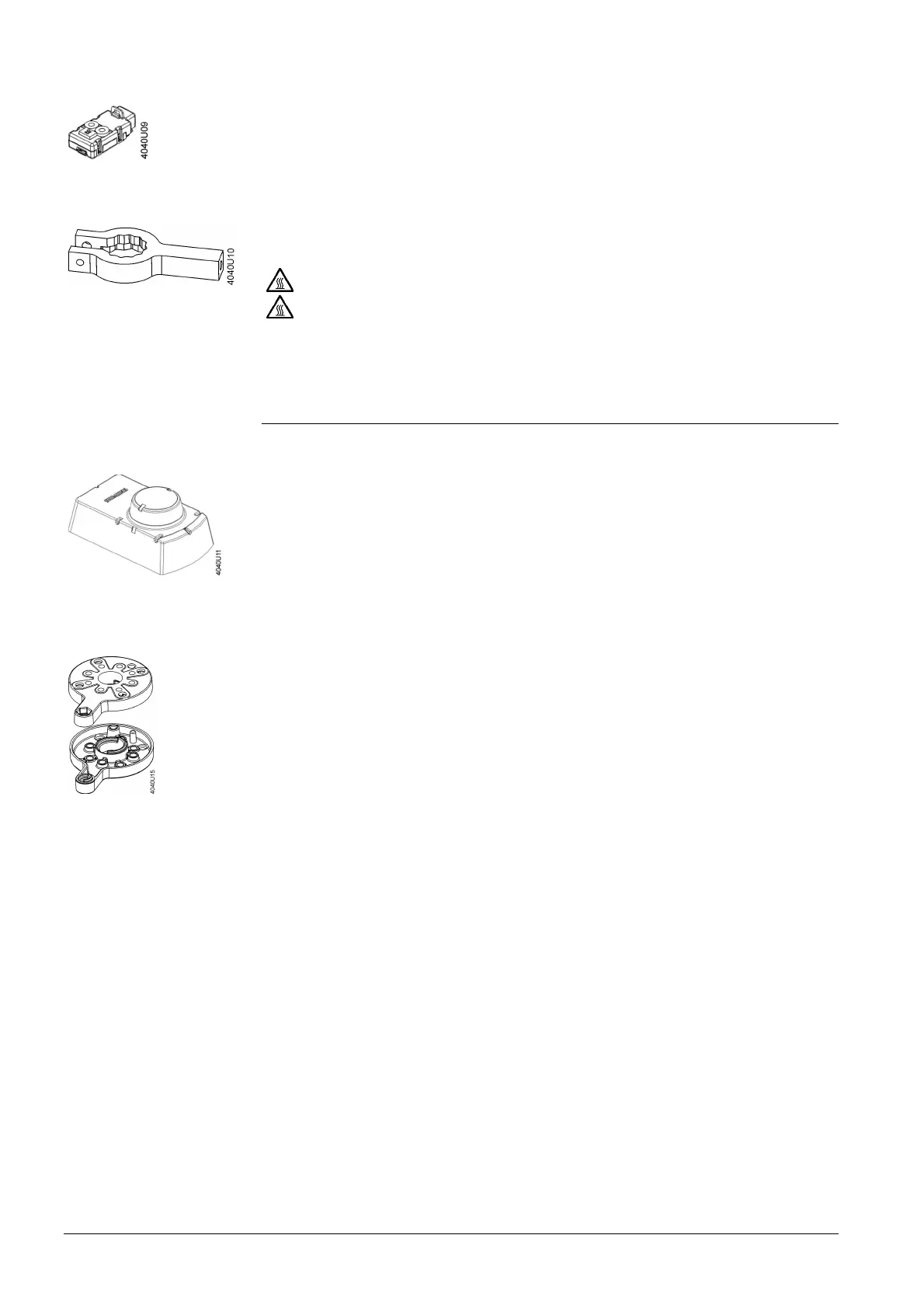

Function module AZX61.1 offers the following choices for changing control:
· Changeover of acting direction (page 59)
· Sequence control (page 57)
Stem heating element ASZ6.6 prevents the formation of ice on the stem when
medium temperatures drop below 0 °C. It is suited for universal use with valves
having a stem diameter of 10 or 14 mm.
The stem heating element heats up to 85 °C.
This is a PTC element, which means it shows up with a low resistance at
power up inrush current may reach 8.5 A at low temperatures / high
voltage level
4.14.6 Mechanical accessories
Weather shield ASK39.1 protects the actuator when installed outdoors. This does
not lead to a change of IP class (IP54).
SAX61../MO is not suitable for outdoor applications
Mounting sets ASK31N, ASK32N, ASK33N and ASK35Nenable the actuators to be
fitted to slipper valves VBF21.., DN65…150 and butterfly valves VKF41.. and
VKF45 (page 28-35).
Function module
AZX61.1
Stem heating element
ASZ6.6
Weather shield
ASK39.1
Mounting sets
ASK3..N
