Siemens Actuators SAX.., SAY.., SAV.., SAL.. for valves CE1P4040en
Building Technologies Handling 2018-12-05

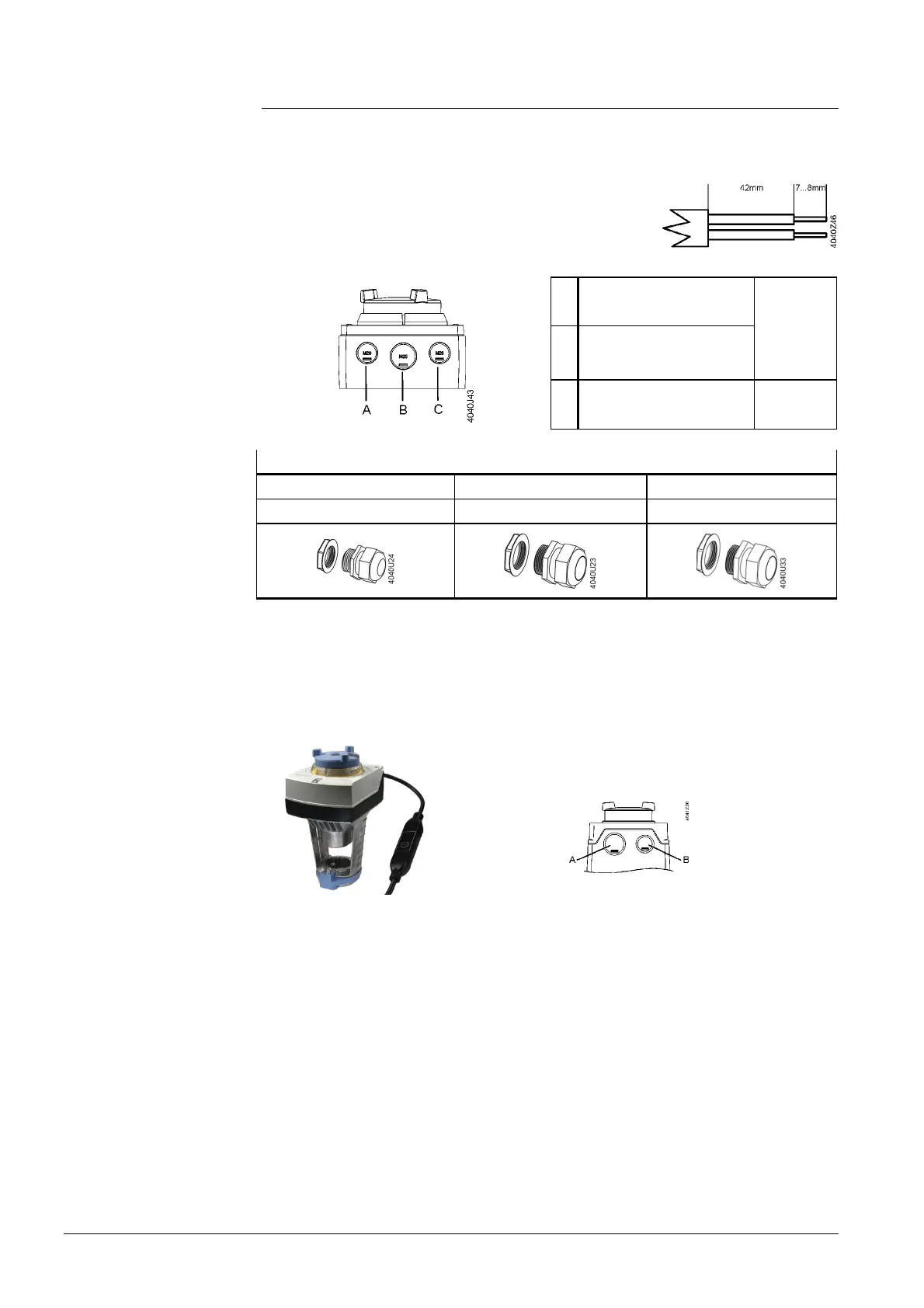

3.1.9 Wiring (installation)
Conduct the electrical connections in accordance with local regulations on
electrical installations as well as the "Connection diagrams" on page 81.
The cable endings must be prepared before as
follows.
A
EU: M20
US: ½“
Standard
Connection
actuator
B
EU: M25
US: ½“
Ground cable
for outdoor
installation
C
EU: M20
US: ½“
Connection
accessorie
s
Cable glands (not contained in scope of delivery)
Metric Metric Inch thread
M20 M25 ½“
Prior to installation, the following preconditions must be satisfied:
· Actuator is mechanically connected to a Siemens valve.
· Housing cover is removed (step 6 "Special notes on mounting", page 36).
Device contains fixed connecting
cable. Left cable duct used (A).
Preparation of wire
endings
Communicating
actuators
