Siemens Acvatix SAX Series User Manual

34 / 92
Siemens Actuators SAX.., SAY.., SAV.., SAL.. for valves CE1P4040en
Building Technologies Handling 2018-12-05

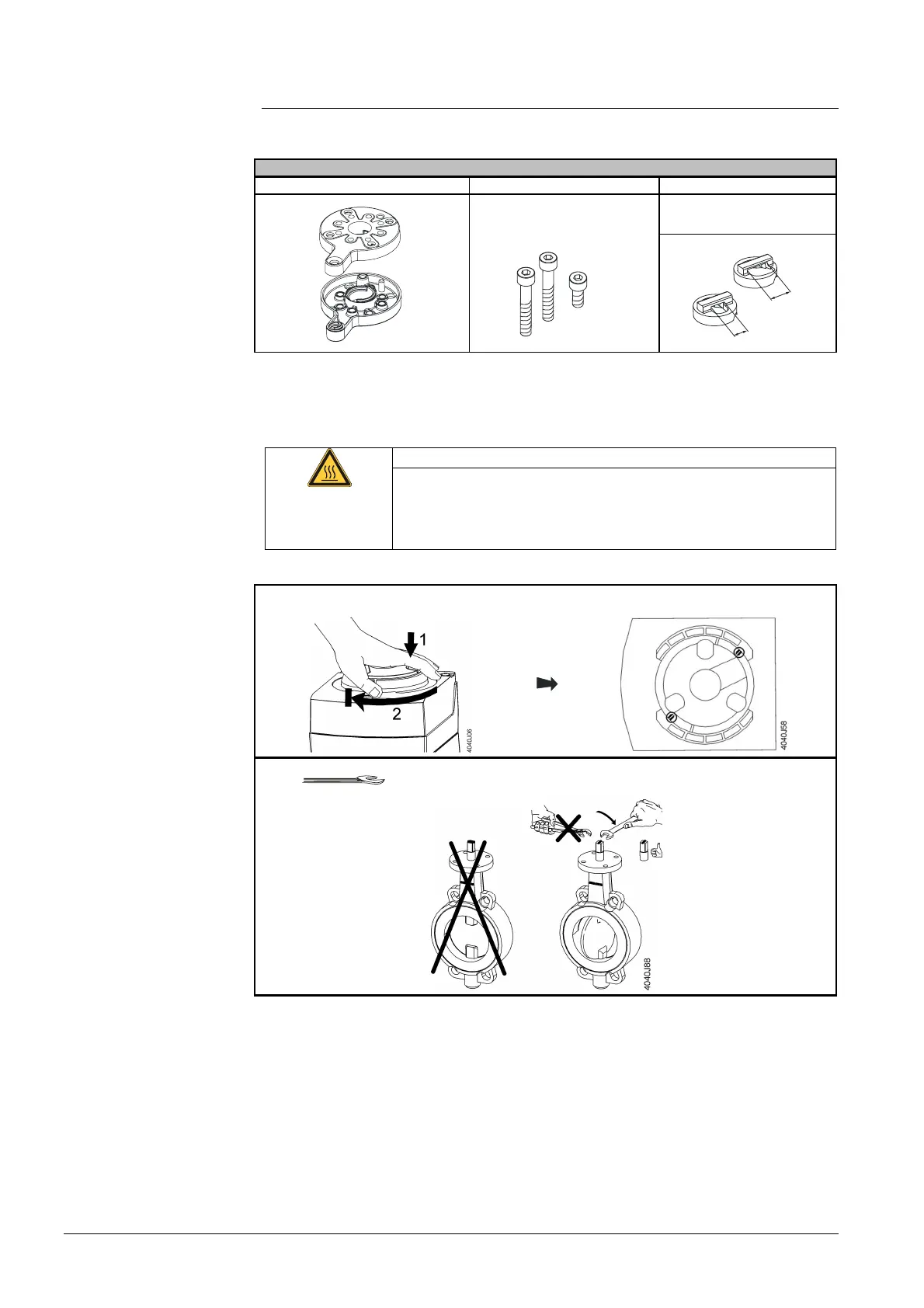

3.1.7 Fitting rotary actuators to butterfly valves VKF45..
First, observe "Mounting positions" (page 25).
Scope of delivery
Mounting set (2 parts) 5 screws 2 adapters
2 pcs. M8 x 50 mm
1 pc. M5 x 20 mm incl. nut
1 pc. 12 mm
1 pc. 16 mm
Actuators SAL.. are not suited for use with mounting sets ASK31, ASK32, ASK33,
ASK35, ASK40, and ASK41.
Caution!
Risk of burns from hot surfaces!
If you touch heated parts, you will get burns as result.
· Allow to cool parts.
· Wear protective gloves.
1
2
12 mm (DN 40…125)
16 mm (DN 150 / 200)
4040U15
4040U19
12 mm
16 mm
Mounting set ASK35N
For VKF45..
Note
