Industry Mobility
Betriebsanleitung PZENTW A6Z08101637795/EN1/000/B 12
[7620] ELP 319 LANGE_THO A25000-X22-Q9-7-7620 of
DC013 20081022 Notice no.: 500000097465 33
Copyright (C) Siemens AG 1998 All Rights Reserved - 0000ZQ6U.doc
1 Split pin 13 Spring washer
2 Washer 14 Flange for gasket
3 Bolt 15 Cover plate
4 Fork 16 Gasket
5 Hexagon bolt 17 Guide sleeve
6 Locking plate 18 Slide (prior to assembly, grease all sides
with the above-mentioned grease)
7 Dowel pin 19 Slide
8 Shim 20 Cheese-head screw
9 Insulating plate 21 Spring washer
10 Insulating sleeve 22 Cheese-head screw
11 Plate
12 Cheese-head screw

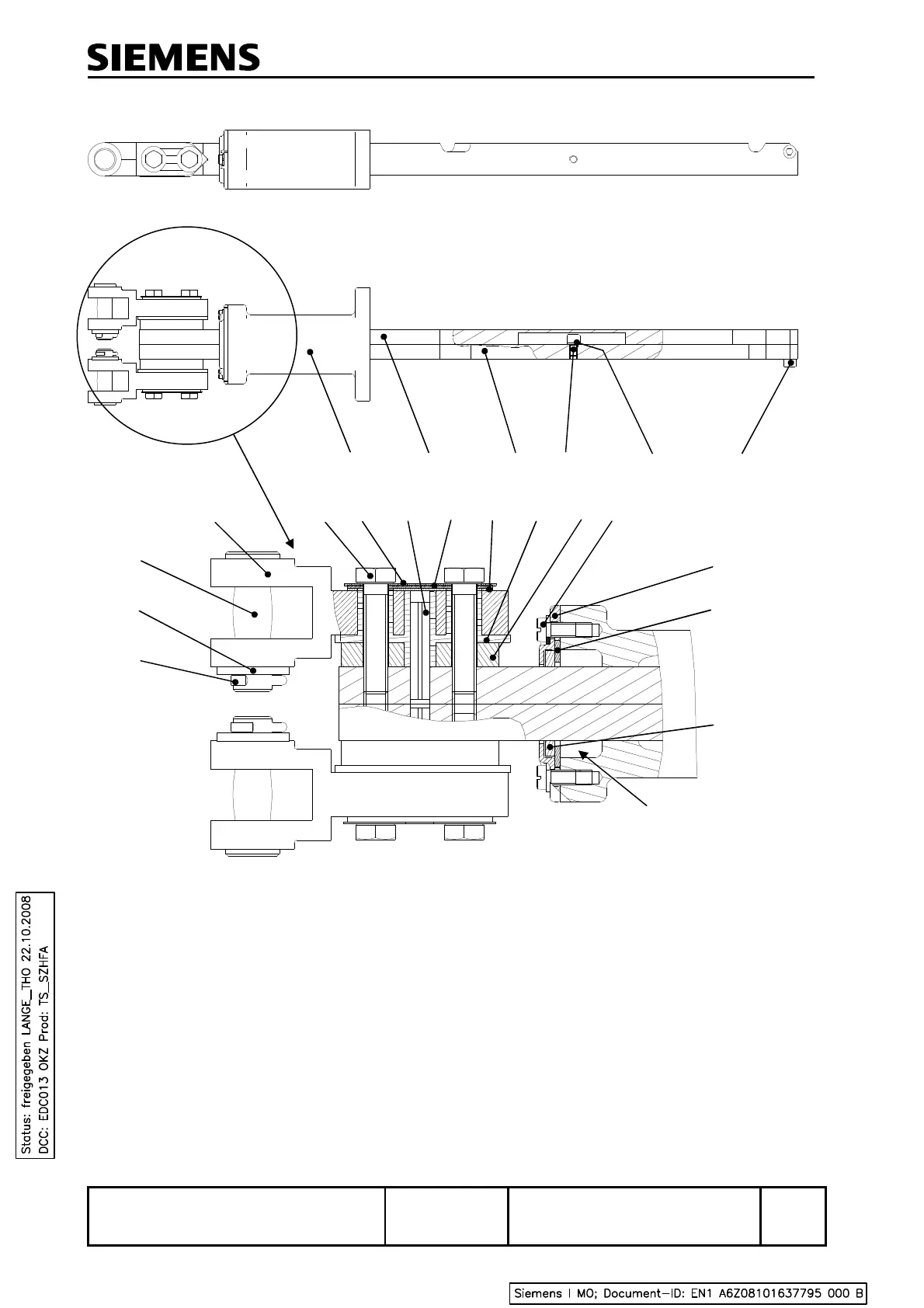

Figure 3 Detector slides
1
2
3
4 5
6 7 8 9 10 11 12, 13
14
15
16
17 18 19 20 21
22
Grease chamber filled
with a/m grease
