10 Trackside Mounting
10.1 Mounting on Base Plates
DANGER
Before you start working on the track, inform the signalman
responsible in order that he blocks the points. Continually observe
the traffic on the adjacent track during the work.
Bolt the end position detector to the base plates (see Figure 9).
NOTE
Re-tighten the fastening bolts of the end position detector at least
twice in three- to six-weeks intervals.
Mounting example

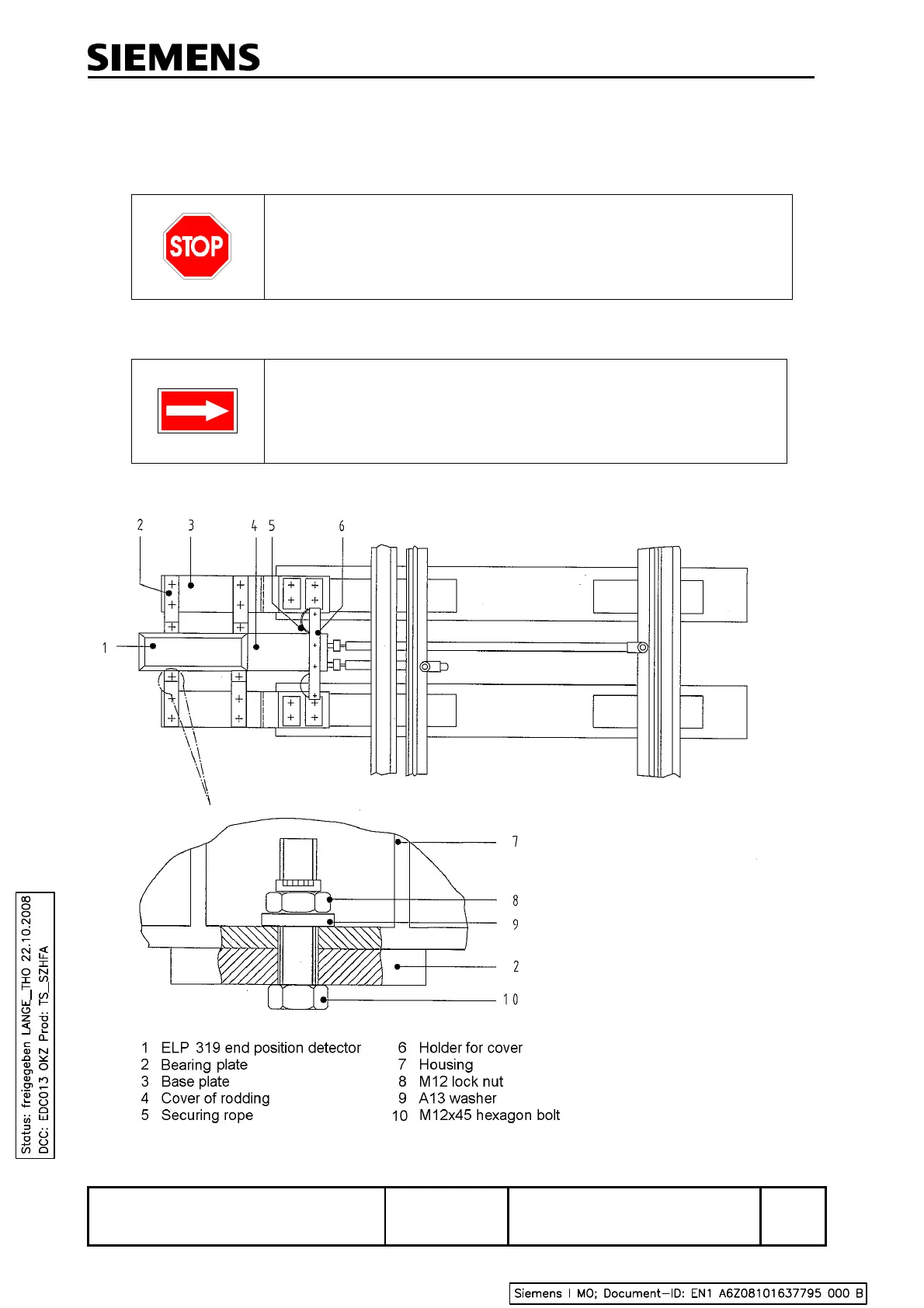

Figure 9 Trackside mounting on base plates
