12.4.4 Removing the Detector Slides

Check the easy movement of the detector slides with the end position detector detached. The

detector slides must be easy to move from one end position to the other by pulling or pushing them

with one hand.

The detector slides 1 (see Figure 19) with guide sleeve 3 must be exchanged in the event of the

following:

•

sluggish movement of the detector slides

•

worn-out guides in the guide sleeve

•

leakiness of the guide sleeve

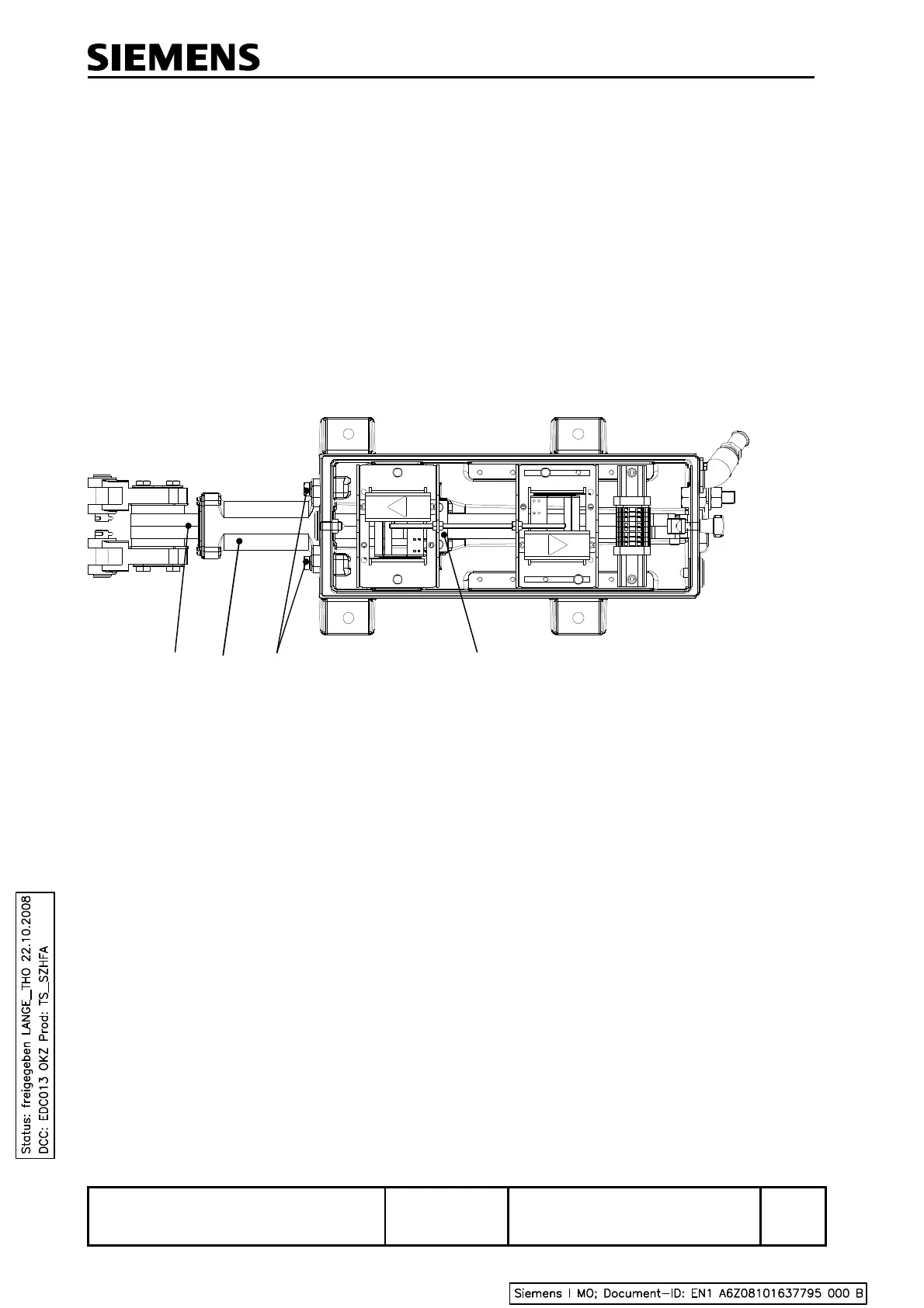

1 Detector slides

2 Guide plate

3 Guide sleeve

4 Fastening bolts

Figure 19 Removing the detector slides

Before removing the detector slides 1, remove the contact arrangements and guide plate 2 (see

Figure 19). Then, undo the fastening bolts 4. Swing the detector slides 1 up to remove them from the

housing of the end position detector. For assembling the detector slides 1, mount all components by

carrying out the same steps in reverse. Perform a functional check as described in Section 12.5 .
