8 Product Description
The ELP 319 end position detector detects the home (end) position of:
•
manually operated points
•
spring return points
•
large-radius points with mid-blade locks
•
movable frogs and wing rails
The ELP 319 end position detector has the following functions:
•
detect the two point blades
•
detect the point opening (continuously adjustable from 30 mm to 190 mm)
•
detect the locking function
•
indicate trailing of points
•
detect gauge narrowing

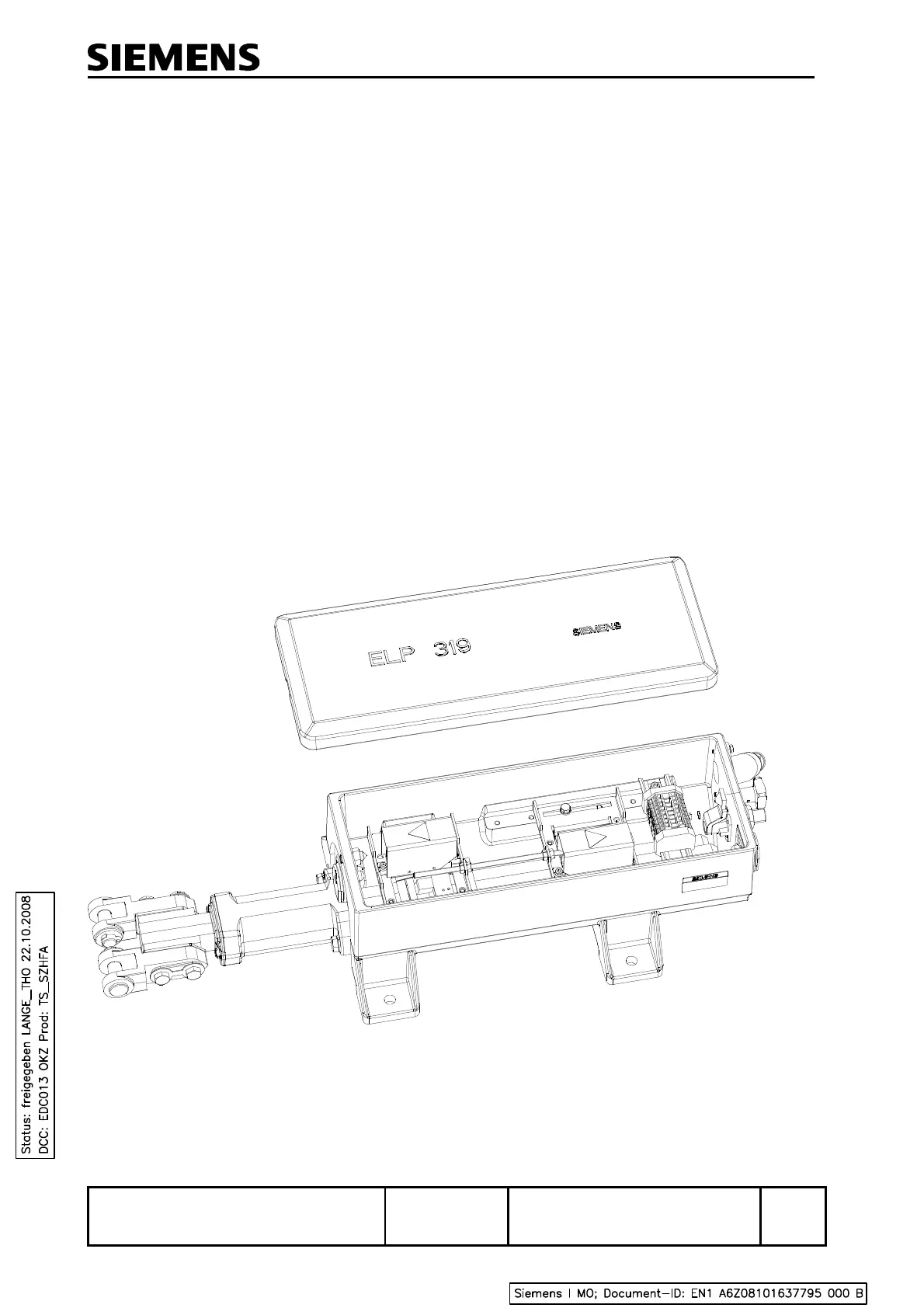

Figure 1 ELP 319 end position detector
