9 Technical Data
Dimensions
• Length (including detector slides)
• Width
• Height
See also Figure 6
731 mm
265 mm
170 mm
Weight Approx. 27 kg
Degree of protection
as per EN 60529
IP54
Electrical data
220 V, 50 Hz; 6 A (cos ϕ = 1)
or 4 A (cos ϕ = 0.8)
Continuous current 16 A
9.1 Dimension Drawings
265
182
170
280300
74
∅ 16 h9
224
13
42
466265

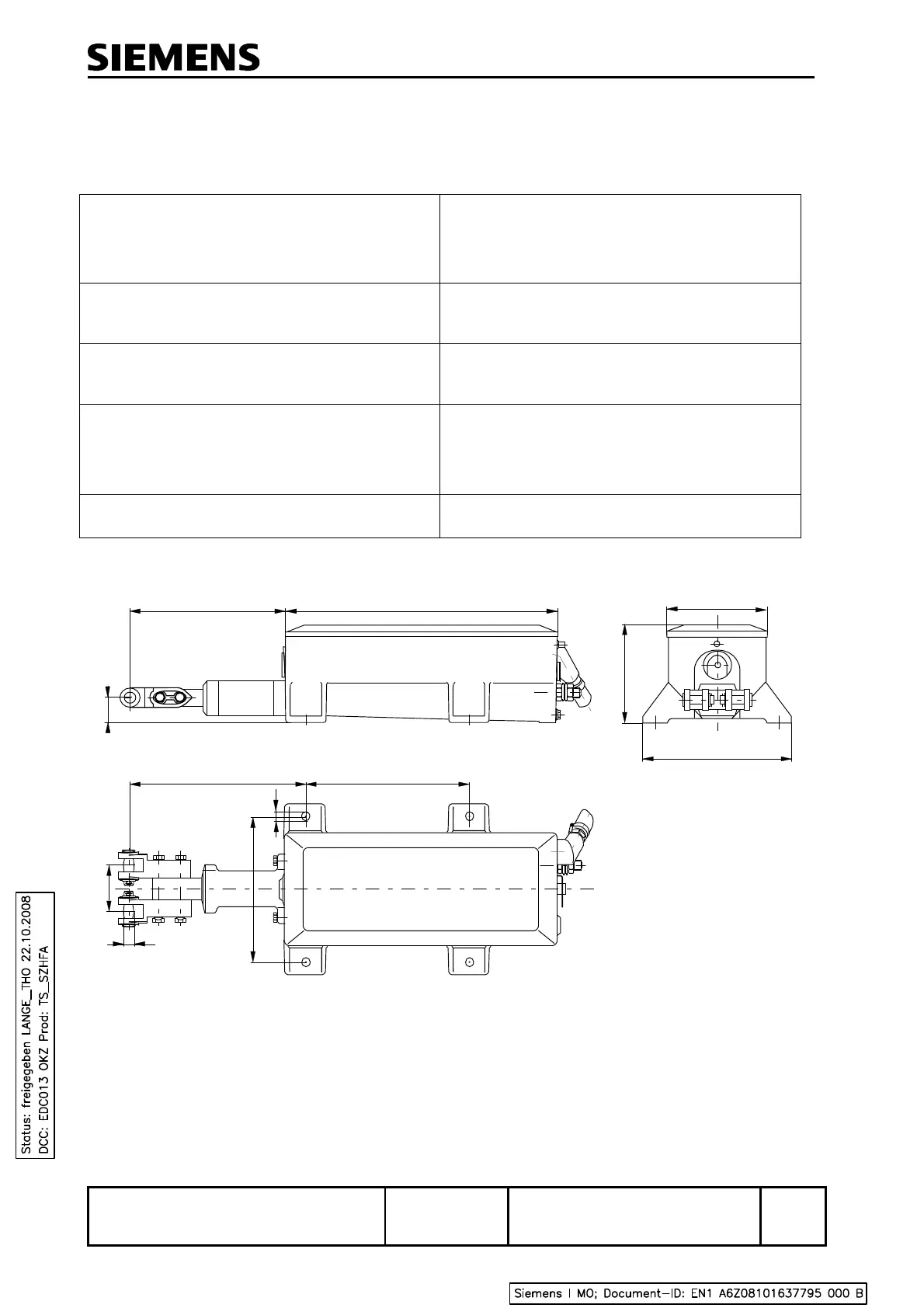

Figure 6 Dimension drawings for side view, plan view and front view
