Industry Mobility
Betriebsanleitung PZENTW A6Z08101637795/EN1/000/B 31
[7620] ELP 319 LANGE_THO A25000-X22-Q9-7-7620 of
DC013 20081022 Notice no.: 500000097465 33
Copyright (C) Siemens AG 1998 All Rights Reserved - 0000ZQ6U.doc
12.4.3 Exchanging the Contact Arrangements
Both the movable and the fixed contact arrangement must be exchanged each time the ELP 319 end
position detector is repaired (see Figure 18).
For removing contact arrangements 2 and 4, remove the fastening bolts 1 and unscrew the wiring 3.
For fitting the contact arrangements, carry out the same steps in reverse. Adjust distance A as
described in Section 10.5 . Once the work has been completed, put the hoods on the sets of contacts
again.
A Distance
1 Fastening bolts
2 Movable contact arrangement
3 Wiring
4 Fixed contact arrangement

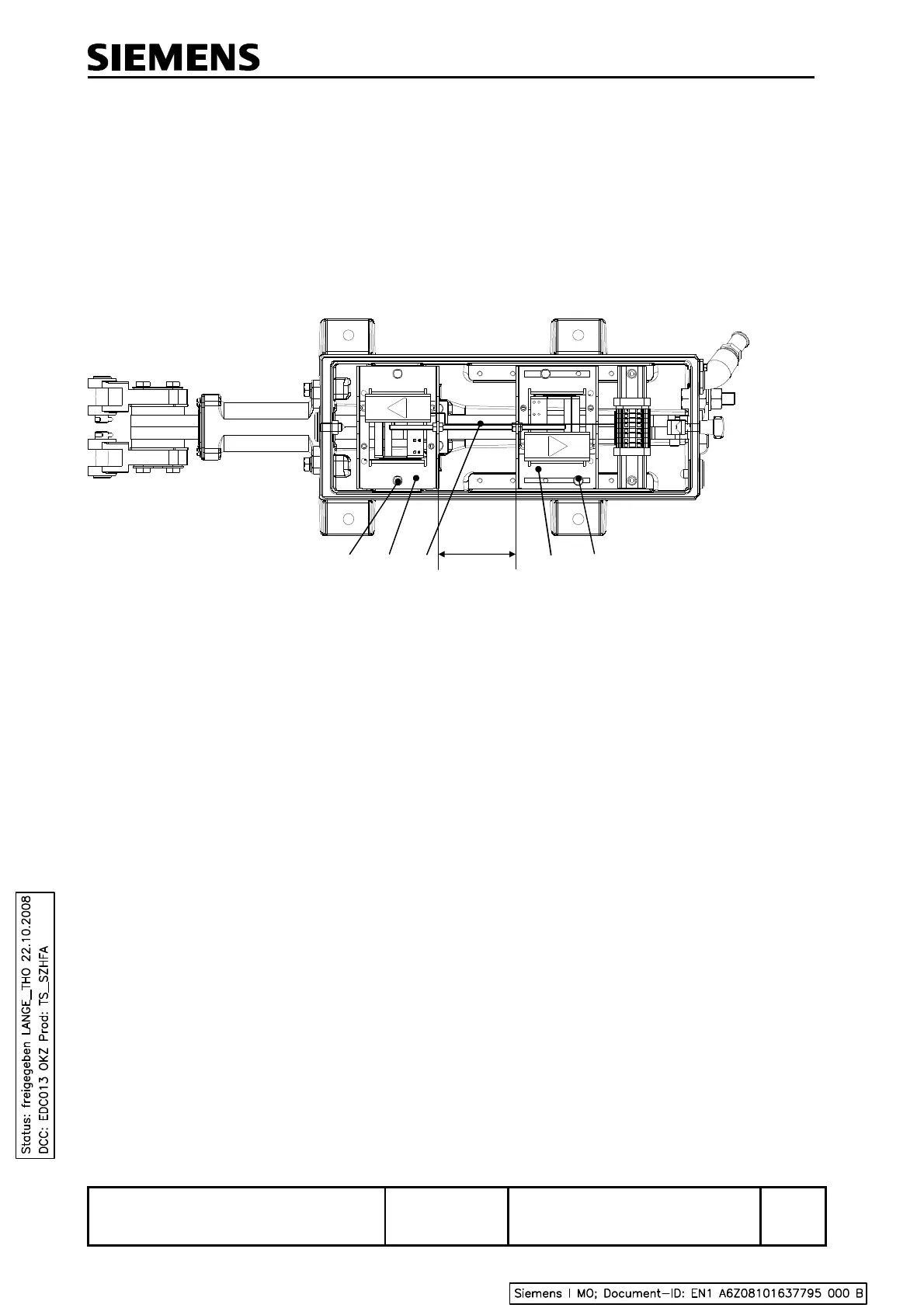

Figure 18 Exchanging the contact arrangements
1
4 2 1
A
