121/213

Building Technologies Basic documentation LMV37.4... CC1P7546en

HVAC Products 21 Operating the AZL2… unit 01.12.2009

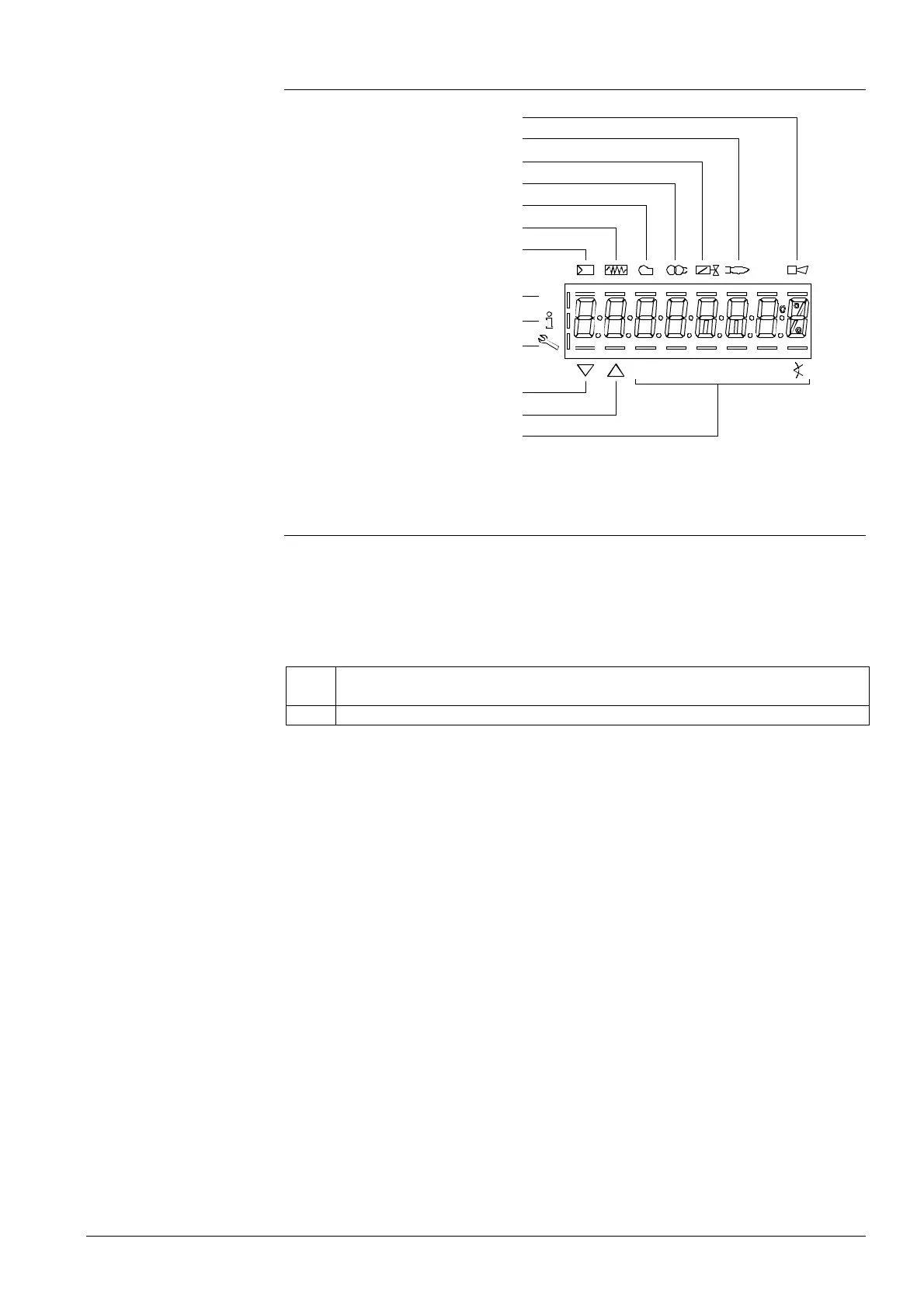

21.2 Meaning of symbols on the display

min

Parameter setting mode

Info mode

Service mode

Actuator closing

Actuator opening

Fan motor controlled

Oil preheater on

Heat request from controllers

Ignition controlled

Valve controlled

Flame present

Fault status message

Unit of current display

7546z09e/0707

Figure 58: Meaning of display

21.3 Brightness of the display

Only available with backlit LCD:

The function of the backlit display is dependent on the type of basic unit used.

The brightness of the display can be adjusted from 0…100% using the parameter 126.

No. Parameter

126 Brightness of display
