22 Operation of basic unit via AZL2…
22.1 Normal display
Normal display is the standard display in normal operation, representing the highest menu level. From the
normal display, you can change to the info, service or parameter level.

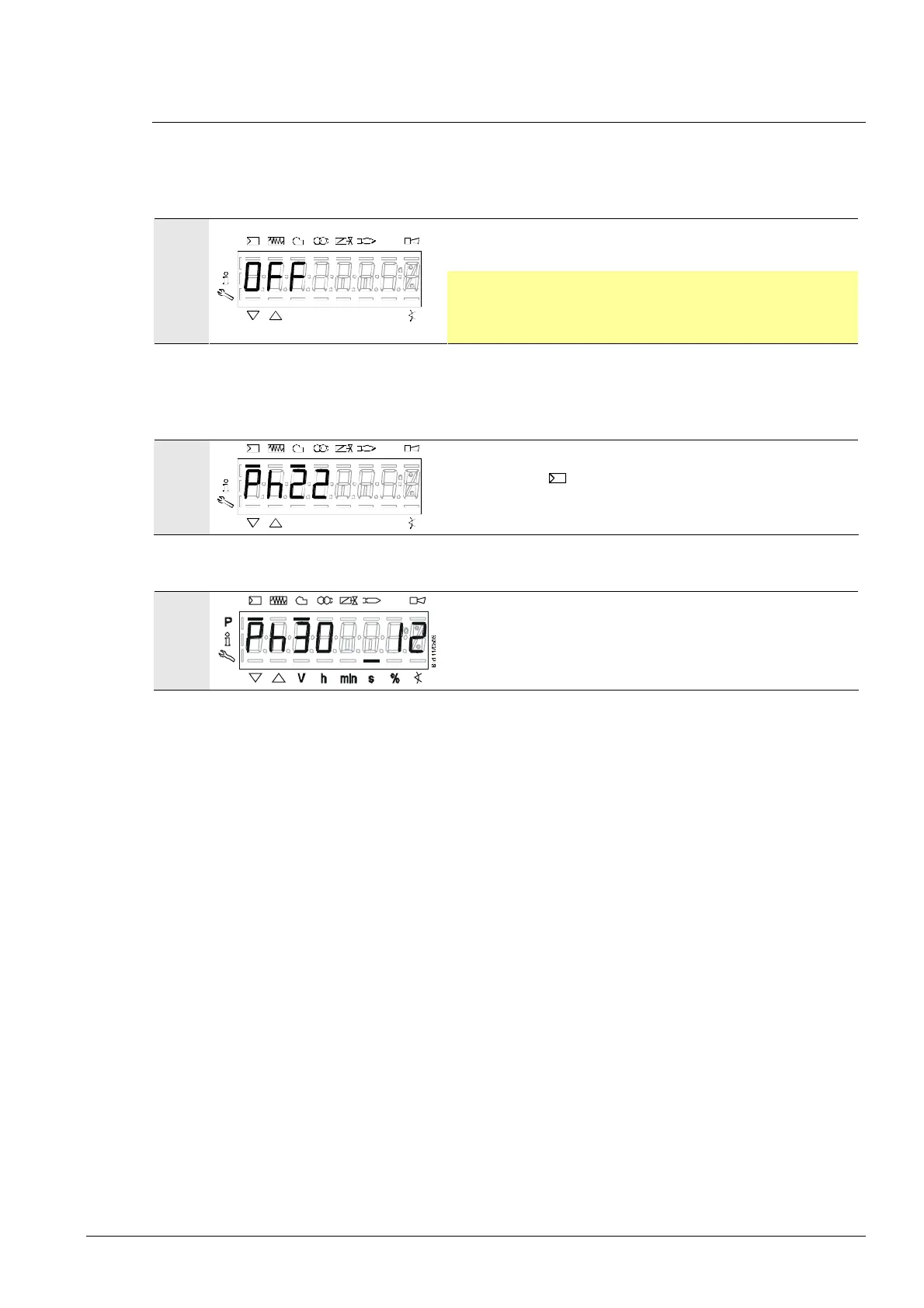

22.1.1 Display in standby mode
Unit is in standby mode.
P
Vhmins%
Bi ld 9 /0707
Note
OFF flashes when the manual OFF function, the manual
output and controller OFF is activated.
22.1.2 Display during startup / shutdown
22.1.2.1. Display of program phases
P
Vhmins%
Bi ld 1 0/0707
The unit is in p
hase 22. The controller calls for heat. The
bar below the
symbol appears. The individual program
phases and controlled components are displayed in accor-
dance with the program sequence.
22.1.2.2. Display of program phase with remaining running time until end of the phase is reached
The unit is in p
hase 30 and shows the remaining running
time in that phase.
Example:
12 s, phase 30
