Siemens LOGO! 230 RC - Deleting a Number of Interconnected Blocks

LOGO! manual
EWA 4NEB 712 6006-02
56
2. Press the OK key.
3. Connect block B01 instead of block B02 directly to output Q01:
Select the BN list, and then press OK.
Select B01, and then press OK.
Result: Block B02 is deleted. Block B01 is now connected directly to the
output instead of block B01.

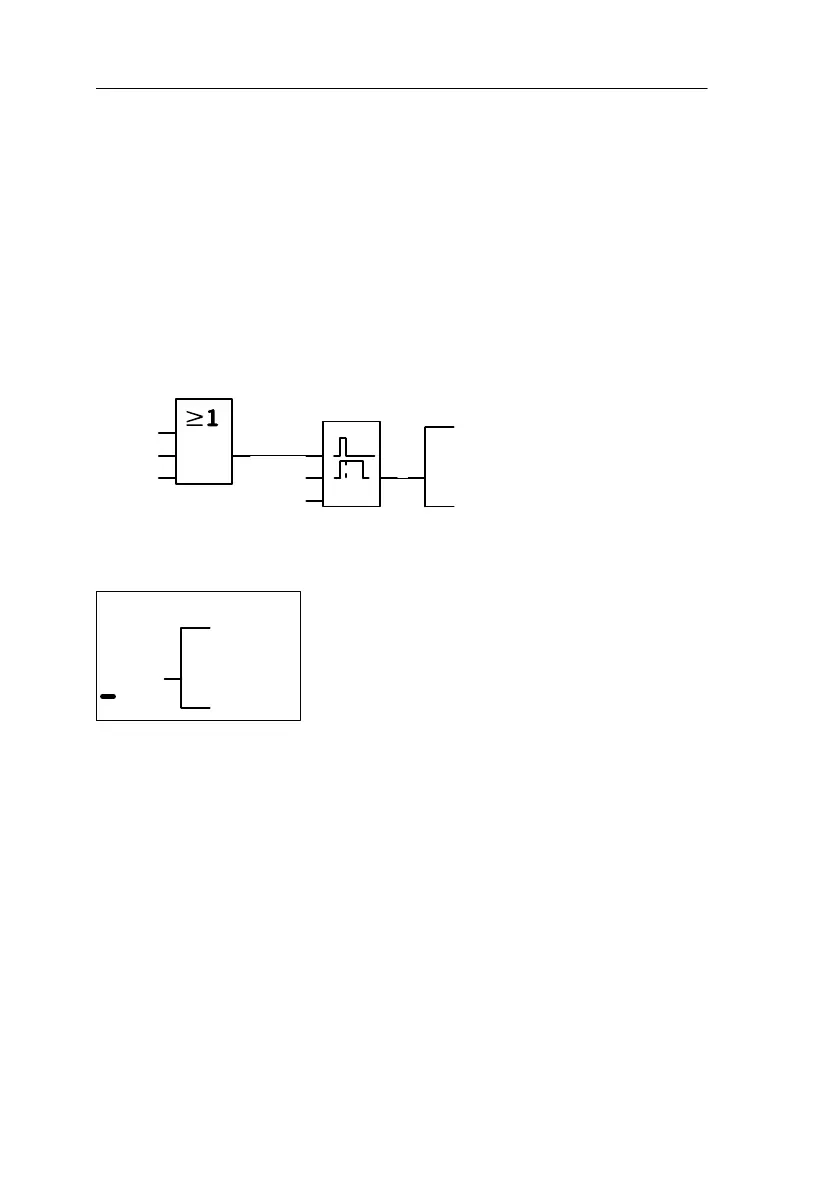

3.11.6 Deleting a number of interconnected blocks
Let’s suppose you want to delete blocks B01 and B02 from the following
program.
Q1
I1
I2
x
x
T
B01
B02
To do this, proceed as follows:
1. Position the cursor at the input of Q1, i.e. under B02:
B02 Q1
2. Press the OK key.
3. Set the connector x instead of block B02 at the Q1 output:
Select the Co list, and then press OK.
Select x, and then press OK.
Result: Block B02 is now deleted, and all blocks that are connected to it
are deleted with it (i.e. block B01 in the example).
Programming LOGO!
