Siemens LOGO! 230 RC User Manual

45
LOGO! manual
EWA 4NEB 712 6006-02

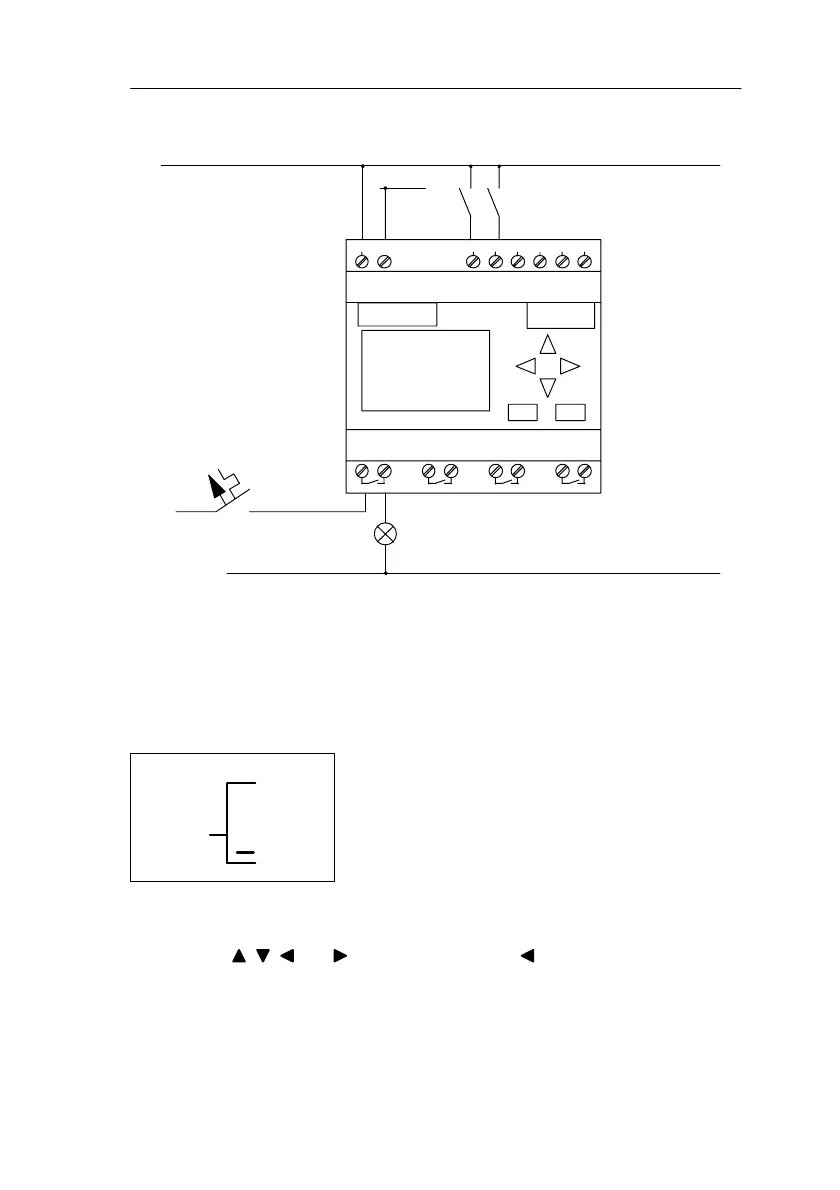

The wiring is as follows:
L1N I1I2I3I4I5I6
Q1 Q2 Q3 Q4
SIEMENS
L1
N
S1
S2
L
N
Switch S1 acts on input I2, and switch S2 acts on input I2. The consumer
is connected to relay Q1.
3.11.3 Editing the program
Let’s enter the program now (from the output to the input). Initially,
LOGO! displays the output:
LOGO!’s first output
Q1
The Q of Q1 is underlined. This underlining is the cursor. The cursor indi-
cates your current position in the program. You can move the cursor by
pressing the , , and keys. Now press the key. The cursor moves
to the left.
Programming LOGO!

Siemens LOGO! 230 RC Specifications

General

Inputs	8 digital inputs
Outputs	4 relay outputs
Input voltage type	AC
Width	72 mm
Height	90 mm
Depth	55 mm
Number of analog inputs	0
Number of analog outputs	0
Operating temperature	0 °C to 55 °C
Storage temperature	-40 °C to 70 °C
Protection class	IP20
Digital inputs according to EN 61131-2	Type 1
Weight	approx. 210 g
Program Memory	400 function blocks
Dimensions	72 mm x 90 mm x 55 mm
