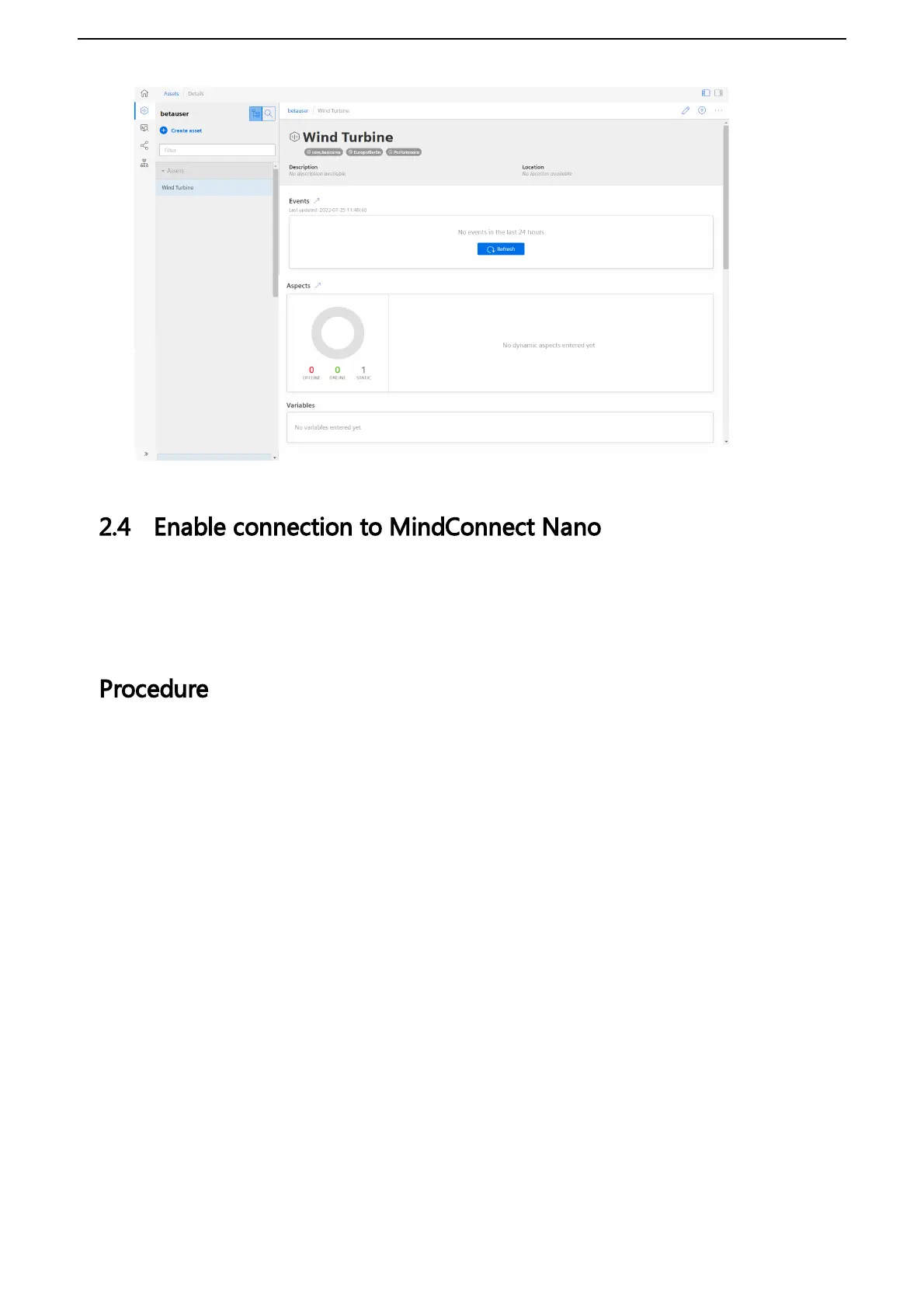

Overview of onboarding MindConnect Nano
2.4 Enable connection to MindConnect Nano
MindConnect Nano
System Manual 7/2023
12
11
13
Table of Contents
Table of Contents
3
Introduction
6
Overview of Mindconnect Nano
6
Overview of Onboarding Mindconnect Nano
9
Logging in to Insights Hub
10
Creating an Asset for Mindconnect Nano
10
Enable Connection to Mindconnect Nano
12
Configuring Network Settings
13
Configuring Diagnostic Settings
15
Transferring Configuration to Mindconnect Nano
20
Configuring Data in Asset Manager
22
Configuring Data in Asset Manager for Mindconnect Nano
22
Creating an Aspect and Variables for Mindconnect Nano
22
Creating a Type in Asset Manager for Mindconnect Nano
22
Adding a Data Source for Mindconnect Nano
23
Adding Data Points for Mindconnect Nano
28
Mapping an Aspect to a Data Source for Mindconnect Nano
30
Browsing Datapoint of a Data Source for Mindconnect Nano
33
Importing Data Source Configurations for Mindconnect Nano
35
Configuring Mindconnect Nano Using API
37
Configuring Protocols
41
Overview of Supported Protocols for Mindconnect Nano
41
Overview of S7 Protocol for Mindconnect Nano
41
Overview of OPC UA Protocol for Mindconnect Nano
48
Overview of Modbus TCP Protocol for Mindconnect Nano
58
Overview of Modbus RTU Protocol for Mindconnect Nano
64
Overview of SYSTEM Protocol for Mindconnect Nano
71
Overview of Rockwell Protocol for Mindconnect Nano
85
Firmware Update for Mindconnect Nano
89
Manual Firmware Update of Mindconnect Nano
89
Firmware Update in Asset Manager for Mindconnect Nano
90
Automatic Firmware Update of Mindconnect Nano
92
Remote Functions
94
Remote Restart for Mindconnect Nano
94
Send Commands for Mindconnect Nano
94
Troubleshooting
99
Appendix
110
User Roles and Scopes for Mindconnect Nano
110
Using Quality Code
111
Quality Codes OPC UA and S7 Protocol
112
Quality Codes Modbus Protocol
114
Quality Codes SYSTEM Protocol
115
Quality Codes Rockwell Protocol
115
Offline Buffer
117
Read Performance Mindconnect Elements
117
Firewall Settings
119
Return of Defective Hardware
120
List of Abbreviations
121
Mindconnect Ethernetip - CIP Communication Path
122
Case 1 - Accessing Data Inside an Allen- Bradley PLC
122
Case 2 - Accessing the Allen- Bradley PLC Via Integrated Ethernet
123
Case 3 - Accessing the Allen- Bradley PLC Via the Controlnet Interf
124
