Radiation Calculation
Operator Manual
SPR8-230.621.01.03.02
60 of 106

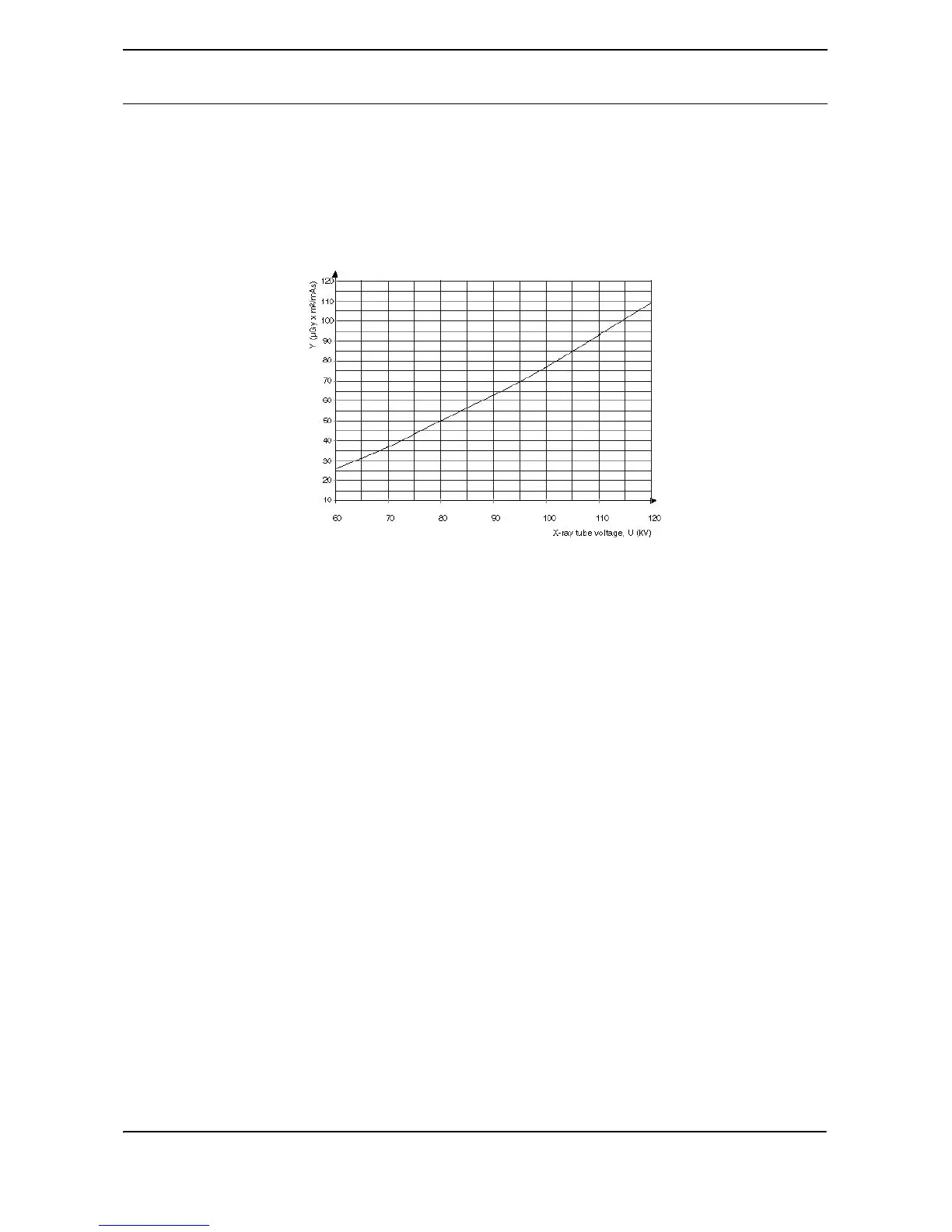

Diagram 1 shows the values of Y (µGy x m
2
/mAs) for tube voltage range 60-120
kV. The value of Y can be considered a conversion factor to determine the radia-
tion dose area product (DAP). The diagram shows the maximum values of Y for
the MOBILETT family. This implies that in most cases the estimated DAP is
somewhat higher than the actual DAP.
Diagram 1
