Functional description
MOBILETT
SPR8-230.621.01.03.02 25
of 106

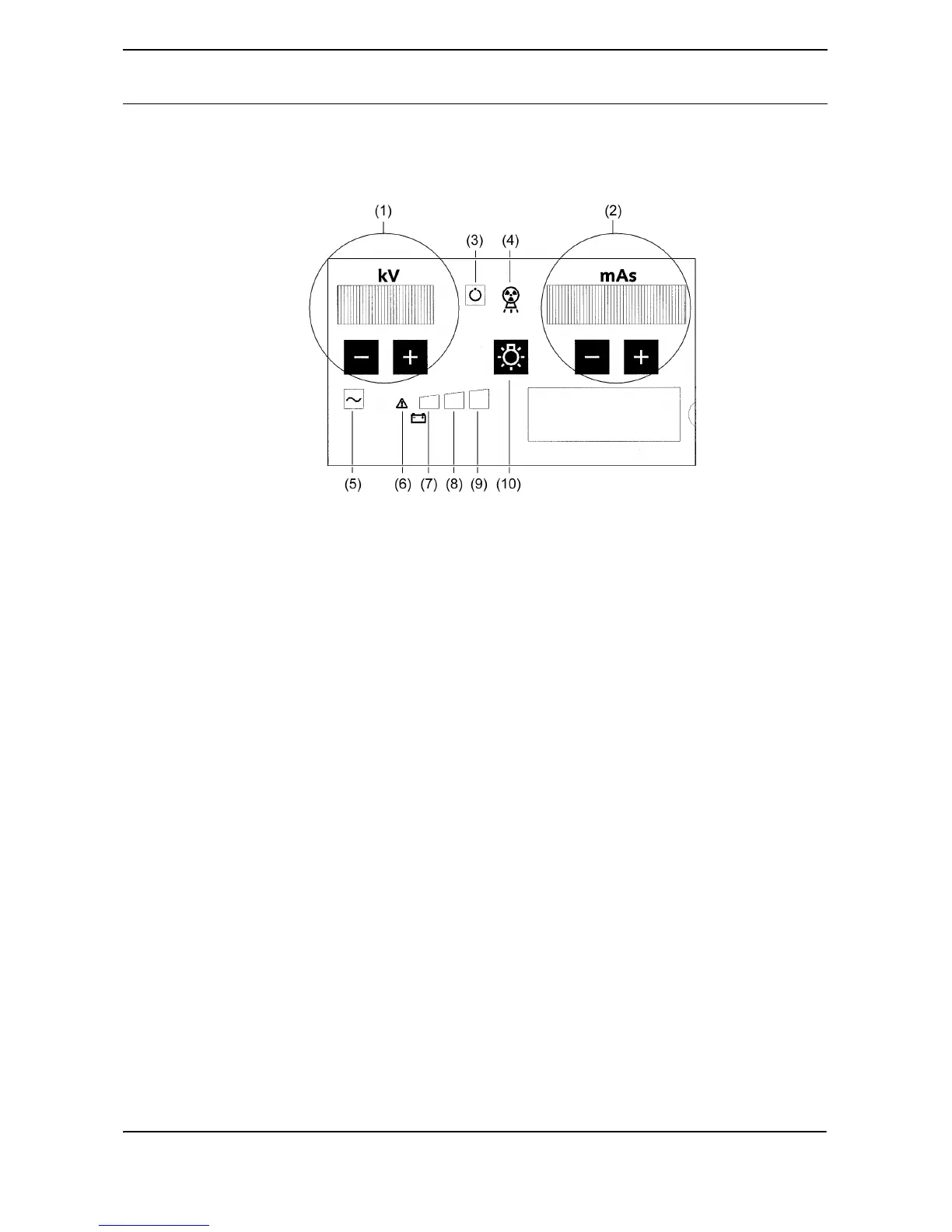

Control and display panel
(1) kV display and kV adjust buttons for increase (+) and reduction (-)
(2) mAs display and mAs adjust buttons for increase (+) and reduction (-)
(3) LED Display “ ready for operation” (GREEN)
(4) LED Display “ Exposure” (YELLOW)
(5) LED Display “ Mains power operation” (YELLOW)
(6) Battery indicator “ Error” (RED)
(7) Battery charge indicator “ Low” (YELLOW)
(8) Battery charge indicator “ Medium” (YELLOW)
(9) Battery charge indicator “ Full” (YELLOW)
(10) Collimator light button
