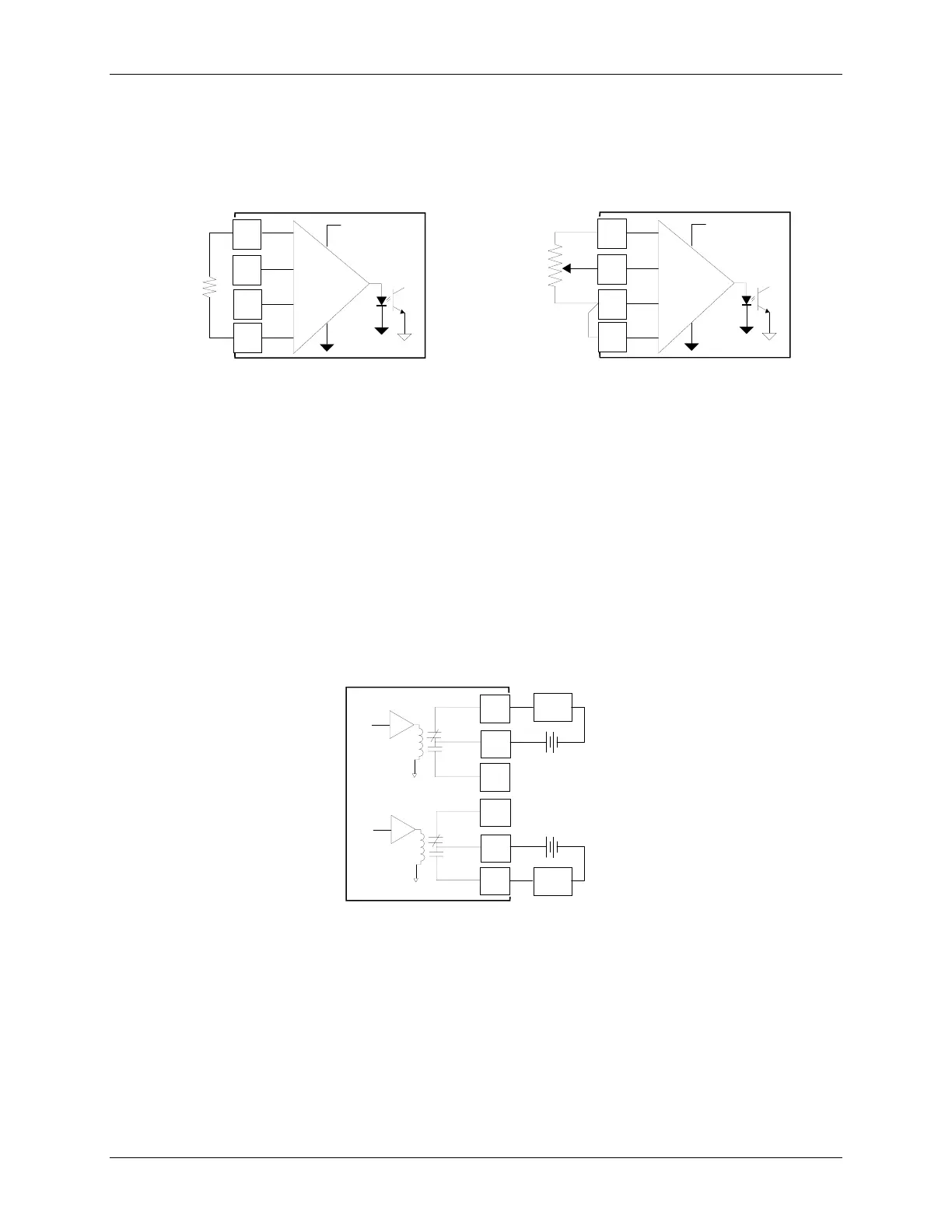

8.4.7 Ohms and Slidewire Input Wiring
Function blocks AINU1 and AINU2 can be configured for ohm or slidewire inputs. Figures 8-19 and 8-20 show
the needed connections.
45
46
47
48
Controller Circuitry
Isolated
Power
Isolated
Ground
Universal
Converter,
Isolated
Inputs
Note: See Table 8.1 for AINU2 terminals.
Ohms
Source
X03119S1
Controller Terminals
45
46
47
48
Controller Circuitry
Isolated
Power
Isolated
Ground
Universal
Converter,
Isolated
Inputs
Note: See Table 8.1 for AINU2 terminals.
Position
Slidewire
X03113S1
Jumper
Controller Terminals
FIGURE 8-19 Universal Analog Input AINU1,
Ohms Input
FIGURE 8-20 Universal Analog Input AINU1,
Slidewire Input
8.4.8 Relay Output Wiring
Function blocks ROUT1 and ROUT2 are located on the I/O Expander board. They provide two single-pole,
double-throw relay outputs, as shown in Figure 8-21. Relay contact ratings are stated in Section 14.6.
The load connected to a closed contact should draw a current between the minimum and maximum contact ratings.
A resistive load is recommended. An inductive or capacitive load can cause high peak currents or contact arcing
which can pit or otherwise damage contacts. The arcing associated with an inductive load can be limited by
connecting a voltage transient suppressor, such as a 1N4005 diode, across the load.
FIGURE 8-21 Universal Relay Outputs ROUT1 and 2, Resistive Load
8.4.9 Local Instrument Link Wiring
The Local Instrument Link (LIL) is a high performance digital data link that carries commands and responses
between user-selected stations. Each station must be identified by a unique link address. This address permits
commands and responses to be sent from one station to another specific station. Lower link addresses are 1 through
32. A Model 321 Expansion Satellite is used to add an upper link with addresses 33 through 64. In the Moore 353,
the Station address is entered as the ADDRESS parameter in the STATN function block. Specific instructions for
27
28
Model 353
Rear Terminals
29
Controller Circuitry
X03120S0
NC
NO
30
31
32
NC
NO
ROUT1
ROUT2
Load
Load
+
_
+
_
External
Power
Supply
