Reagent Pump
c. Connect the rubber connector to the manifold. Push firmly into
position.
d. Refer to Figure 3-14 to make sure the tubes are fitted correctly.

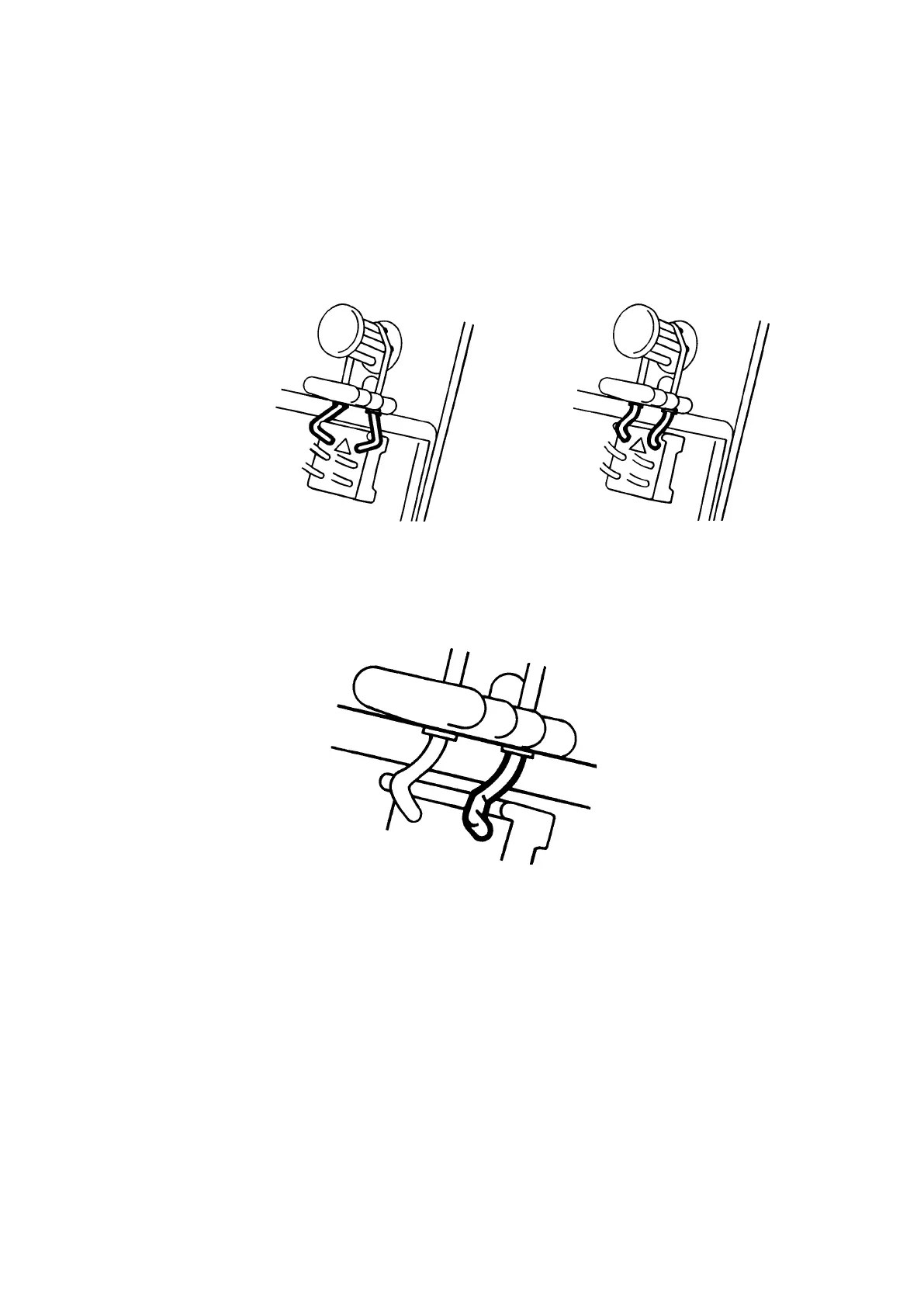

Figure 3-14. Reagent Pump Tubing Correctly Installed
4. Make sure none of the pump tubes are kinked or twisted, refer to
Figure 3-15.
Figure 3-15. Example of Twisted Tube
5. Replace the reagent bottles, lower the front cover and restart the
248 system.
6. Prime the 248, Page 3-9.
Page 3-16 248 Operator’s Manual
✔
✗
