Installation
5.2 Installing a switch
SCALANCE X-300
Operating Instructions, 05/2016, A5E01113043-20
113

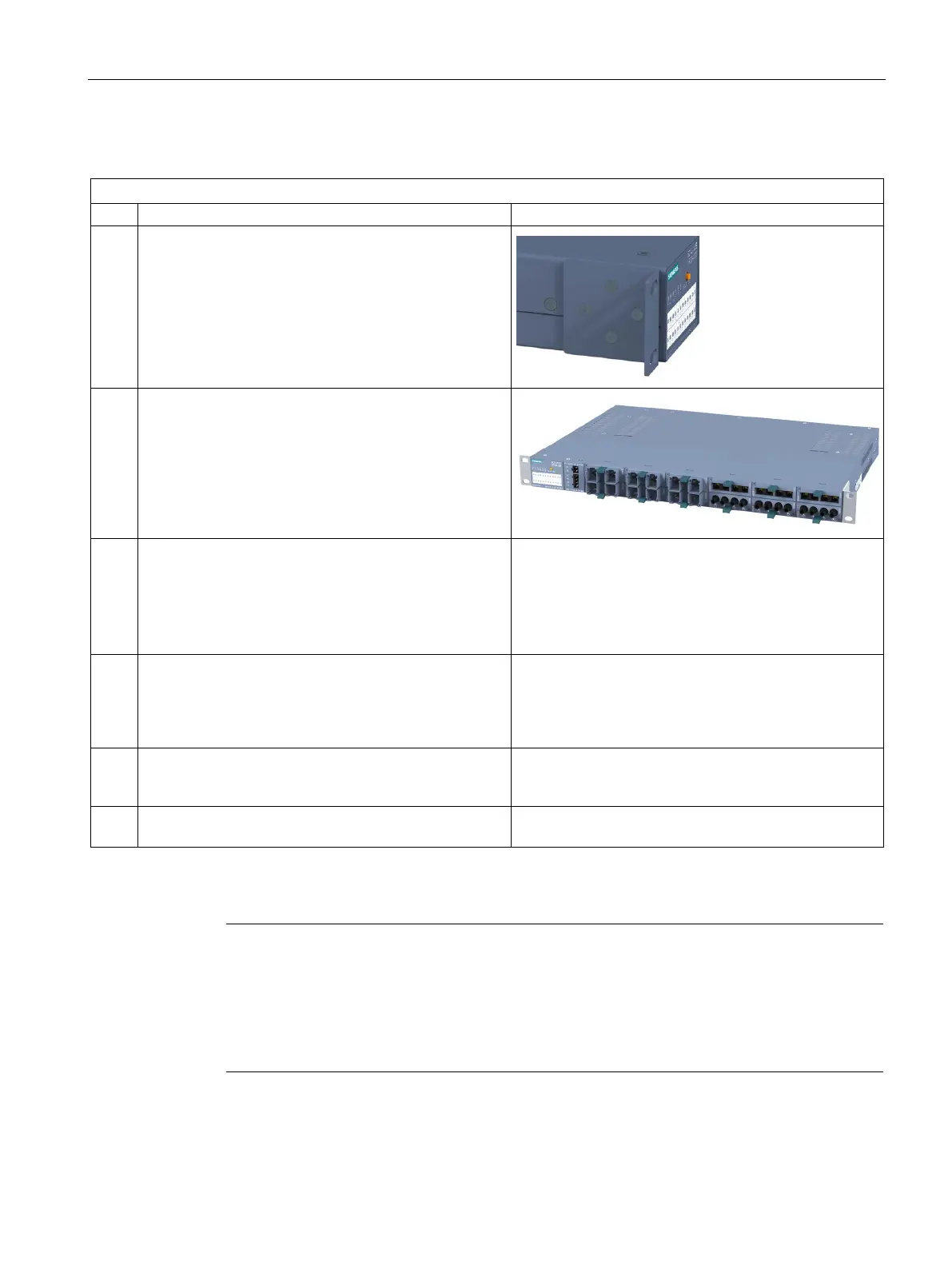

19" rack mounting with normal orientation
Select the required rack device (R) and the 19" cabinet.
2. Fix the two mounting brackets with 4 screws each to the
sides of the housing. The maximum tightening torque for
these screws is 0.5 Nm.
CAUTION: If you install a rack device (R) with compo-
nents inserted.
The locking mechanisms of components installed in the
rack device (R) (for example the handles of media mod-
ules or the clips on the SFP) must be closed.
See also installation of modular devices:
- Installing media modules in a slot
- Installing an SFP in an SFP media module.
3. Insert the rack device (R) in the 19" cabinet and hold the
rack device (R) at the required height. Make sure that
nothing is obstructing air from entering the ventilation
grilles.
Fit the securing screws to the two mounting brackets to
secure the rack device (R) in the 19" cabinet.
4. Connect the grounding bolts. On the SCALANCE X-
300EEC, the PE connector is on the bottom of the de-
vice. On the SCALANCE XR-300M EEC, the PE con-
nector is on the rear of the device between the power
5. Fit the connectors for the power supply.
Note that the SCALANCE X-300 is available for different
power supplies (100 to 240 VAC and 24 VDC variants).
6. Fit the remaining connectors, for example the signaling
Example of individual installation
Note
Individual installation of the SCALANCE XR-300M
Devices of the XR
-300M category can also be installed upright in a cabinet door. In this
case, the LED display is at the front and the data cable outlet at the back at the cabinet door.
Make sure that the mounting bracket is correctly pos
itioned on the rack device (R) so that
the rack device (R) can be mounted securely on the cabinet door.
