Installation
5.2 Installing a switch
SCALANCE X-300
Operating Instructions, 05/2016, A5E01113043-20
115
19" rack mounting - X-300EEC product group
The X-300EEC can be installed in a rack singly or as pairs.
● Mounting singly:
To do this, an X-300EEC device is secured to a plate and screwed into the 19" rack.
● Mounting as pairs:
Here, two X-300EEC devices are fastened together with plates before installation in the
rack:
– 1 plate as middle section (6 screws)
– 2 plates on the outside (3 screws each)
You will find dimension drawings of the plates in section X-300EEC dimension
drawings (Page 294).

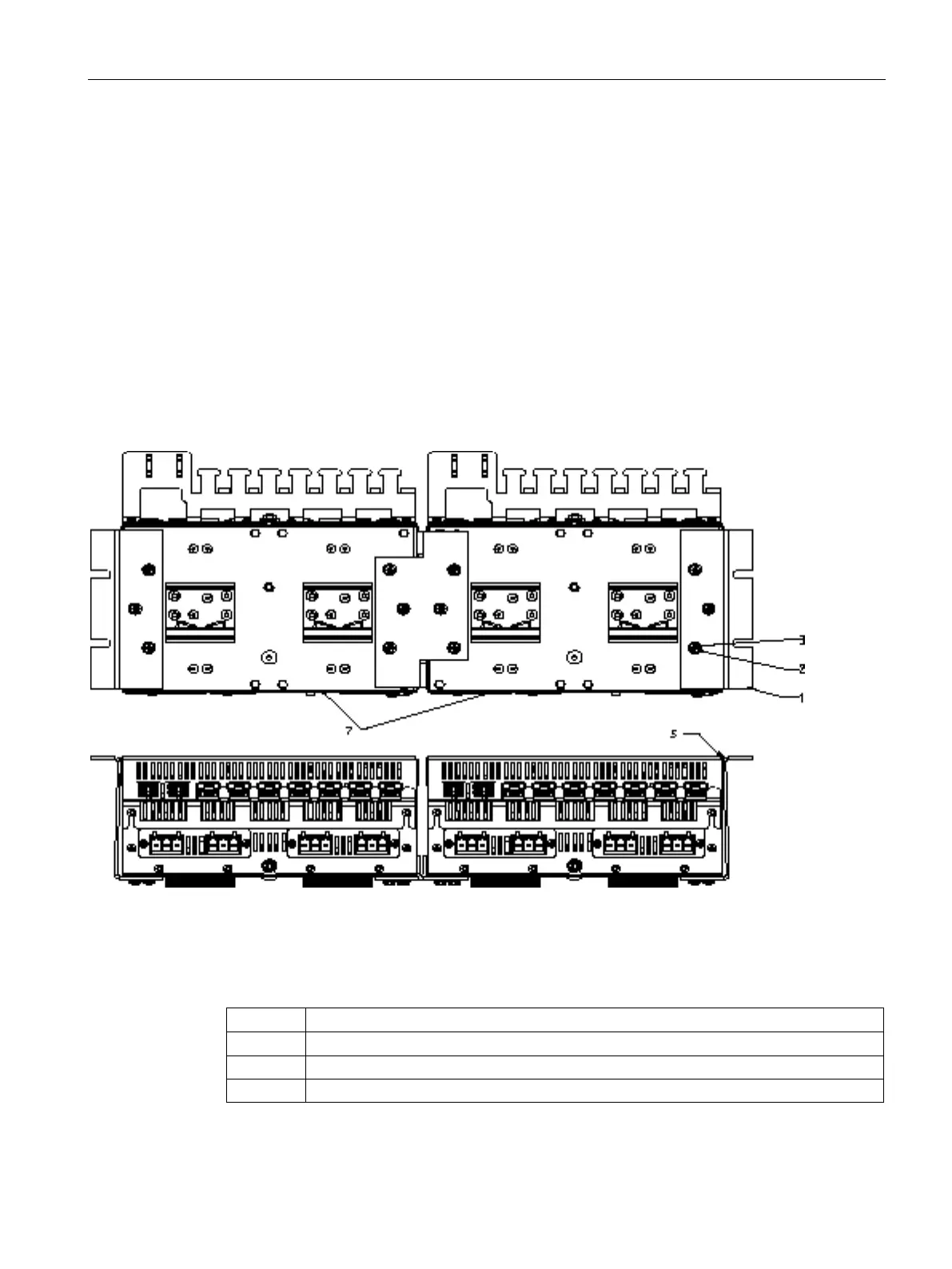

Image 5-4 Rack mounting of two IE-Switches X-300EEC fastened together
Figure at top: Rear of the switches
Figure at bottom: View from below
Table 5- 3 Legend for rack mounting of two IE-Switches X-300EEC fastened together
