11.8 X-300M PoE dimension drawings
SCALANCE X-300
306 Operating Instructions, 05/2016, A5E01113043-20
11.8
X-300M PoE dimension drawings
All dimensions in the drawings are in millimeters.

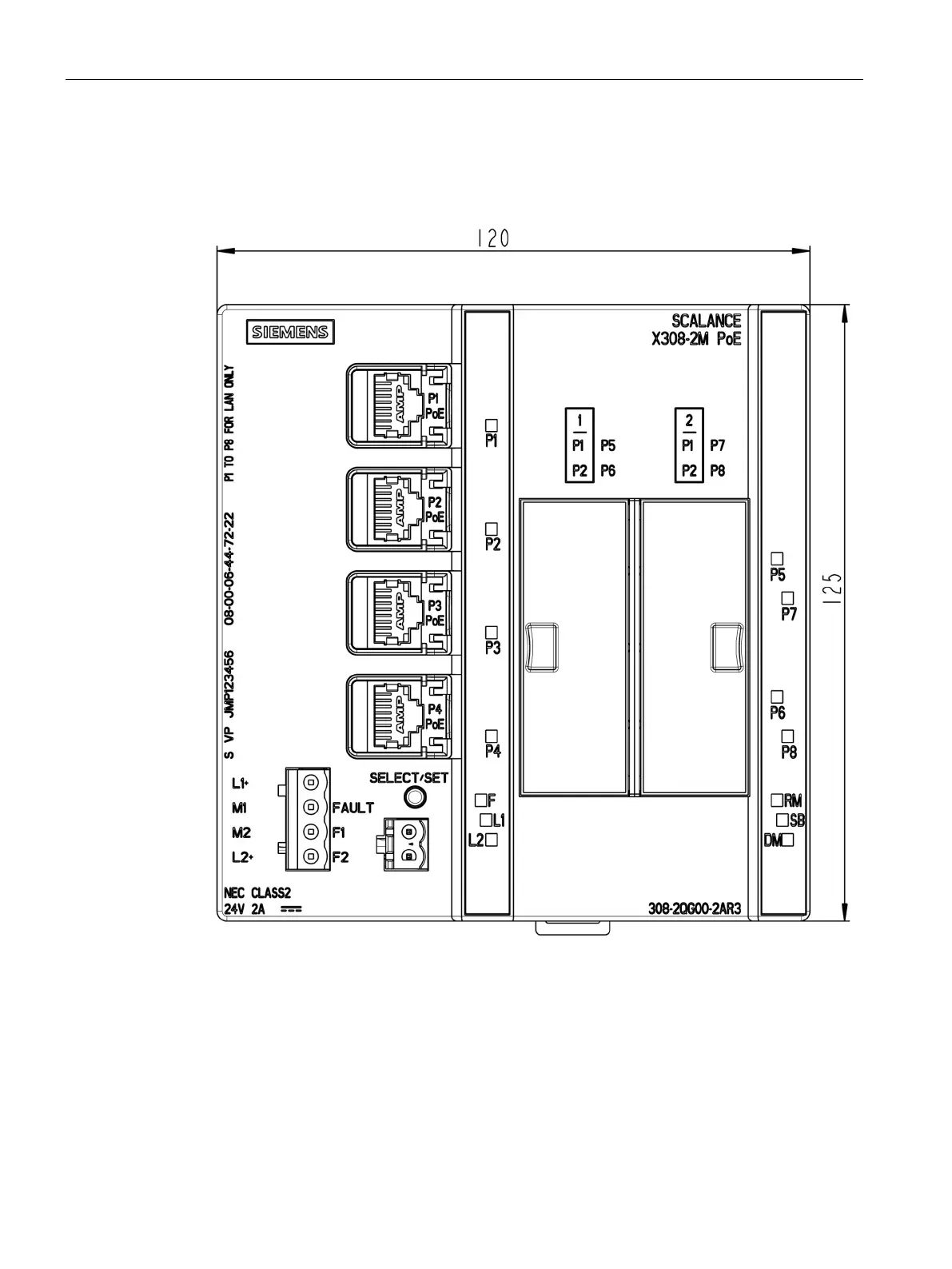

Image 11-30 X308-2M PoE: Front view
