Analog input module F-AI 4xI 0(4)..20mA 2-/4-wire HF (6ES7136-6AA00-0CA1)
16 Manual, 08/2018, A5E41448857-AB
Connecting
3
3.1
Wiring and block diagram
This section provides the block diagram of the F-AI 4xI 0(4)..20mA 2-/4-wire HF analog input
module with the terminal assignment.
You can find additional information about wiring BaseUnits in the Distributed I/O System ET
200SP (http://support.automation.siemens.com/WW/view/en/58649293) System Manual.

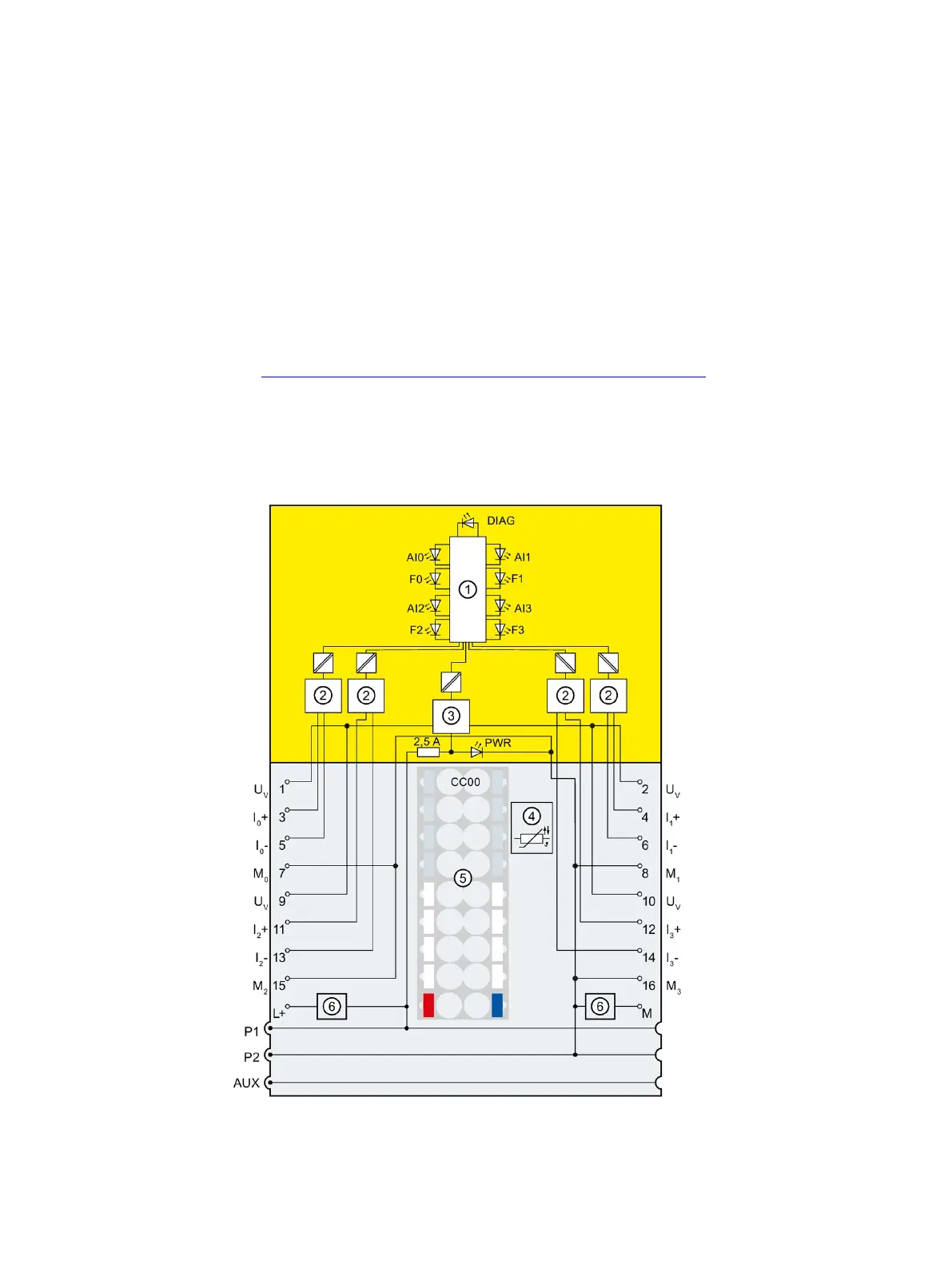

Block diagram
The following figure shows the block diagram of the F-AI 4xI 0(4)..20mA 2-/4-wire HF analog
input module on the BaseUnit BU type A0/A1.

Siemens SIMATIC ET 200SP F-AI 4xI 0(4) 20mA 2-/4-wire HF Series Specifications

General

Input channels	4
Wiring type	2-/4-wire
Series	SIMATIC ET 200SP
Supply voltage	24 V DC
Rated value (DC)	24 V
Power loss, typ.	1.5 W
Interference voltage suppression for interference frequency f1 in Hz	50/60 Hz
Diagnostics function	Yes
Galvanic isolation	Yes
Potential separation channels	Yes
Potential separation between the channels and backplane bus	Yes
Module type	AI
Safety integrity level	SIL 3
Connection method	Push-in terminals
Operating voltage	24 V DC
Weight	200 g
Input current range	0(4)..20 mA
Product type designation	F-AI 4xI 0(4)..20mA 2-/4-wire HF
Analog value generation for the inputs	16 bits
Resolution	16 bit
Integration time/resolution per channel	Configurable
