Analog input module F-AI 4xI 0(4)..20mA 2-/4-wire HF (6ES7136-6AA00-0CA1)
8 Manual, 08/2018, A5E41448857-AB
Documentation guide
1

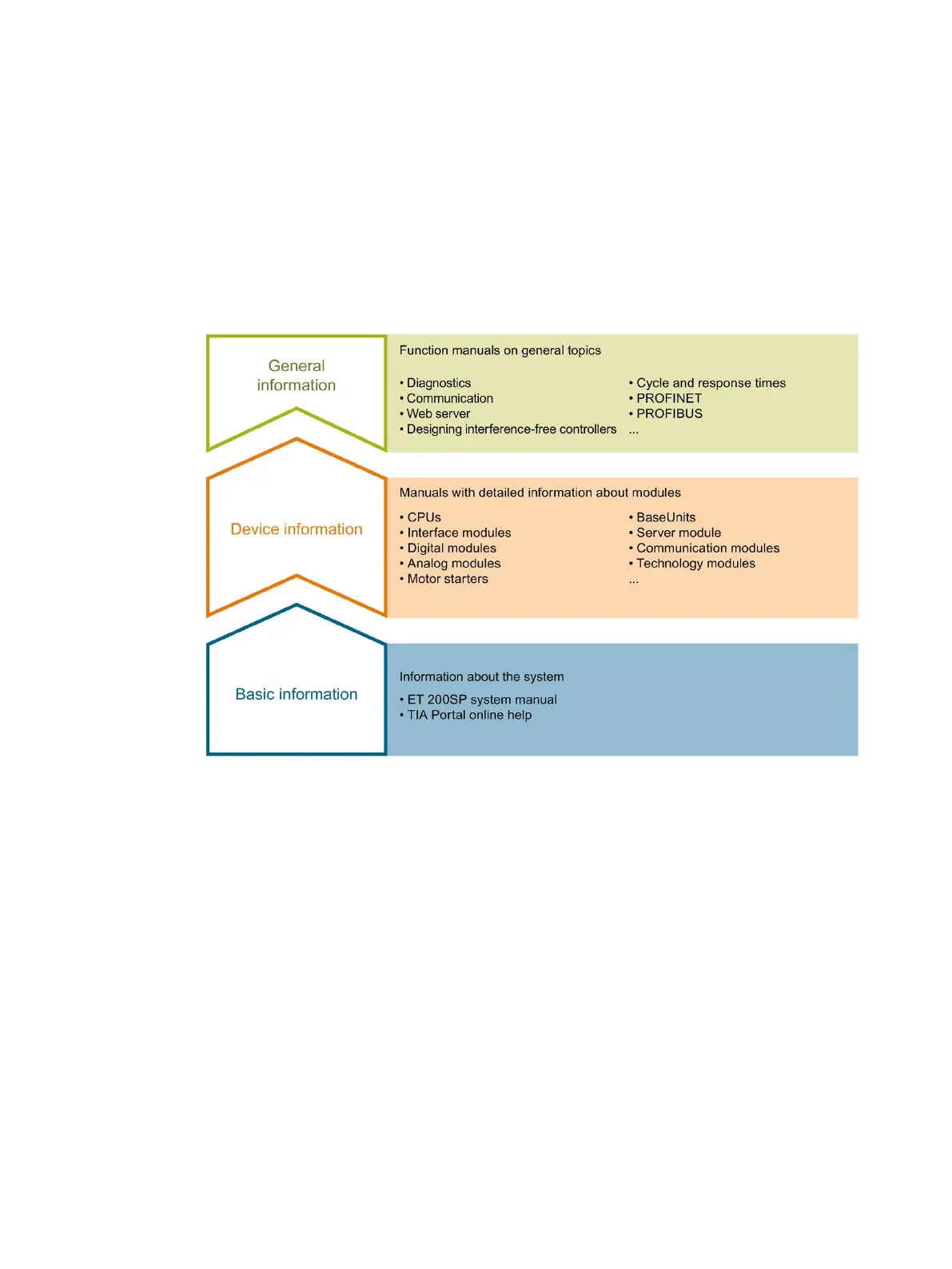

The documentation for the SIMATIC ET 200SP distributed I/O system is arranged into three
areas.
This arrangement enables you to access the specific content you require.
Basic information
The system manual describes in detail the configuration, installation, wiring and
commissioning of the SIMATIC ET 200SP. distributed I/O system. The STEP 7 online help
supports you in the configuration and programming.
Device information
Product manuals contain a compact description of the module-specific information, such as
properties, wiring diagrams, characteristics and technical specifications.

Siemens SIMATIC ET 200SP F-AI 4xI 0(4) 20mA 2-/4-wire HF Series Specifications

General

Input channels	4
Wiring type	2-/4-wire
Series	SIMATIC ET 200SP
Supply voltage	24 V DC
Rated value (DC)	24 V
Power loss, typ.	1.5 W
Interference voltage suppression for interference frequency f1 in Hz	50/60 Hz
Diagnostics function	Yes
Galvanic isolation	Yes
Potential separation channels	Yes
Potential separation between the channels and backplane bus	Yes
Module type	AI
Safety integrity level	SIL 3
Connection method	Push-in terminals
Operating voltage	24 V DC
Weight	200 g
Input current range	0(4)..20 mA
Product type designation	F-AI 4xI 0(4)..20mA 2-/4-wire HF
Analog value generation for the inputs	16 bits
Resolution	16 bit
Integration time/resolution per channel	Configurable
