Siemens SIMATIC ET 200SP F-AI 4xI 0(4) 20mA 2-/4-wire HF Series User Manual

Parameters/address space
4.3 Explanation of parameters
Analog input module F-AI 4xI 0(4)..20mA 2-/4-wire HF (6ES7136-6AA00-0CA1)
Manual, 08/2018, A5E41448857-AB
27
4.3.2.7
Parameter assignment of discrepancy analysis for 1oo2 evaluation
Operating principle of discrepancy analysis
A discrepancy analysis is performed with a configured 1oo2 evaluation.
Smoothed
process
values are used for the discrepancy analysis.
An assignable tolerance window is formed around the process value that represents the
instantaneous standard value (value that is signaled to the F-CPU).
The tolerance window is formed relative to the process value or as an absolute value relative
to the measuring range end value. Relative and absolute tolerance windows are combined.
If the process value does not represent the standard value at an instant and is within the
tolerance window,
no
discrepancy exists.

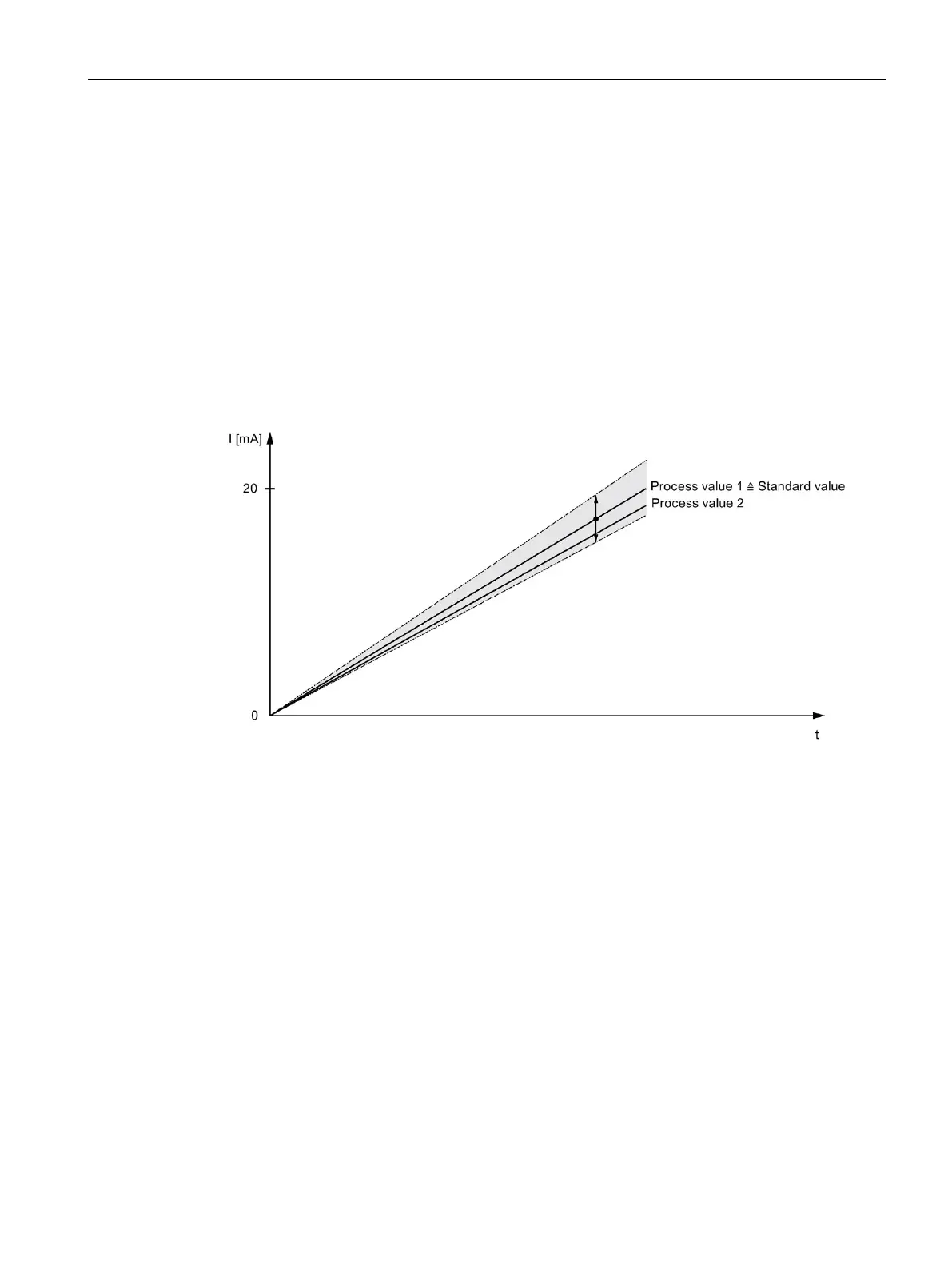

Figure 4-1 Example of a relative tolerance window
without discrepancy (parameter assignment:
standard value = MAX)

Siemens SIMATIC ET 200SP F-AI 4xI 0(4) 20mA 2-/4-wire HF Series Specifications

General

Input channels	4
Wiring type	2-/4-wire
Series	SIMATIC ET 200SP
Supply voltage	24 V DC
Rated value (DC)	24 V
Power loss, typ.	1.5 W
Interference voltage suppression for interference frequency f1 in Hz	50/60 Hz
Diagnostics function	Yes
Galvanic isolation	Yes
Potential separation channels	Yes
Potential separation between the channels and backplane bus	Yes
Module type	AI
Safety integrity level	SIL 3
Connection method	Push-in terminals
Operating voltage	24 V DC
Weight	200 g
Input current range	0(4)..20 mA
Product type designation	F-AI 4xI 0(4)..20mA 2-/4-wire HF
Analog value generation for the inputs	16 bits
Resolution	16 bit
Integration time/resolution per channel	Configurable
