Siemens SIMATIC ET 200SP F-AI 4xI 0(4) 20mA 2-/4-wire HF Series User Manual

Analog input module F-AI 4xI 0(4)..20mA 2-/4-wire HF (6ES7136-6AA00-0CA1)
Manual, 08/2018, A5E41448857-AB
53
Interrupts/diagnostic messages
6
6.1
Status and error display
LED display

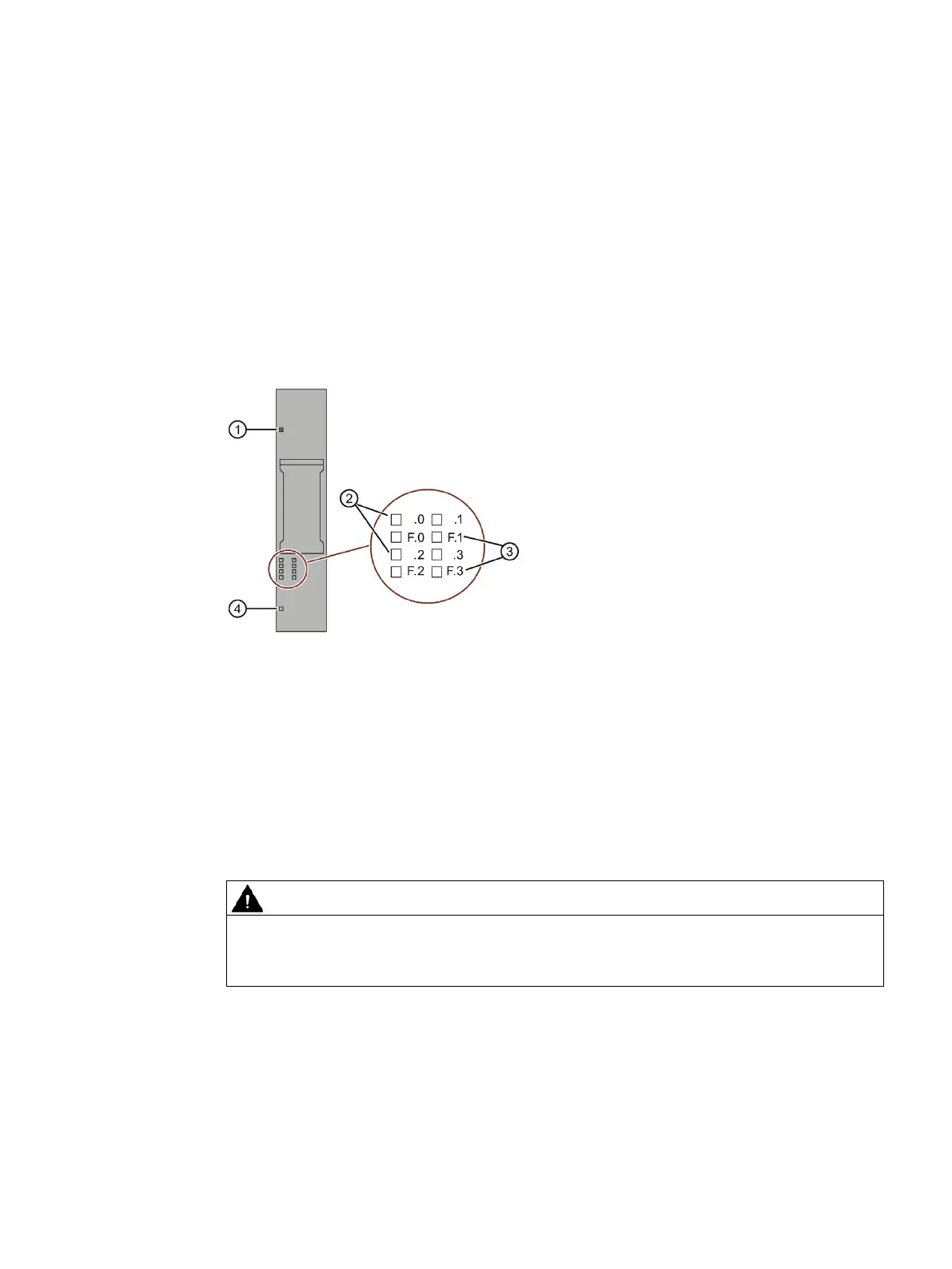

The following figure shows the LED display of the F-AI 4xI 0(4)..20mA 2-/4-wire HF.
①
DIAG (green/red)
②
Channel status (green)
③
Channel fault (red)
④
PWR (green)
Figure 6-1 LED display
Meaning of the LED displays
The following tables show the meaning of the status and error displays. Remedies for
diagnostics alarms can be found in section Diagnostic messages (Page 58).
WARNING
The DIAG LED and the channel status and channel fault LEDs of the outputs are not
designed as safety-related LEDs and therefore may not be evaluated for safety-related
activities.

Siemens SIMATIC ET 200SP F-AI 4xI 0(4) 20mA 2-/4-wire HF Series Specifications

General

Input channels	4
Wiring type	2-/4-wire
Series	SIMATIC ET 200SP
Supply voltage	24 V DC
Rated value (DC)	24 V
Power loss, typ.	1.5 W
Interference voltage suppression for interference frequency f1 in Hz	50/60 Hz
Diagnostics function	Yes
Galvanic isolation	Yes
Potential separation channels	Yes
Potential separation between the channels and backplane bus	Yes
Module type	AI
Safety integrity level	SIL 3
Connection method	Push-in terminals
Operating voltage	24 V DC
Weight	200 g
Input current range	0(4)..20 mA
Product type designation	F-AI 4xI 0(4)..20mA 2-/4-wire HF
Analog value generation for the inputs	16 bits
Resolution	16 bit
Integration time/resolution per channel	Configurable
