Interrupts, error messages, diagnostics and system alarms
5.2 Interrupts
Interface module IM 155-6 DP HF (6ES7155-6BA01-0CN0)
32 Manual, 10/2018, A5E03916550-AD
Structure of interrupts
The figure below shows the structure of the interrupt section for the ET 200SP distributed I/O
system:

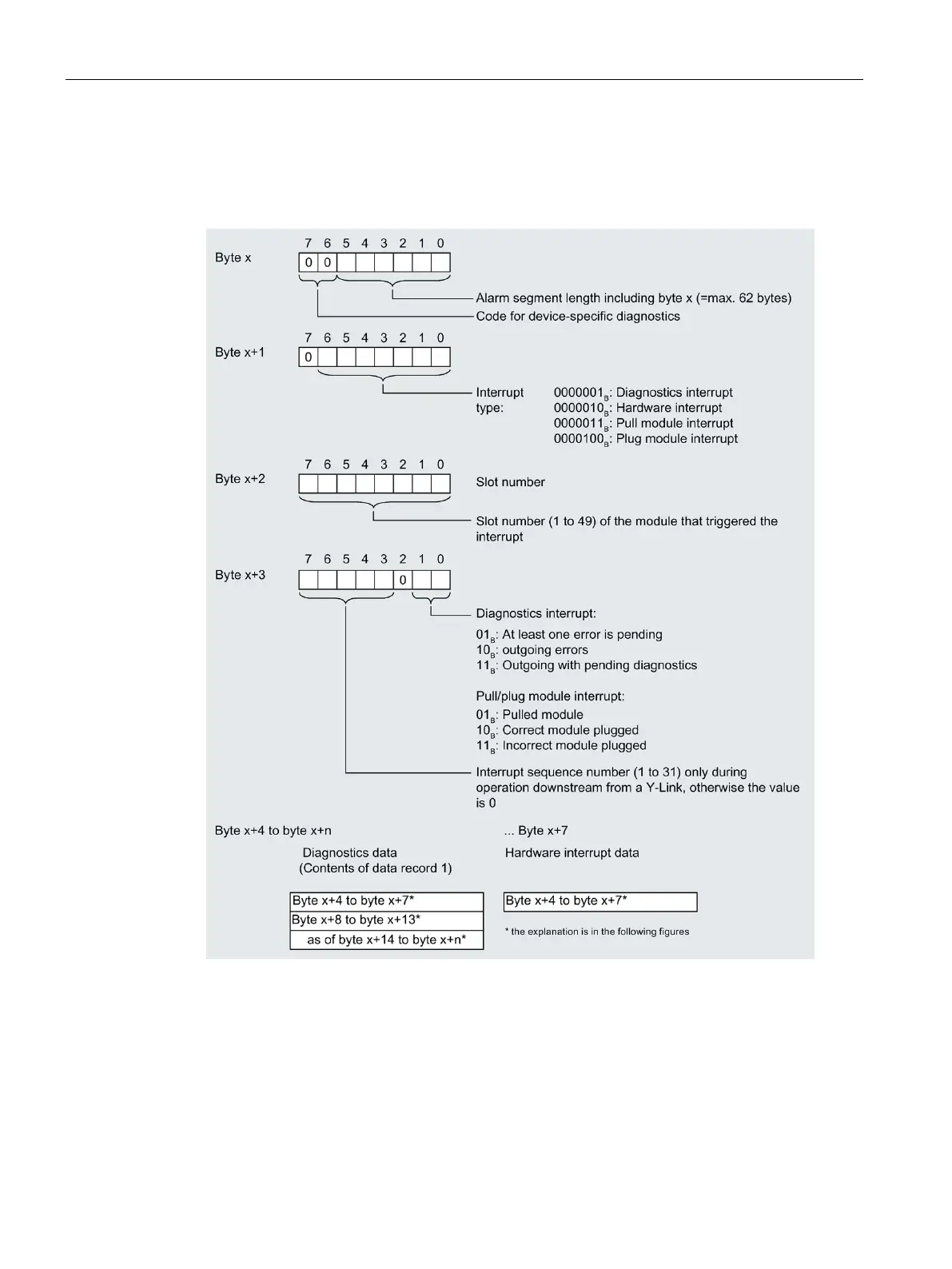

Figure 5-3 Structure of the interrupt status of the interrupt section
