Siemens SIMATIC ET 200SP IM 155-6 DP HF User Manual

Interface module IM 155-6 DP HF (6ES7155-6BA01-0CN0)
Manual, 10/2018, A5E03916550-AD
7
Guide to documentation
1

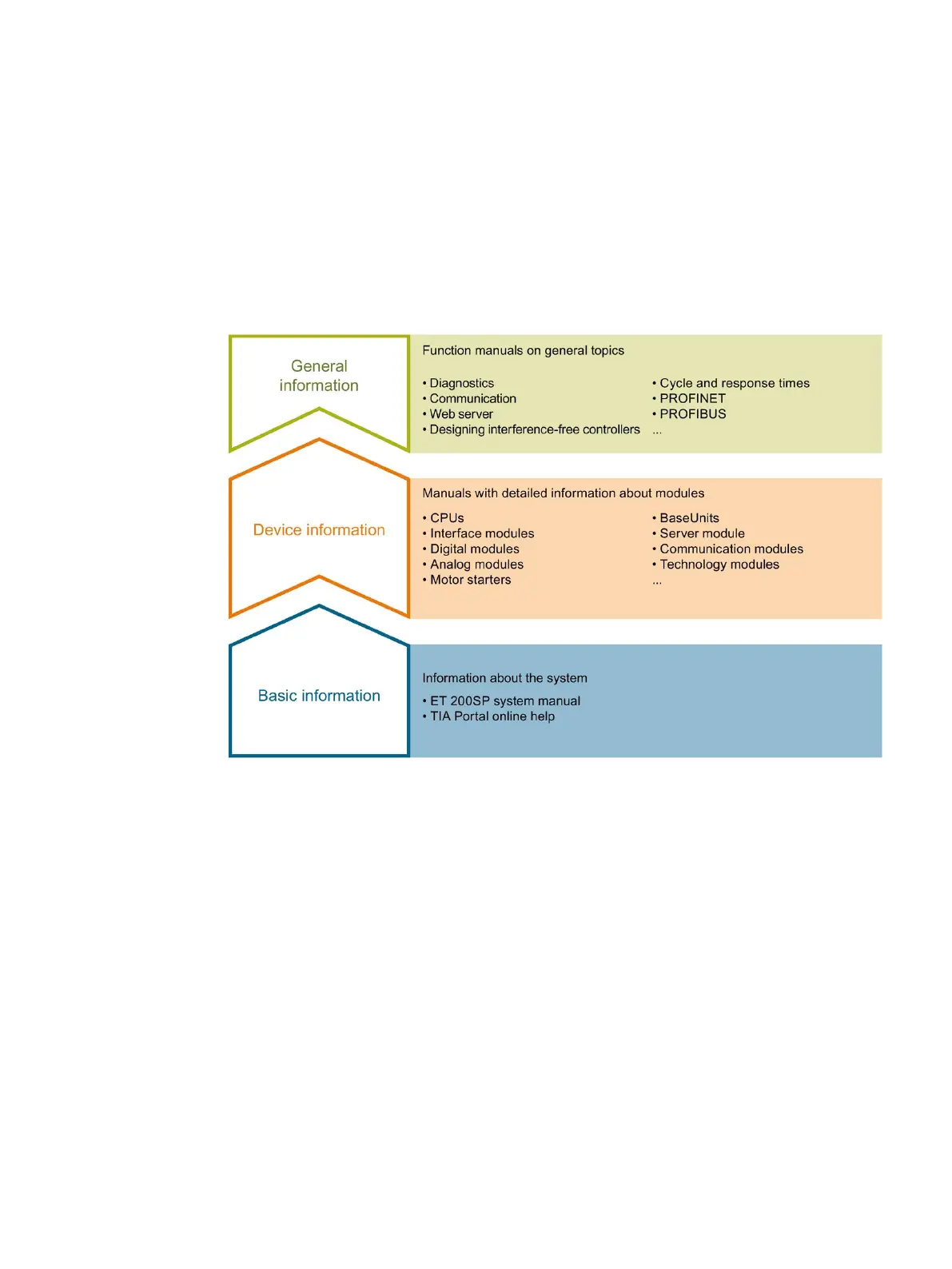

The documentation for the SIMATIC ET 200SP distributed I/O system is arranged into three
areas.
This arrangement enables you to access the specific content you require.
Basic information
The system manual describes in detail the configuration, installation, wiring and
commissioning of the SIMATIC ET 200SP. distributed I/O system. The STEP 7 online help
supports you in the configuration and programming.
Device information
Product manuals contain a compact description of the module-specific information, such as
properties, wiring diagrams, characteristics and technical specifications.

Siemens SIMATIC ET 200SP IM 155-6 DP HF Specifications

General

Product type designation	IM 155-6 DP HF
Manufacturer	Siemens
Series	SIMATIC ET 200SP
Interface	PROFIBUS DP
Protocol	PROFIBUS DP
Power Supply	24 V DC
Number of DP masters	1
DP master	Yes
Isochronous mode	Yes
Integrated web server	Yes
PROFINET IO Device	No
Number of IO controllers	0
IRT	No
MRP	No
MRPD	No
Shared device	No
Rated value (DC)	24 V
Permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes
Protection class	IP20
Mounting	DIN rail
Transmission rate	12 Mbps
Address area	244 bytes
I&M data	Yes
Number of S7 program blocks	0
Number of clock memories	0
Number of counters	0
Number of data blocks	0
Number of timers	0
Operating temperature	60 °C
Storage temperature	-40 °C to +70 °C
Relative humidity	95%
