Interface module IM 155-6 DP HF (6ES7155-6BA01-0CN0)
Manual, 10/2018, A5E03916550-AD
25
Interrupts, error messages, diagnostics and system
alarms
5
5.1
Status and error displays
LED displays

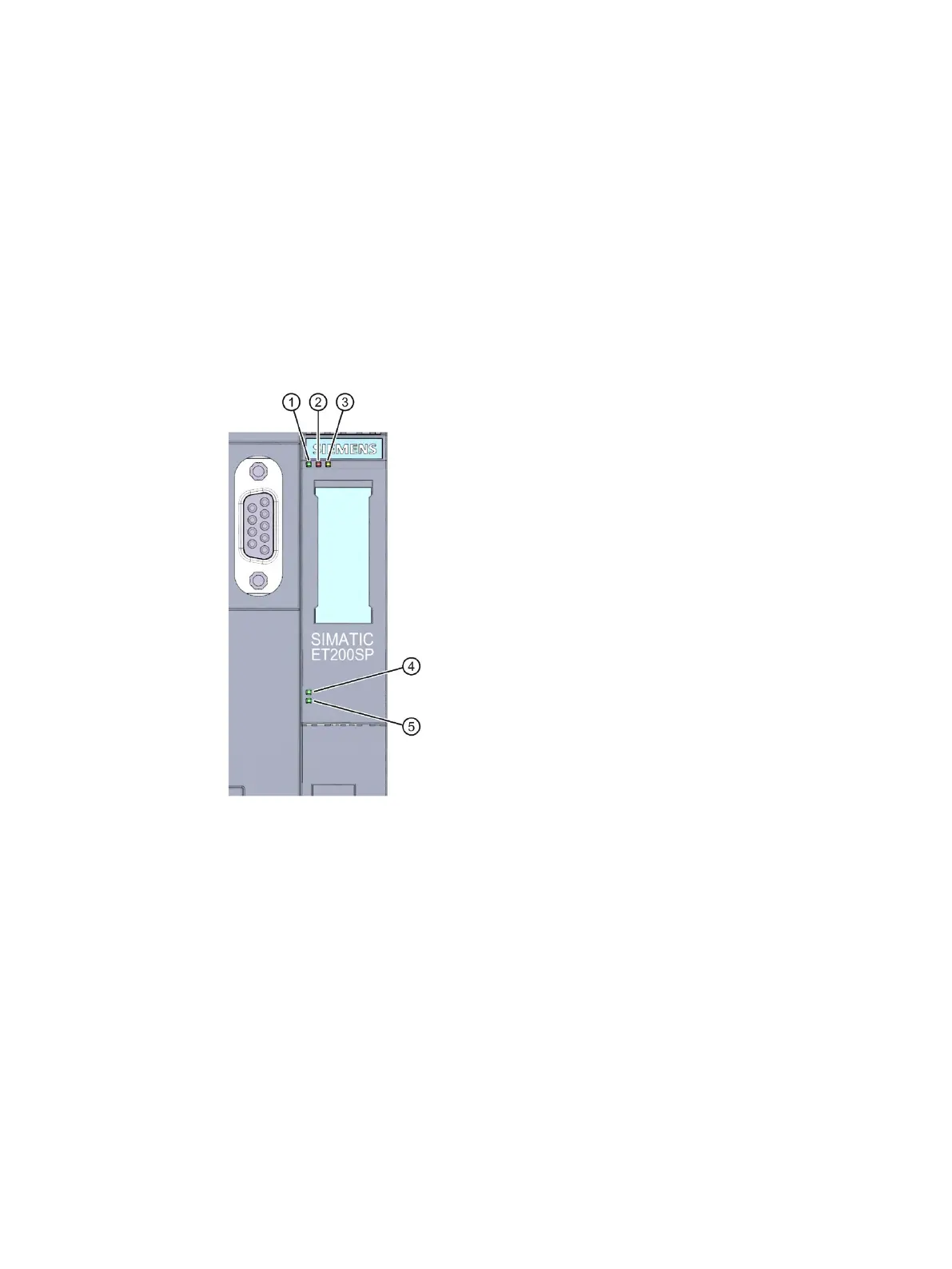

The figure below shows the LED display on the interface module:
①
RN (green)
②
ER (red)
③
MT (yellow)
④
DP (green)
⑤
PWR (green)
Figure 5-1 LED displays on the interface module
Meaning of the LED displays
The following tables contain the meaning of the status and error displays.
