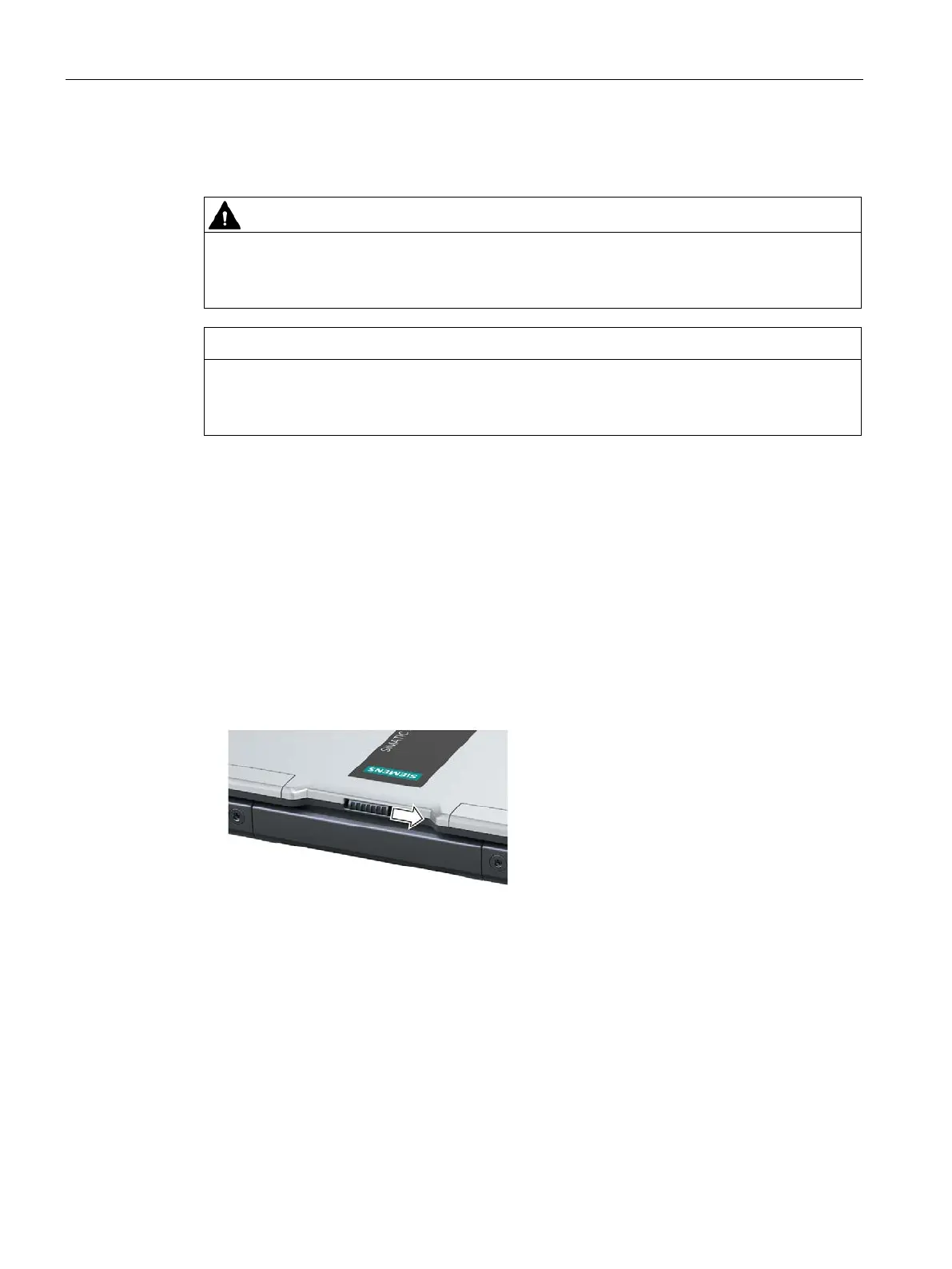

Installing and connecting the device
4.2 Positioning the device
SIMATIC Field PG M6
32 Operating Instructions, 12/2018, A5E43198909-AA
The outer housing is made of Magnesium. If it comes into contact with open flame, there is
a risk of fire / spreading fire.
Risk of damage to the device
Always set the PG down on its underside, otherwise there is a risk that it will fall over and
damage sensitive components.
● Position the programming device to ensure comfortable operation and safety.
● Position the programming device with its bottom on a flat surface and at a comfortable
height and distance.
● Ensure that a power outlet is easily accessible near your workplace.
● Ensure that there is enough space for connecting peripherals.
● Do not obstruct any ventilation slots when you position the device.
● Open the display by sliding the lock of the display in the direction of the arrow.
● Flip the display open and adjust it to a convenient viewing angle. The display can be
adjusted to any inclination angle between 0 and 150
o
.
