Siemens SIMATIC Field PG M6 User Manual

Technical specifications
9.4 Interface description
SIMATIC Field PG M6
Operating Instructions, 12/2018, A5E43198909-AA
83
9.4
Interface description
9.4.1
External interfaces

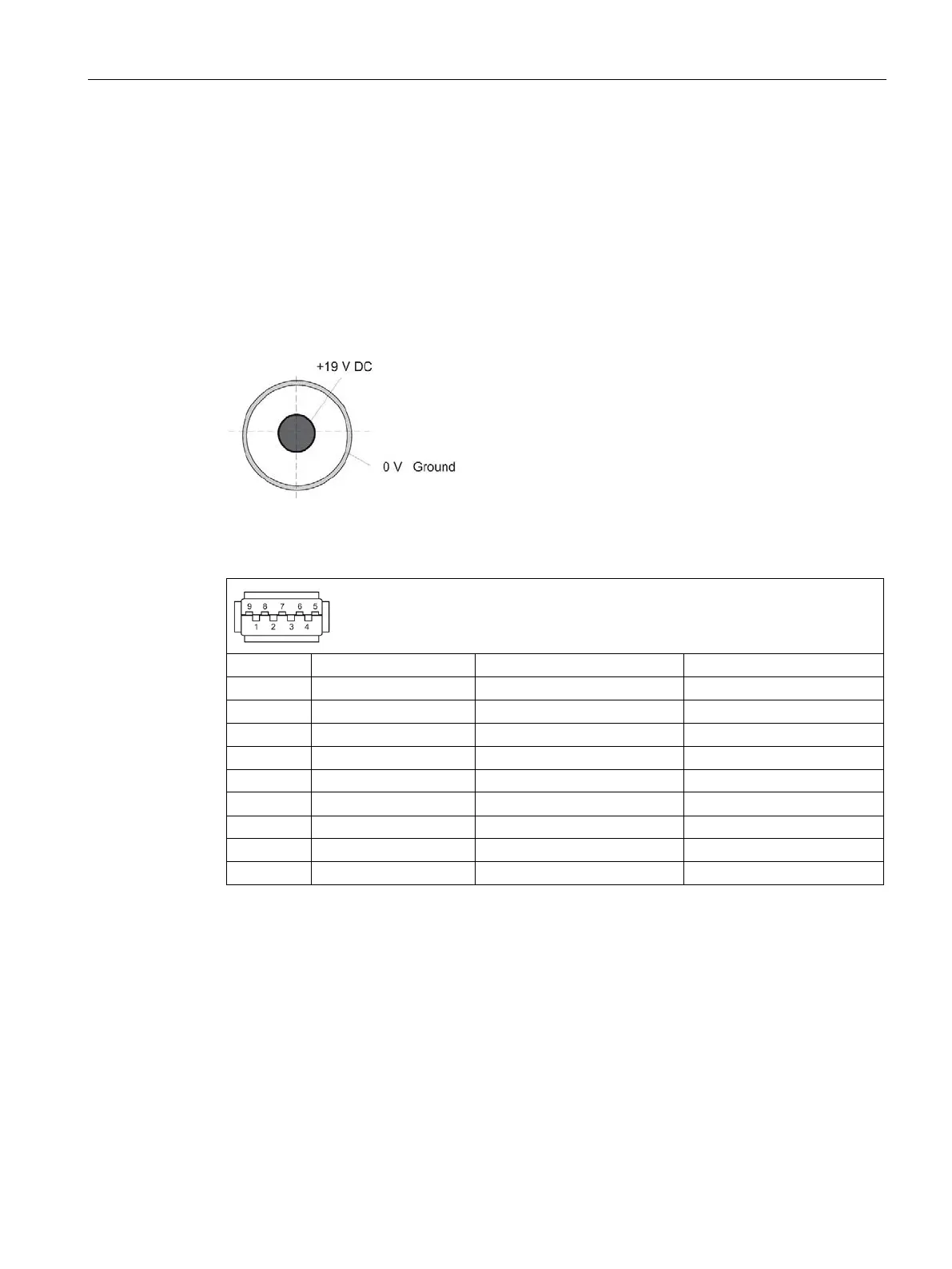

DC-In
Power adapter socket. This has the following charge:
USB 3.0/3.1; Type A
Pin no.
Short designation
Meaning
Input/output
1
VBUS
+ 5 V (fused)
Output
2
D-
Data line
Input/output
3
D+
Data line
Input/output
4
GND
Ground
–
5
RX-
Data line
Input
6 RX+ Data line Input
7
GND
Ground
–
8 TX- Data line Output
9
TX+
Data line
Output
