Installing and connecting the device
4.3 Connecting the device
SIMATIC Field PG M6
34 Operating Instructions, 12/2018, A5E43198909-AA
Localized information
For the United States and Canada
For the United States and Canada, a CSA or UL-listed power cord must be used.
The connector must be compliant with NEMA 1-15P.
●
120 V/240 V supply voltage
A flexible cable with UL approval and CSA marking must be used. In addition, the cable
must exhibit the following properties:
– SPT-2 or SVT with three wires
– At least 18 AWG conductor cross-section
– Max. length of 4.5 m
– Connector 15 A, min. 125 V
For countries other than the USA and Canada
●
230 V supply voltage
This device is equipped with a safety-tested power cord. If you choose not to use this
cable, you must use a flexible cable of the following type: At least 18 AWG (0.82 mm
2
)
conductor cross-section and 15 A/250 V connector. The cable set must conform to the
safety regulations of the country in which the devices are installed, and bear the
prescribed markings in each case.
Procedure
1.
Insert the supplied power su
p-
ply cable into the external
power supply.
2.
Insert the low
-voltage con-
ne
ctor into the appropriate
socket for connection to the
power supply

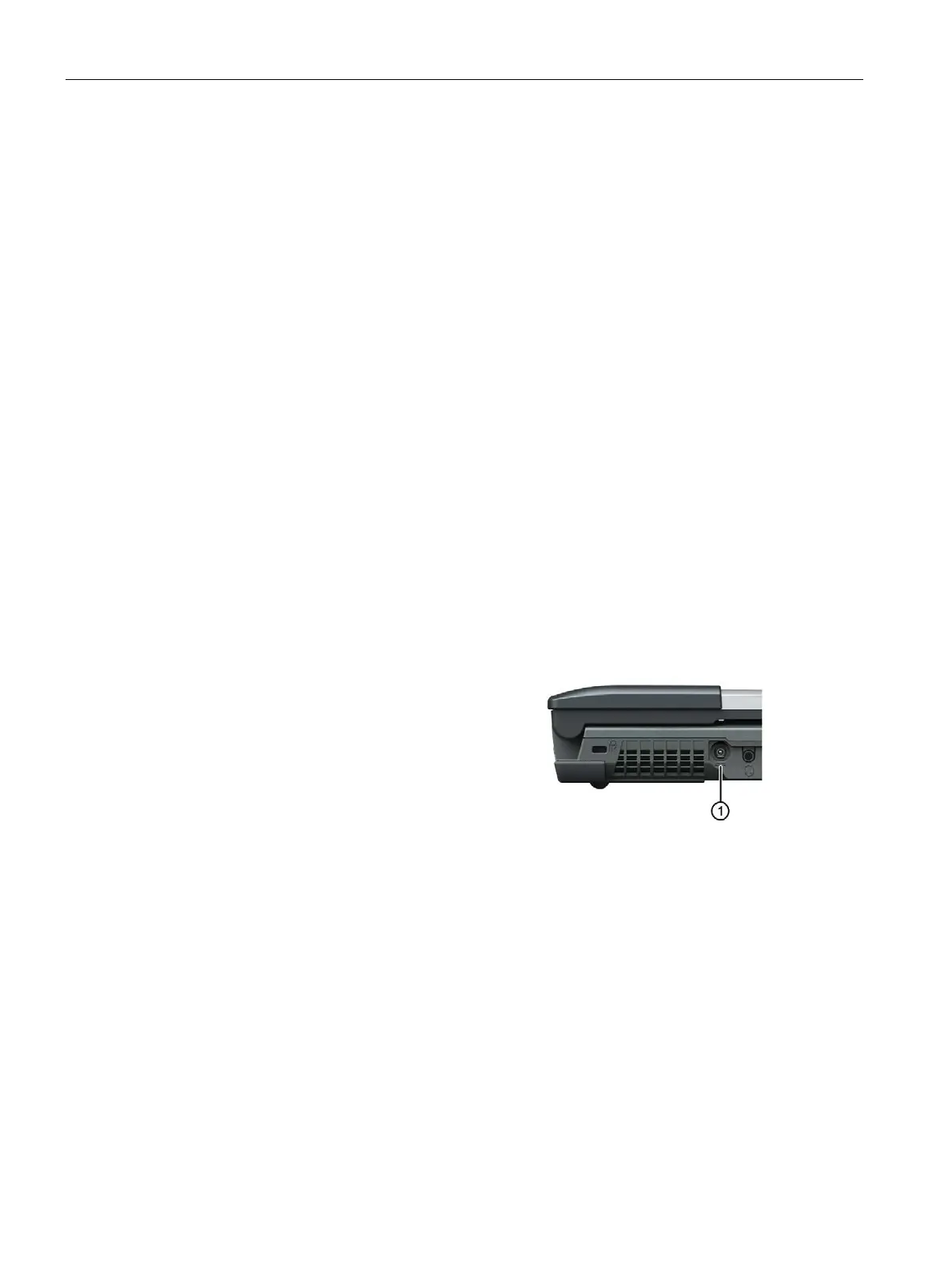

① on the left
hand side of the device.
3.
Plug the external power supply
into a socket with a grounded
protective conductor.
