Overview
1.4 Interfaces
IFP Basic
Operating Instructions, 06/2023, A5E46178354 - AD
11

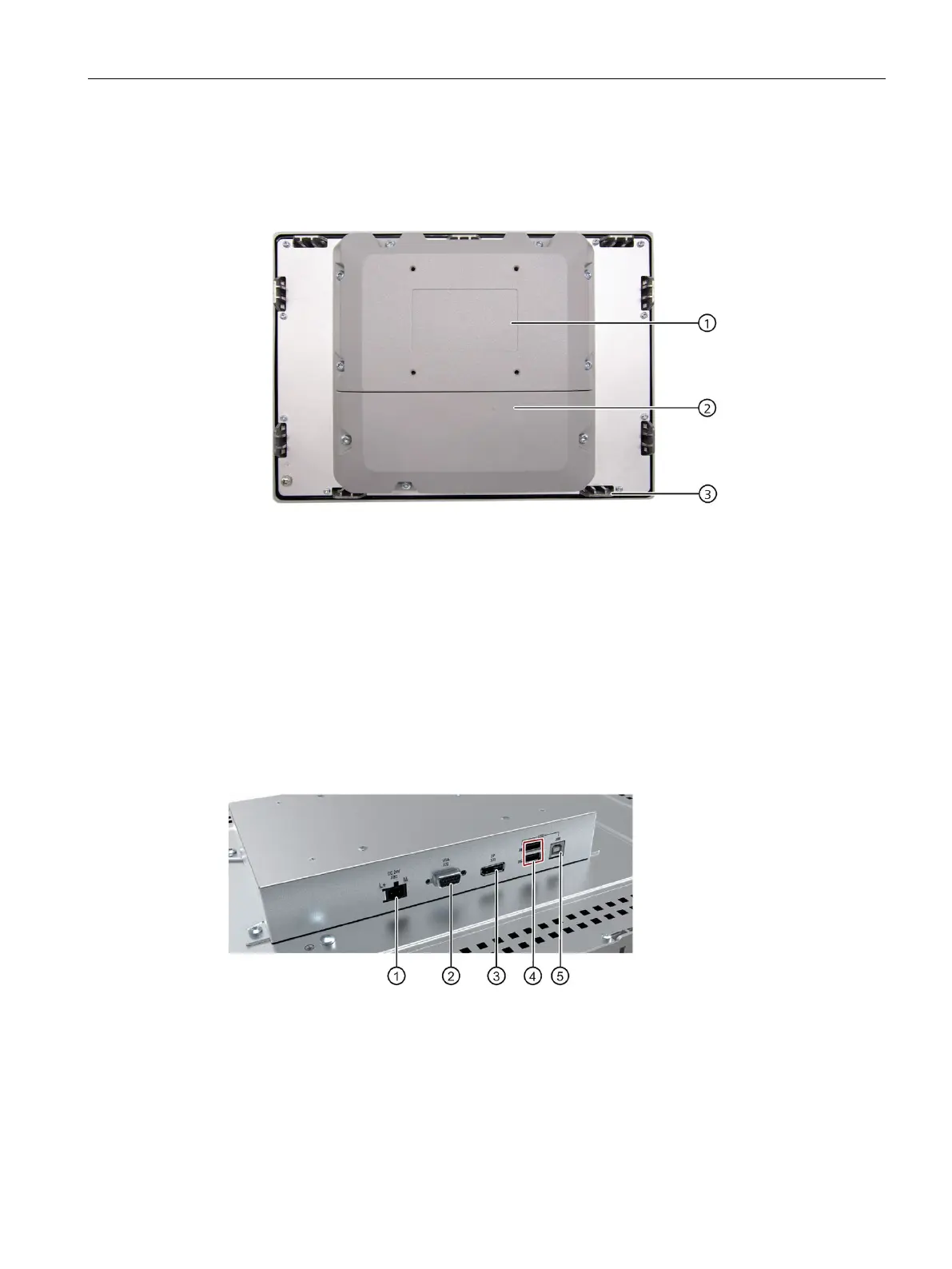

Rear view
①
Rating plate
②
Terminal compartment cover
③
Recesses for mounting clips
1.4 Interfaces
SIMATIC IFP1200/1500/1900/2200 Basic
①
X80 connector for 24 VDC power supply
②
X72 VGA interface
③
X71 DisplayPort interface
④
X61, X62 USB 2.0 Type A
⑤
X60 USB 2.0 Type B
