Installing and connecting the device
3.1 Preparing for installation
IFP Basic
Operating Instructions, 06/2023, A5E46178354 - AD
21
Procedure

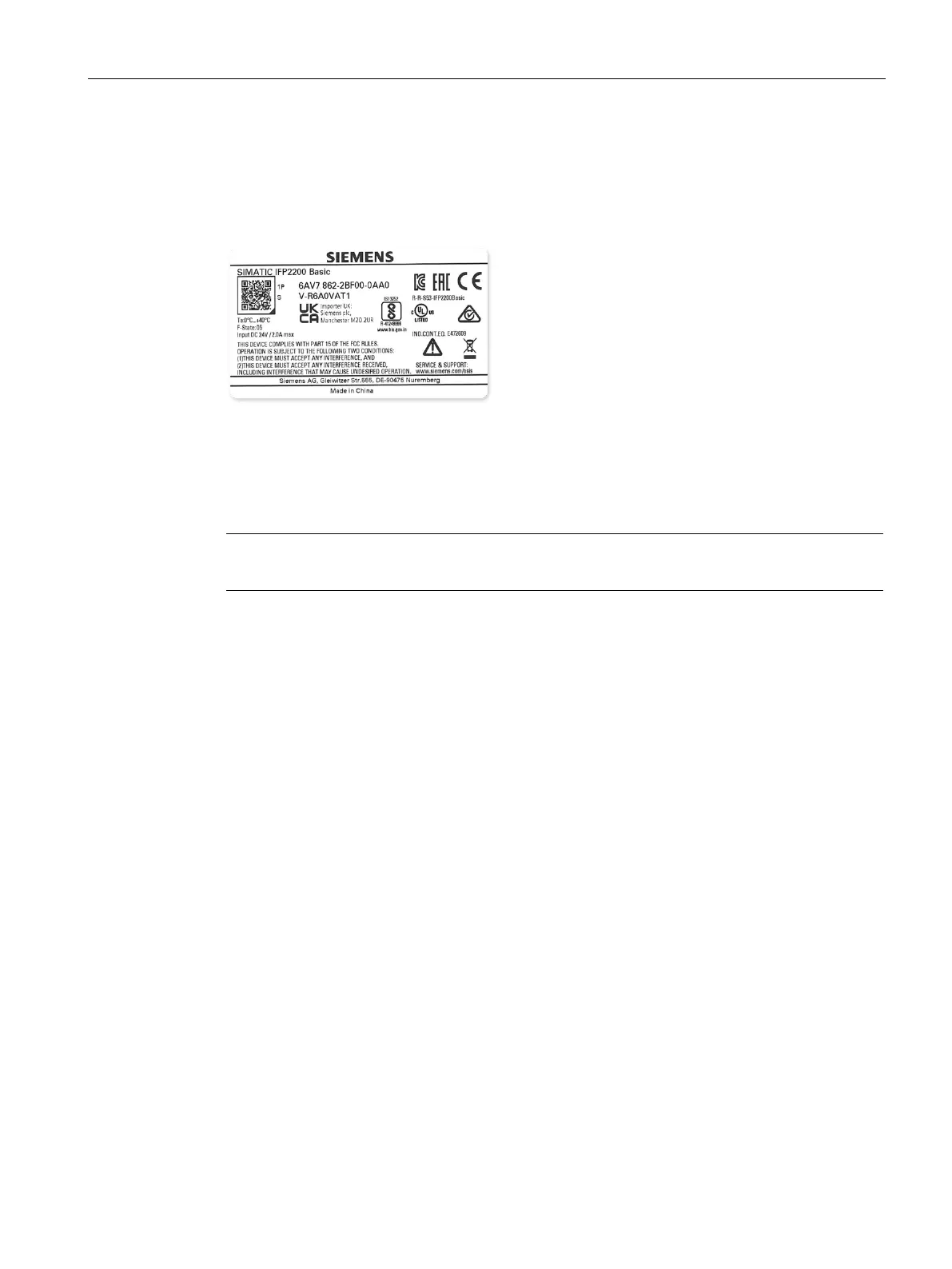

Get the information of order number, serial number, and production version (FS) from the
product label. The following graphic displays the product label and takes SIMATIC IFP2200
Basic as an example.
3.1.3 Permitted mounting positions
The device may be mounted in the following positions:
The device is approved for indoor operation only.
