Siemens SIMATIC IFP1200 Basic

Technical information
7.6 Interface description
IFP Basic
74 Operating Instructions, 06/2023, A5E46178354 - AD
7.6 Interface description

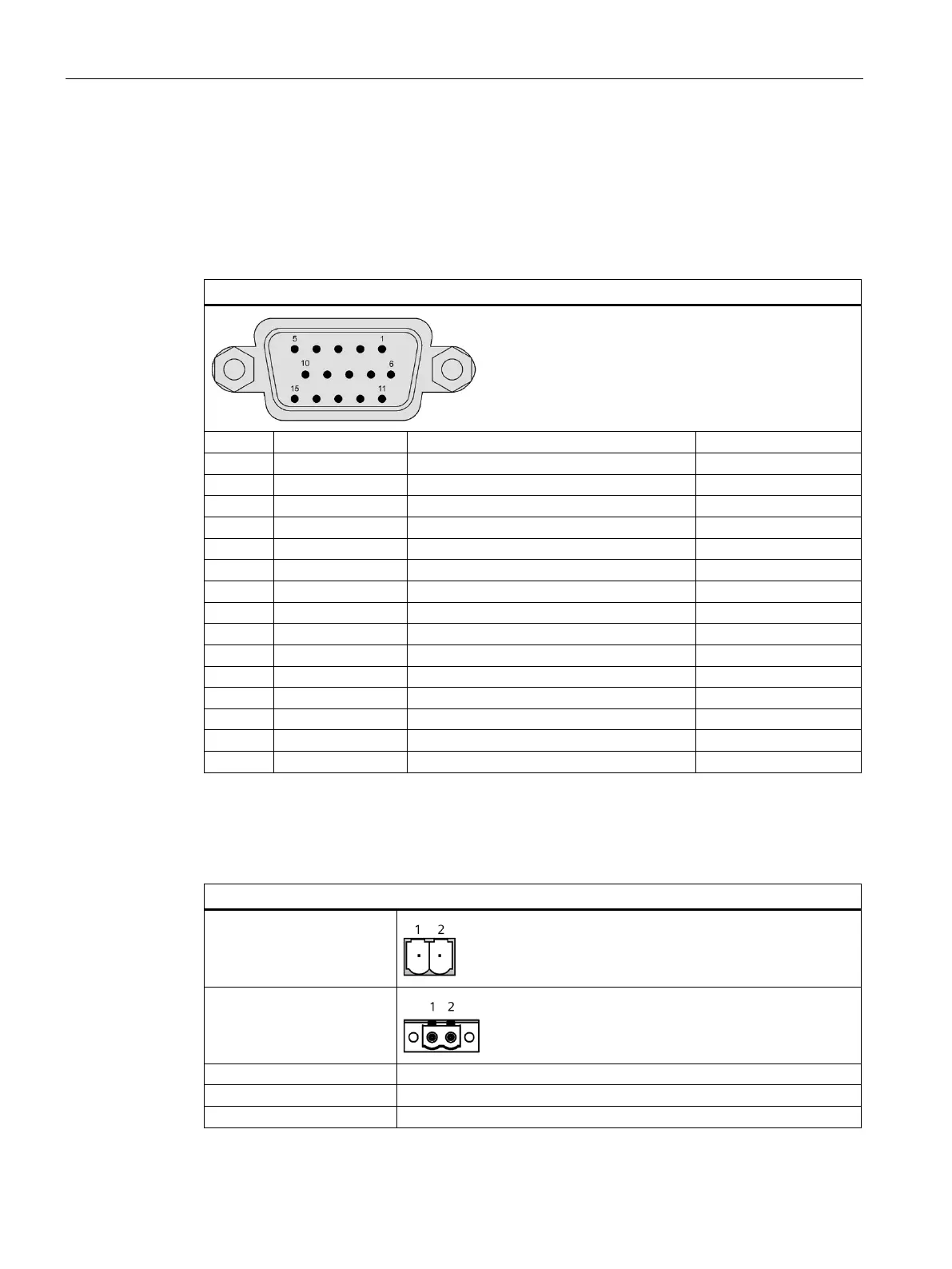

7.6.1 VGA interface
VGA interface
Pin no.
Abbreviation
Meaning
Input/output
1
R+
Red+
Input
2
G+
Green+
Input
3
B+
Blue+
Input
4
NC
No connection
-
5
Cable_DET
VGA cable detection
Input
6
R-
Red-
Input
7
G-
Green-
Input
8
B-
Blue-
Input
9
VCC
VGA cable power
power
10
Ground
Ground
Ground
11
NC
No Connection
-
12
SDA
DDC data
Bidirectional
13
HSYNC
Horizontal Synchronization
Input
14
VSYNC
Vertical Synchronization
Input
15
SCL
DDC clock
Bidirectional
7.6.2 24 VDC Power Supply
Power supply 24 VDC 2-pin
SIMATIC IFP Basic
SIMATIC IFP1200 Basic C
Pin no.
Meaning
1
+24 VDC
2
GND
