3.2.3 Secure with mounting clips
Positions of the mounting clips
To achieve the degree of protection for the device, the positions for the mounting clips
shown below must be adhered to.
The positions of the mounting clips are marked by stamps on the cutouts. Fit the mounting
clips in all the stamped cutouts.

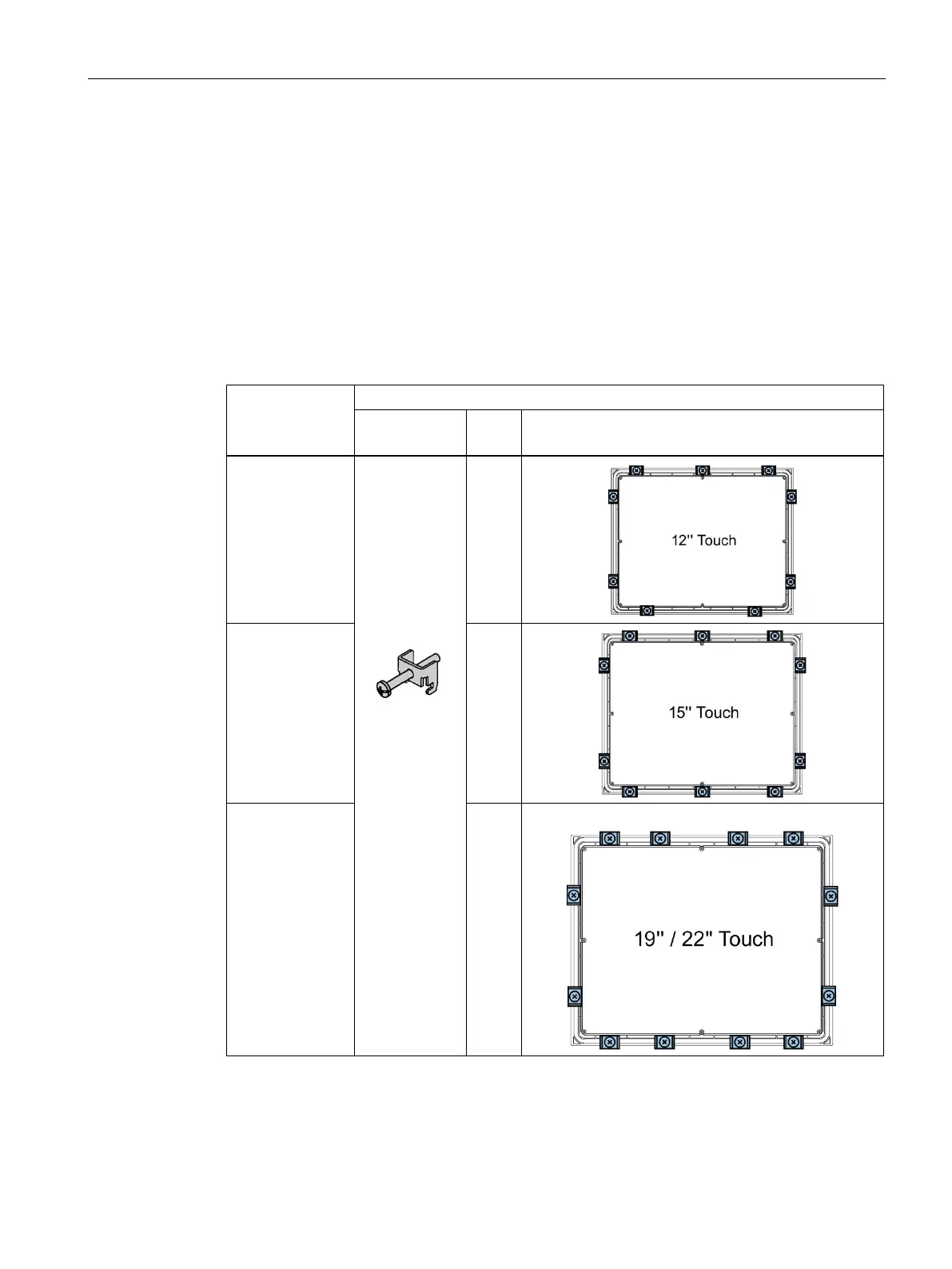

The following table shows the type, number, and position of the mounting clips needed for
the respective devices.
Device
Mounting clips
Type Quan-
tity
Position on the device
SIMATIC IFP1200
Basic;
SIMATIC IFP1200
Basic C
9
SIMATIC IFP1500
Basic
10
SIMATIC IFP1900
Basic;
SIMATIC IFP2200
Basic
12
