Installing and connecting the device
3.2 Installing the IFP Basic and IFP1200 Basic C
IFP Basic
28 Operating Instructions, 06/2023, A5E46178354 - AD
Requirement
• All packaging components and protective films should be removed from the device.
• To install the panel, you need the mounting clips from the accessories kit.
Procedure

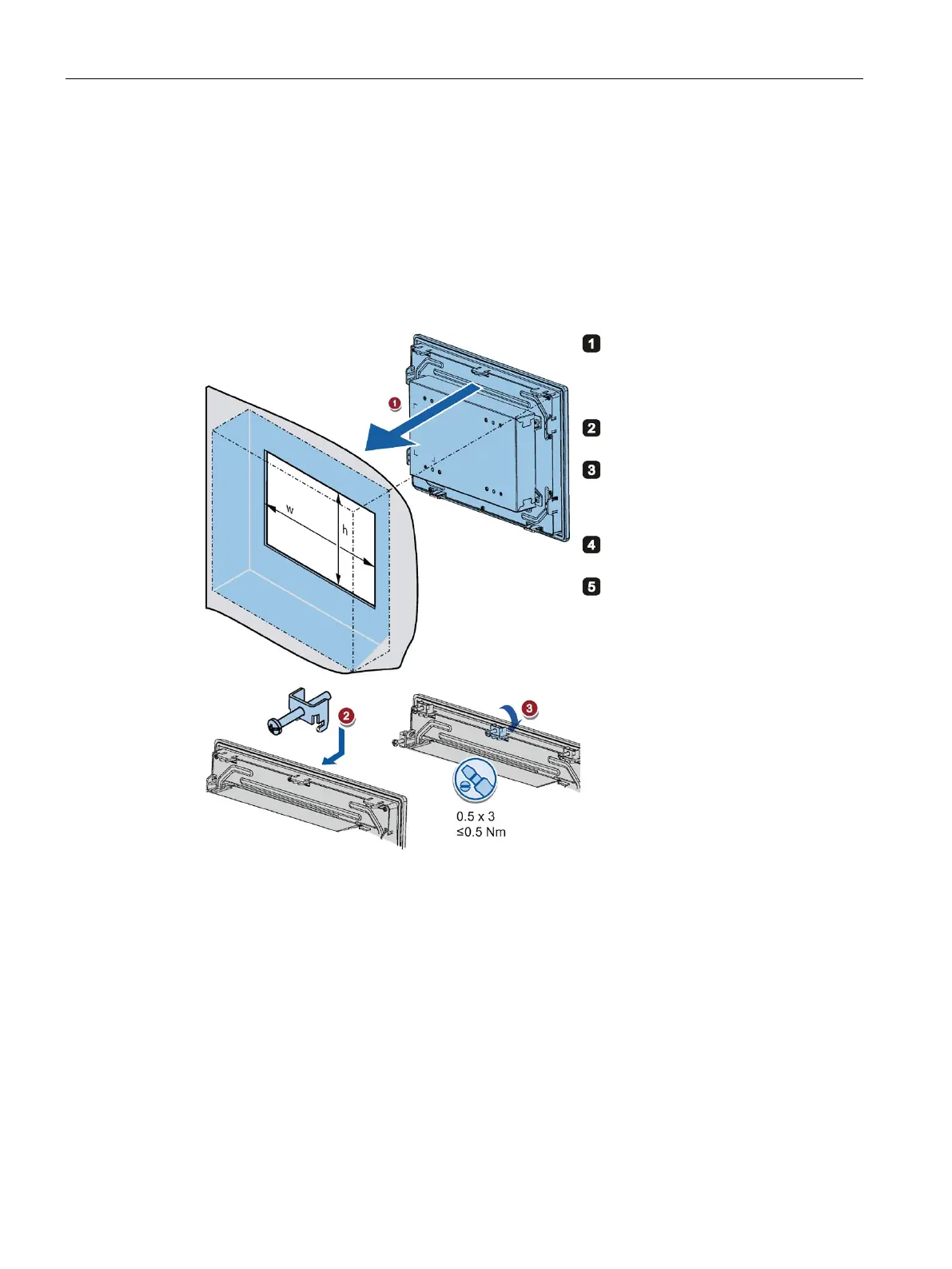

The following graphic shows the installation steps using SIMATIC Basic IFP as an example:
Insert the panel device into the
mounting cutout from the front.
Insert a mounting clip into the
cutout provided on the device.
Tighten the threaded pin to secure
the mounting clip. The threaded
pins have a maximum tightening
torque of 0.5 Nm.
Repeat steps 2 and 3 for all mount-
ing clips.
Check the fit of the mounting seal.
Result
The device is mounted and the relevant degree of protection is ensured at the front.
