Siemens SIMATIC IFP1200 Basic

Installing and connecting the device
3.1 Preparing for installation
IFP Basic
Operating Instructions, 06/2023, A5E46178354 - AD
25

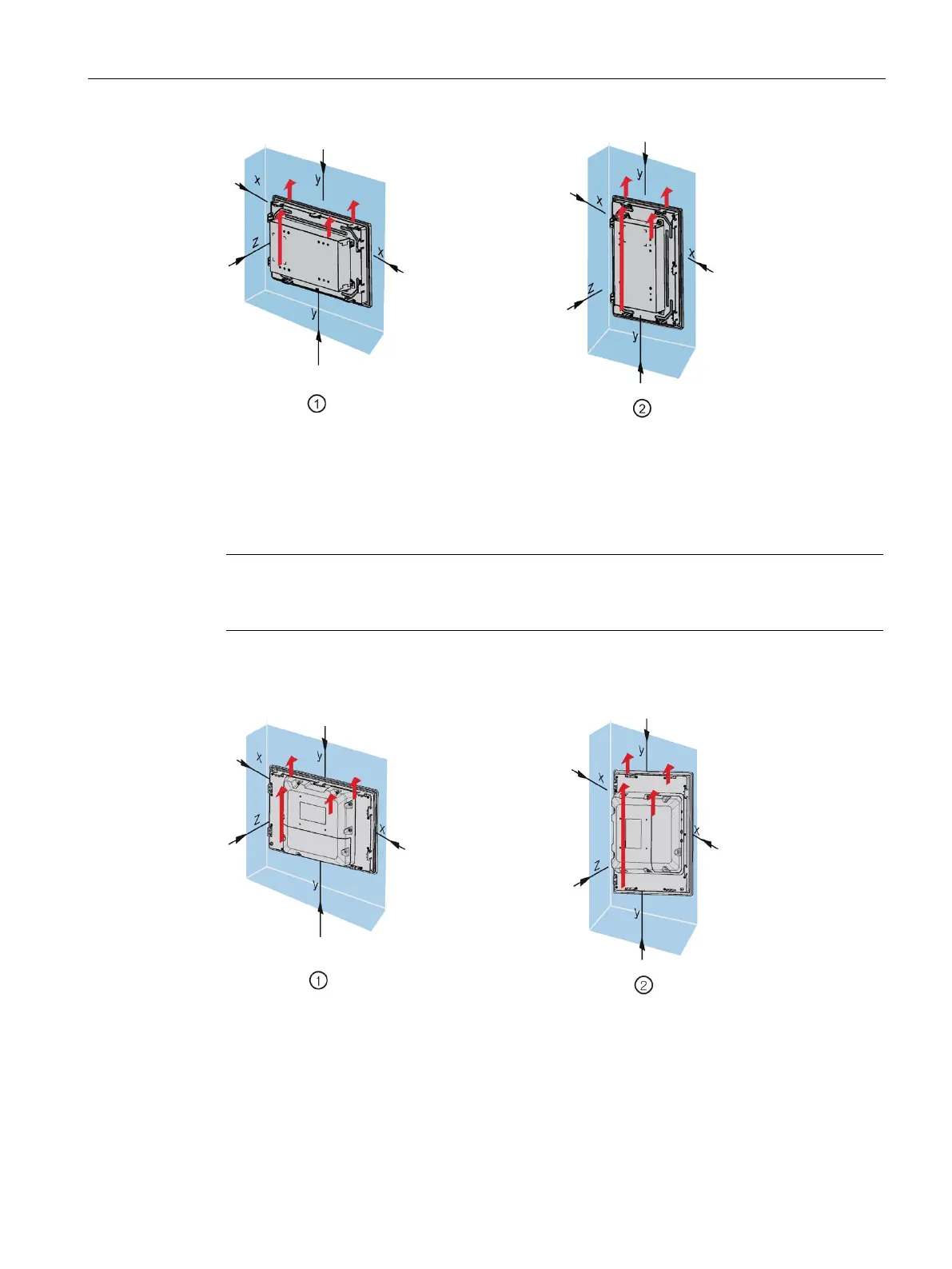

①
Clearance for horizontal installation
②
Clearance for vertical installation
x
At least 50 mm distance
y
At least 50 mm distance
z
At least 10 mm distance
Note
Ensure that the maximum ambient temperature is not exceeded when mounting the device
in a cabinet and especially in a closed enclosure.
For the SIMATIC IFP1200 Basic C, the graphics for horizontal and vertical installation are as
follows:
①
Clearance for horizontal installation
②
Clearance for vertical installation
x
At least 50 mm distance
y
At least 50 mm distance
z
At least 10 mm distance
