Overview
1.2 Structure of the devices
SIMATIC IPC277G
10 Operating Instructions, 08/2021, A5E50059956-AA
1.2 Structure of the devices
1.2.1 7" and 10" multi-touch devices
This section describes the design of the 7" and 10" devices, using the 7" device as an
example.

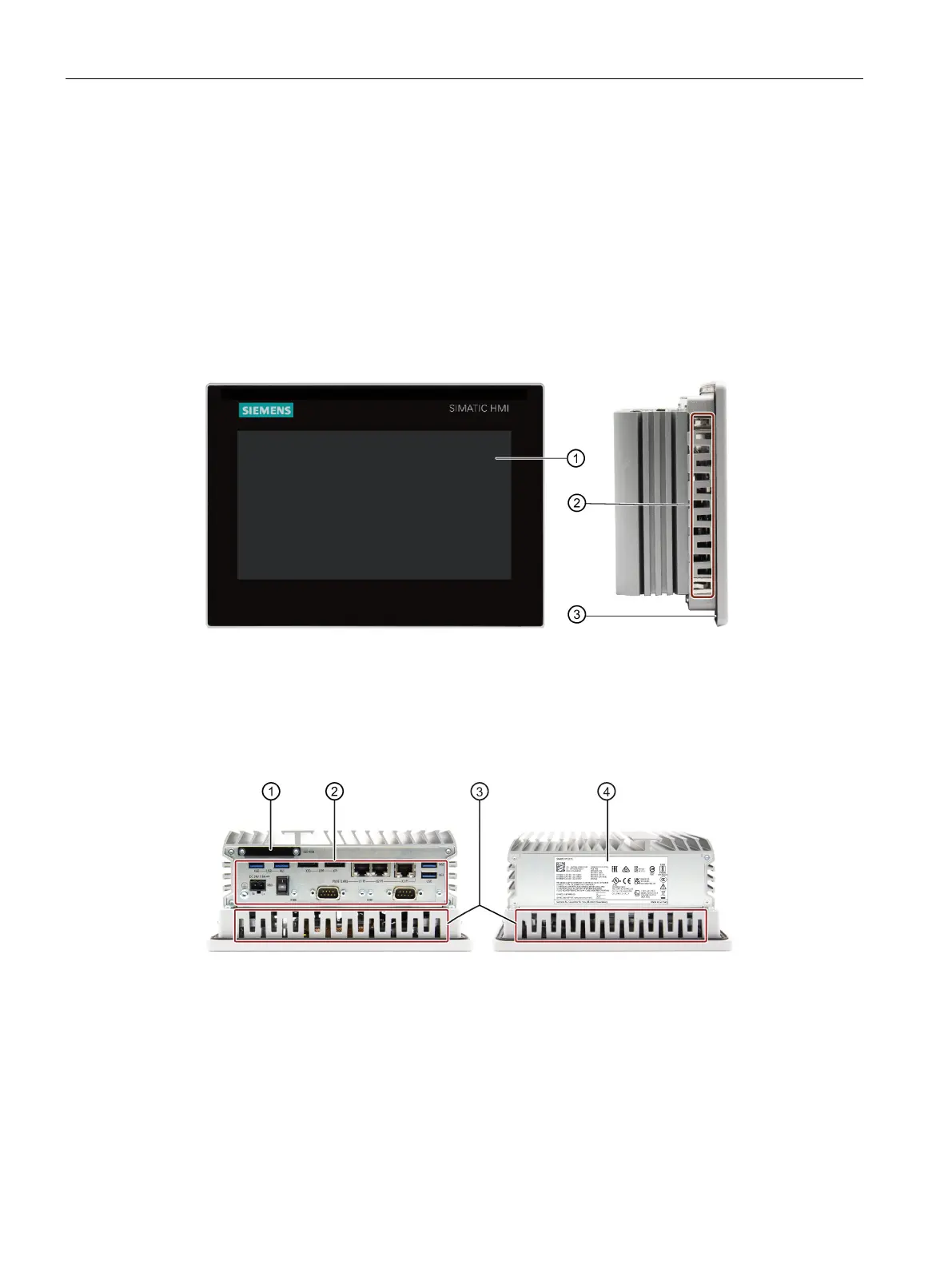

Front view and side view
①
Display/touch screen
②
Recesses for mounting clips
③
Mounting seal
Bottom view
①
M.2 SSD card slot
②
Interfaces and operating elements
③
Recesses for mounting clips
④
Product label
