Siemens SIMATIC IPC277G User Manual

Installing and connecting the device
3.2 Mounting the device
SIMATIC IPC277G
24 Operating Instructions, 08/2021, A5E50059956-AA

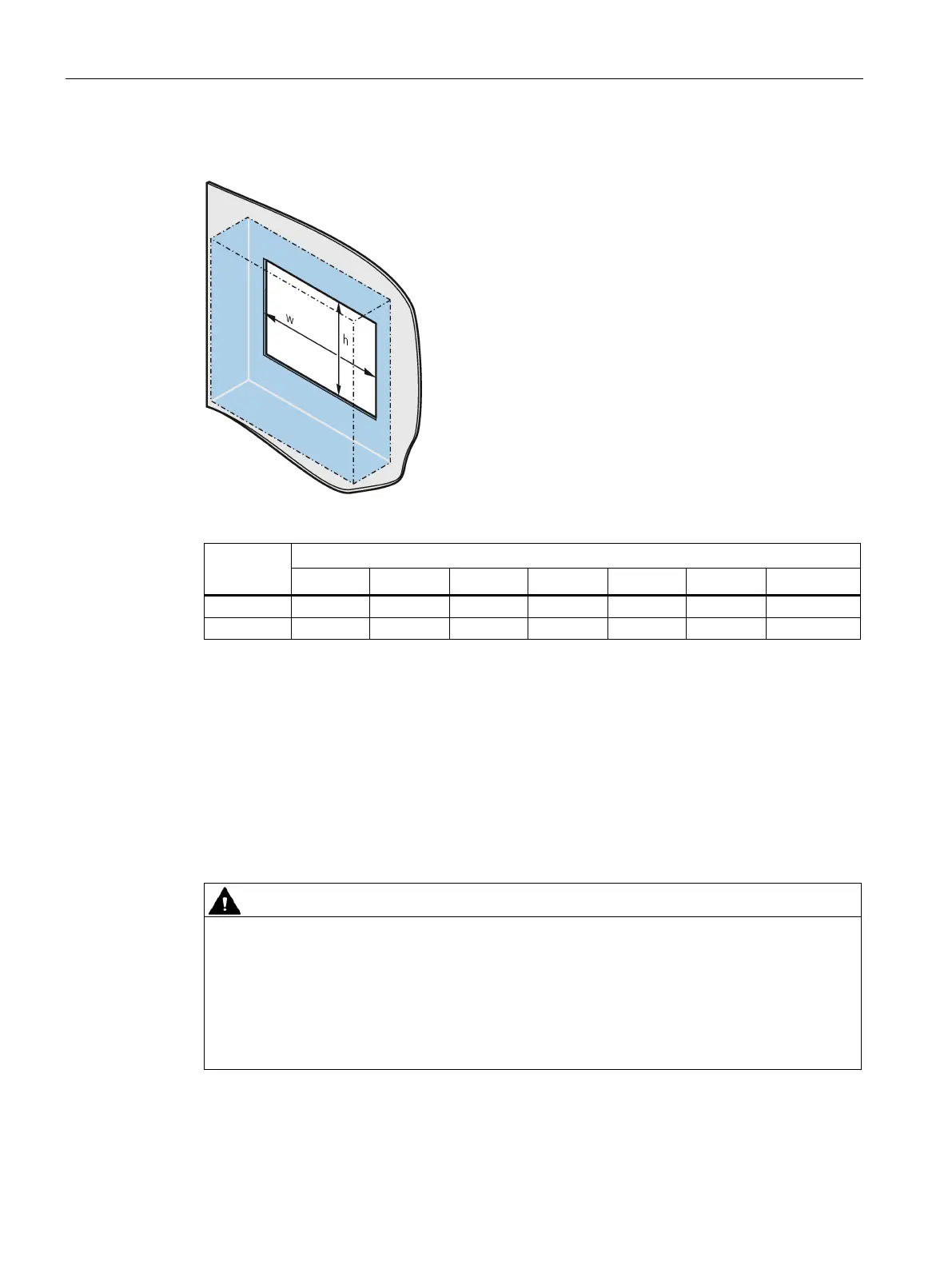

Dimensions of the mounting cutout
The following table shows the dimensions of the required mounting cutout:
Mounting
cutout
Device
7"
10"
12"
15"
19"
22"
24"
Width w
*
197
+1
mm
264
+1
mm
310
+1
mm
382
+1
mm
448
+1
mm
513
+1
mm
569
+1
mm
Height h
*
141
+1
mm
189
+1
mm
221
+1
mm
241
+1
mm
278
+1
mm
315
+1
mm
347
+1
mm
*
Width and height should be reversed accordingly when mounting in vertical format.
3.2 Mounting the device
3.2.1 Mounting instructions
The installer of the plant is responsible for proper installation of the device.
WARNING
Dangerous voltage in control cabinet
A high voltage might be present in the switchgear cabinet and could cause a dangerous
electric shock.
It may result in death or serious physical injury.
Isolate the power supply to the control cabinet before opening it. Ensure that the power to
the control cabinet cannot be turned on accidentally.

Siemens SIMATIC IPC277G Specifications

General

Brand	Siemens
Model	SIMATIC IPC277G
Category	Industrial PC
Language	English
