Installing and connecting the device
3.3 Connecting the device
SIMATIC IPC277G
Operating Instructions, 08/2021, A5E50059956-AA
37
3.3.5 Installing Ethernet connector strain relief
The Ethernet connector strain relief prevents accidental loosening of the Ethernet connector
from the device. The Ethernet connector strain relief is available as an accessory.

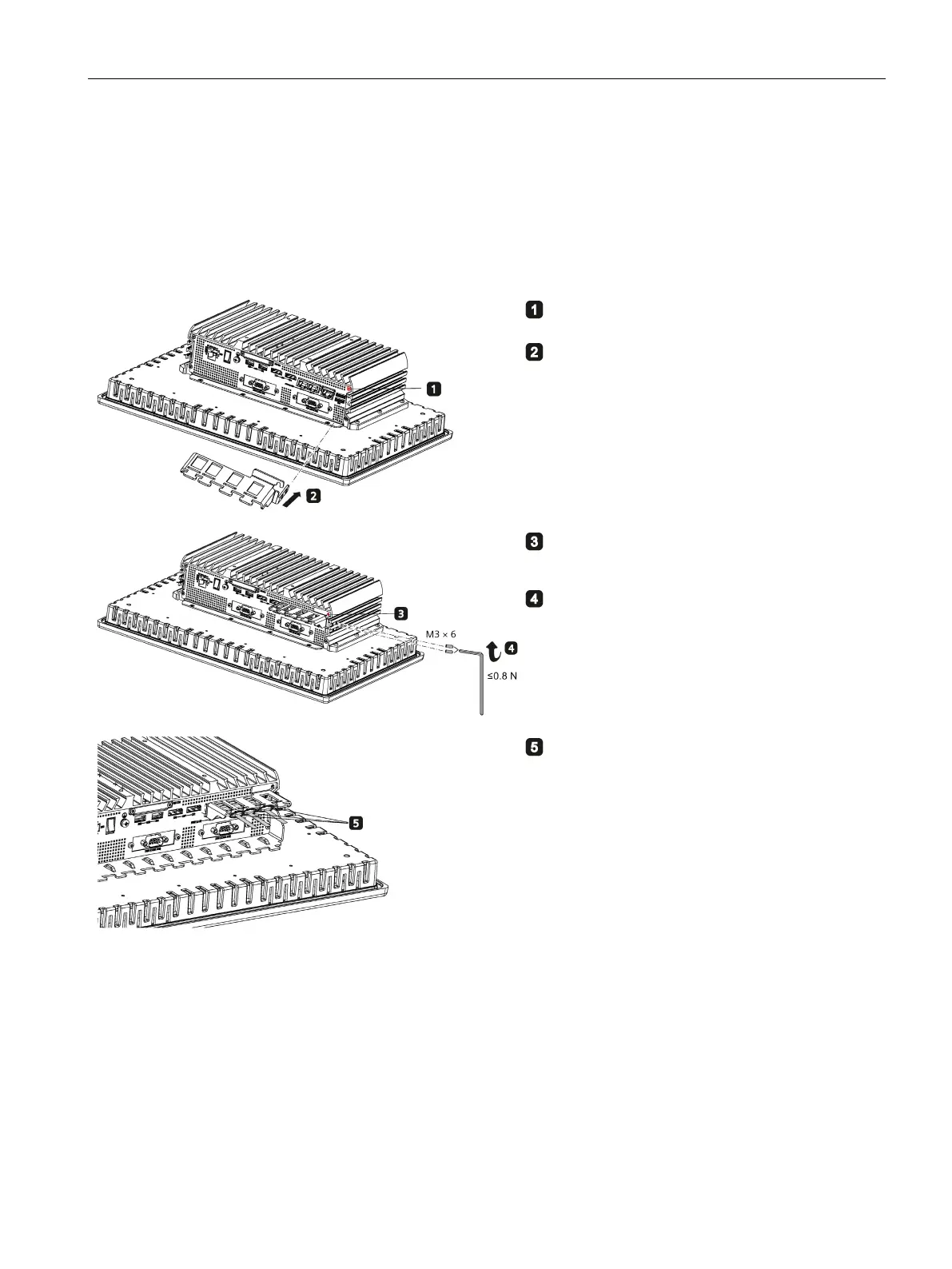

Procedure
Unscrew the marked retaining screw.
Insert the metal plate of the Ethernet
connector strain relief into the second groove.
Secure the Ethernet connector strain to the
device with the M3 × 8 panhead screw from
the accessory.
Fasten the Ethernet connector strain relief
with two M3 × 6 setscrews on the right side.
Secure the Ethernet connector with cable ties
for each port.
