Expanding and assigning parameters to the device
6.1 Open the device
SIMATIC IPC277G
50 Operating Instructions, 08/2021, A5E50059956-AA

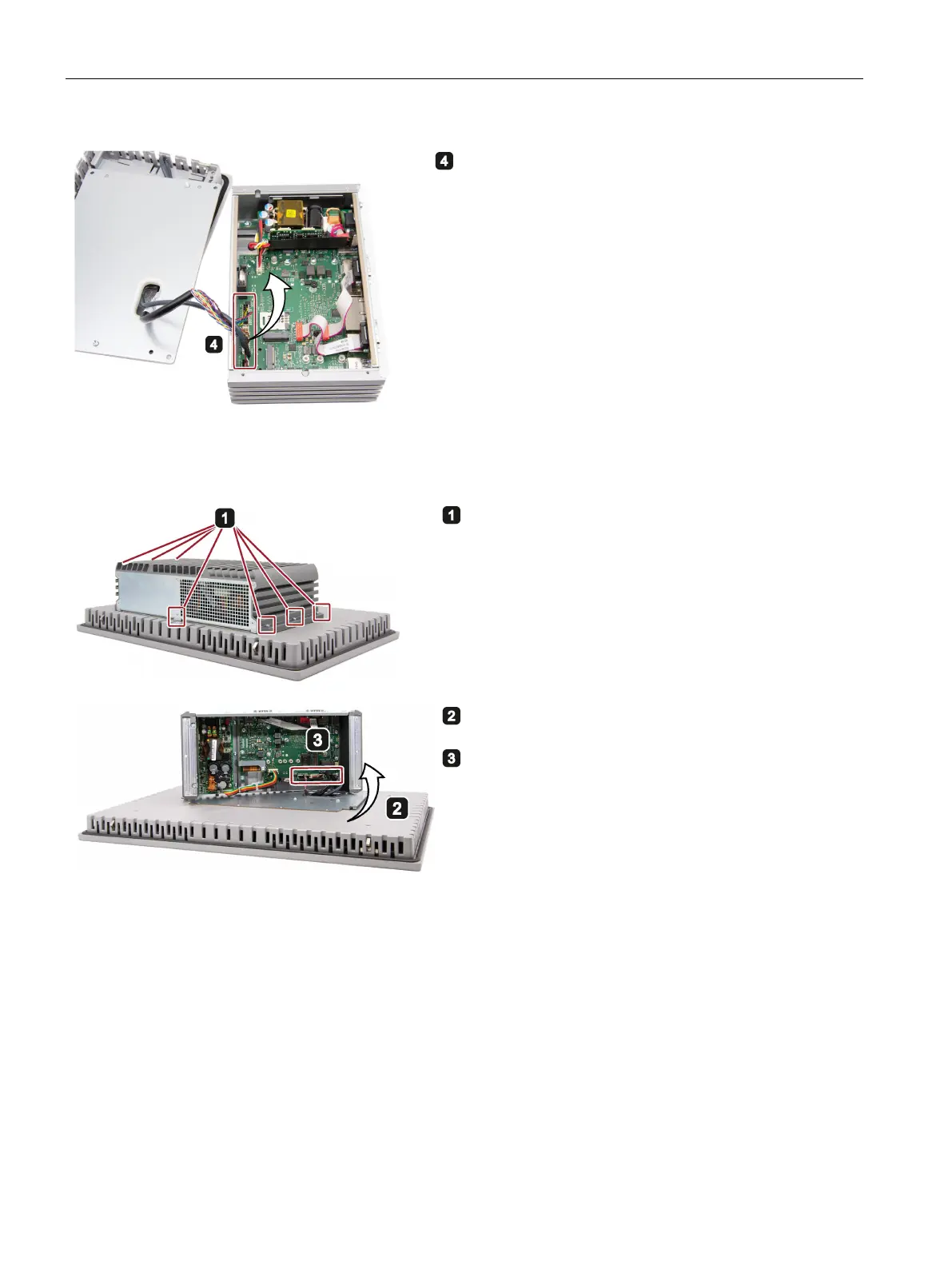

Unplug the marked three cables on the motherboard.
Procedure - Opening the 12" to 24" multi-touch devices
Remove the marked seven screws on the back of the
rear panel.
Lift up the device from the touch panel.
Unplug the marked three cables on the motherboard.
Procedure - closing the device
To close the device, carry out the steps for opening the device in the reverse order.
