Appendix Motherboard
A.2 Internal Connector
SIMATIC IPC527G
102 Operating Instructions, 03/2019, A5E45491226-AA

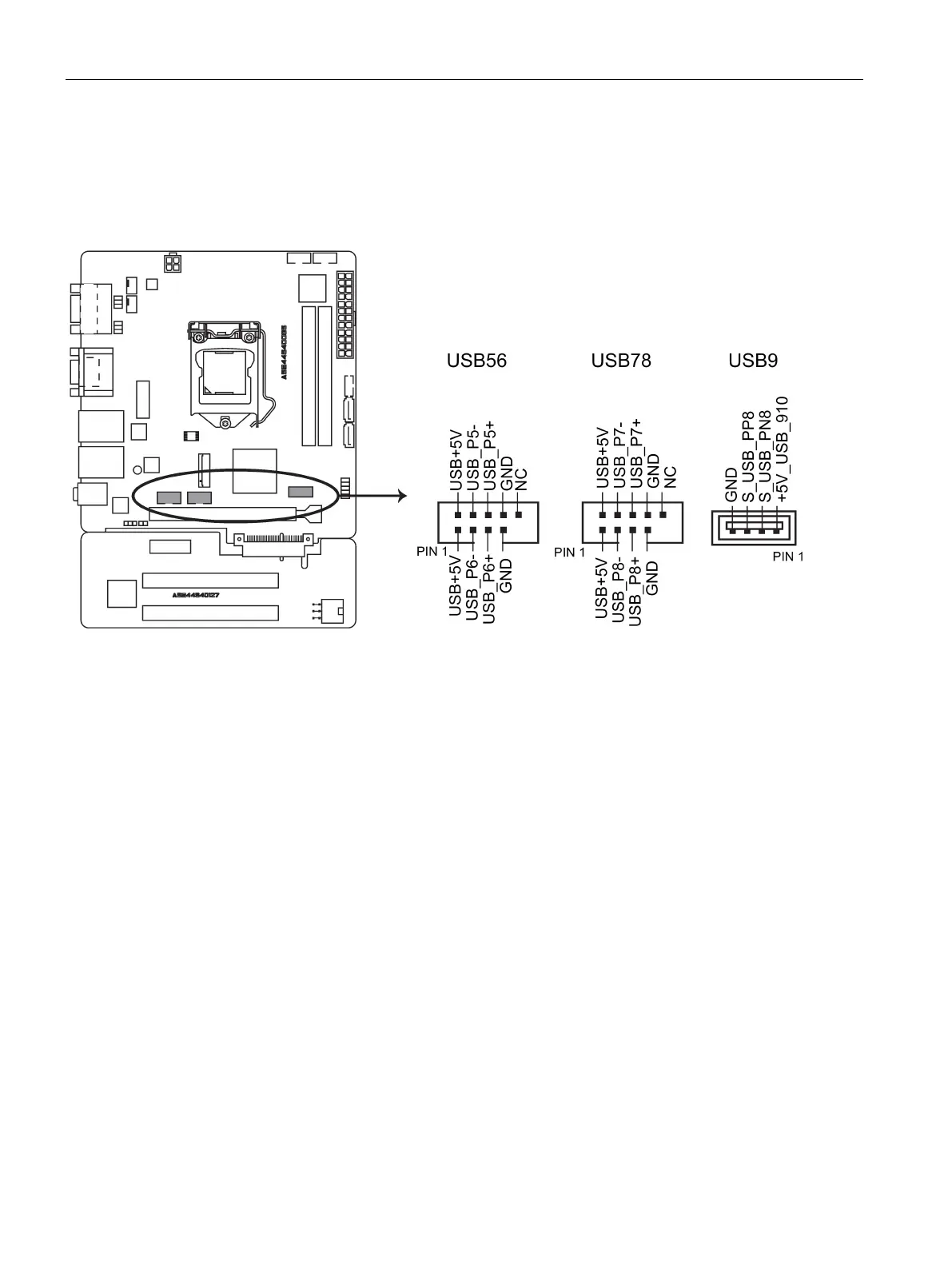

USB 2.0 connectors (USB56, USB78, USB9)
Connect a USB module cable to any of these connectors, then install the module to a slot
opening at the back of the system chassis. This USB connectors comply with USB 2.0
specifications and support up to 480Mbps connection speed.
