Installing and connecting the device
3.2 Mounting the device
SIMATIC IPC527G
26 Operating Instructions, 03/2019, A5E45491226-AA
3.2.5
Tower mounting
Tower mounting is one of the vertical mounting types and it is a space-saving installation of
the device.
Requirement
● Two mounting brackets
● A T10 screwdriver
● 6 × M3 screws from deliver package
● Another four screws for mounting to a horizontal shelf

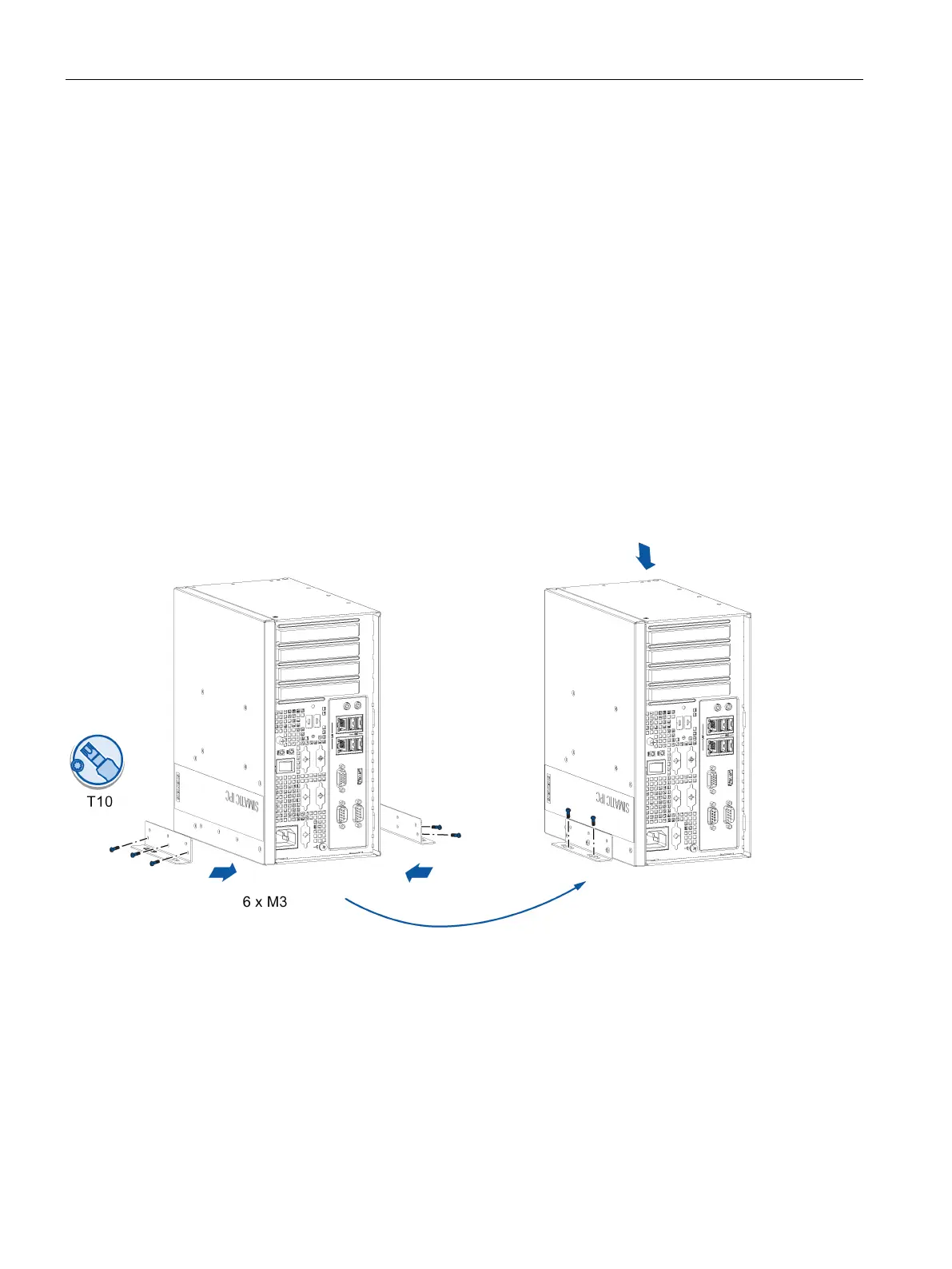

Procedure for mounting
Secure each mounting bracket with 3 × M3 screws to the device. The maximum penetration
depth is 5 mm.
Use the marked threaded holes.
