3.2 Mounting the device
SIMATIC IPC527G
Operating Instructions, 03/2019, A5E45491226-AA
23

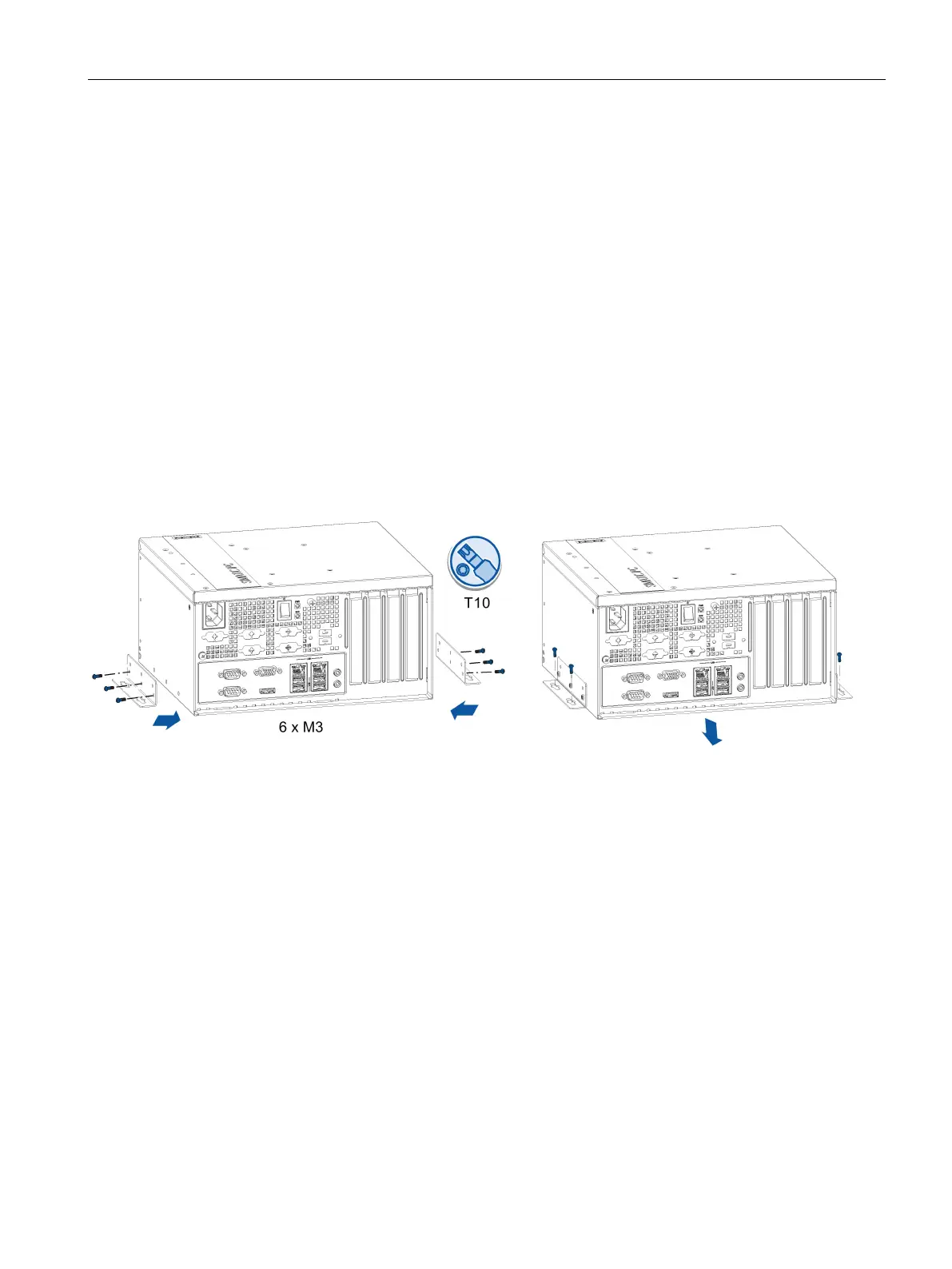

Desk mounting is suitable for horizontal mounting of the device.
● Two mounting brackets
● A T10 screwdriver
● 6 × M3 screws from deliver package
● Another four screws for mounting to a horizontal shelf
Secure each mounting bracket with 3 × M3 screws to the device. The maximum penetration
depth is 5 mm.
Use the marked threaded holes.
Wall mounting is one of the vertical mounting types.
● Two mounting brackets
● A T10 screwdriver
● 6 × M3 screws from deliver package
● Another four screws for mounting to the wall
Secure each mounting bracket with 3 × M3 screws to the device. The maximum penetration
depth is 5 mm.
