Siemens Simatic IPC527G - Digital I;O Connector (DIO)

Appendix Motherboard
A.2 Internal Connector
SIMATIC IPC527G
Operating Instructions, 03/2019, A5E45491226-AA
99
A.2.4

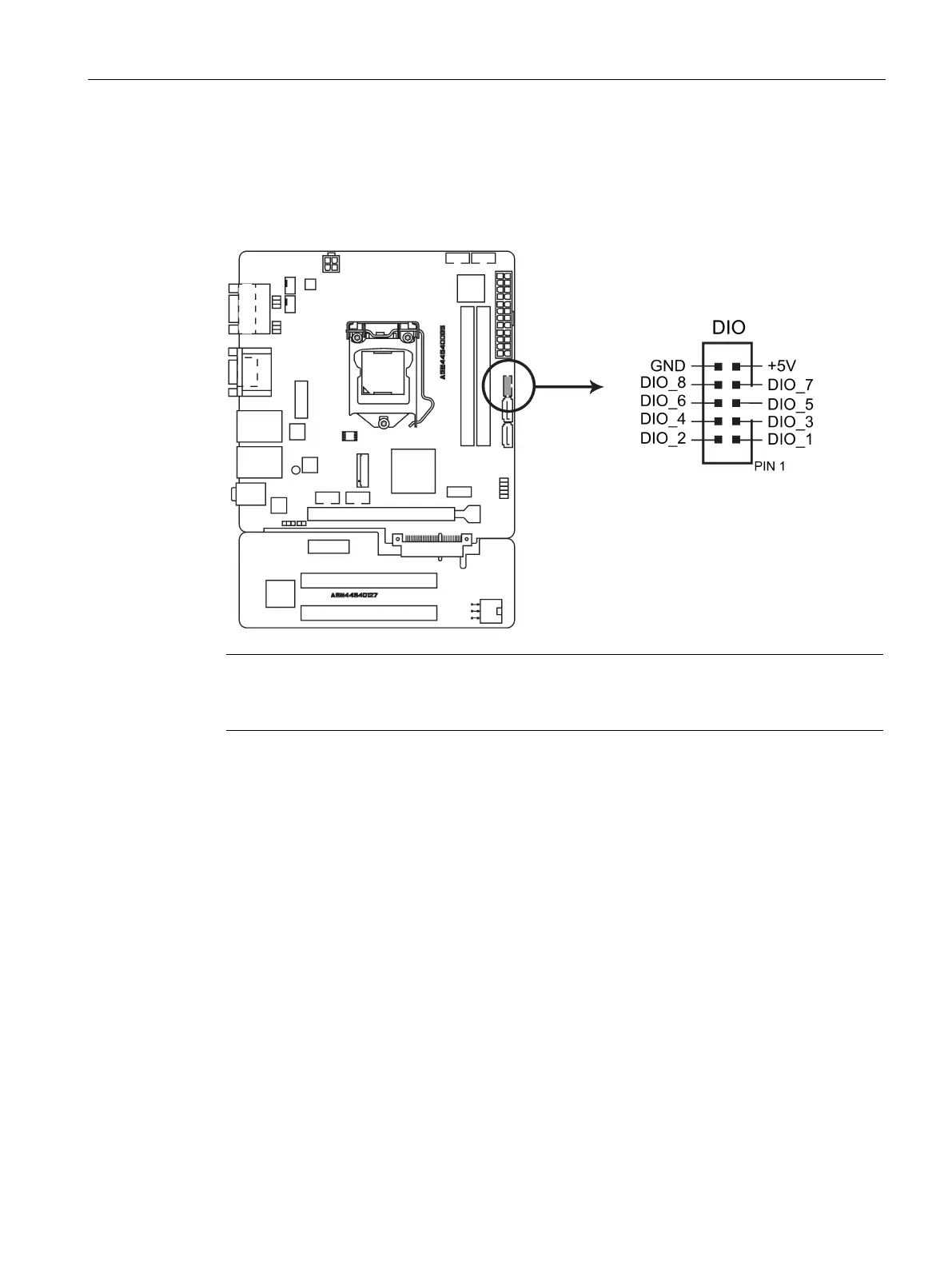

Digital I/O connector (DIO)
Digital I/O connector includes 8 I/O lines (In/Out programmable). All of the Digital I/O lines
are programmable and each I/O pin can be individually programmed to support various
devices.
Note
To configure the I/O pins in BIOS, navigate to Dynamic Digital IO
selection in
Advanced
tab.
For the d
etailed information, refer to Advanced menu (Page 80).
