Technical specifications

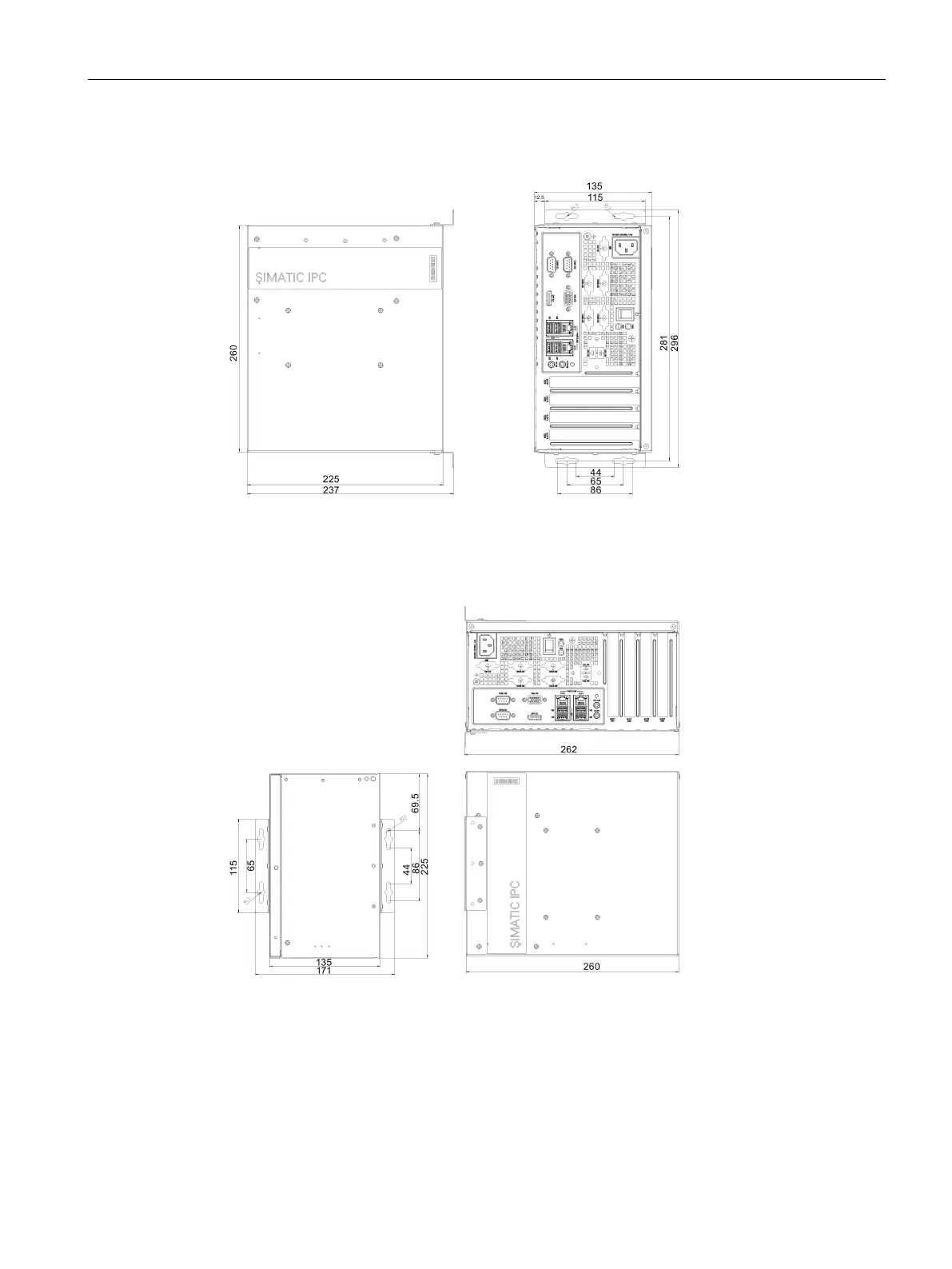

7.3 Dimension drawings
SIMATIC IPC527G
Operating Instructions, 03/2019, A5E45491226-AA
61
Book mounting (for the interfaces are at the front)
all dimensions in mm
Tower mounting
all dimensions in mm
