8.1.2 Dimensions

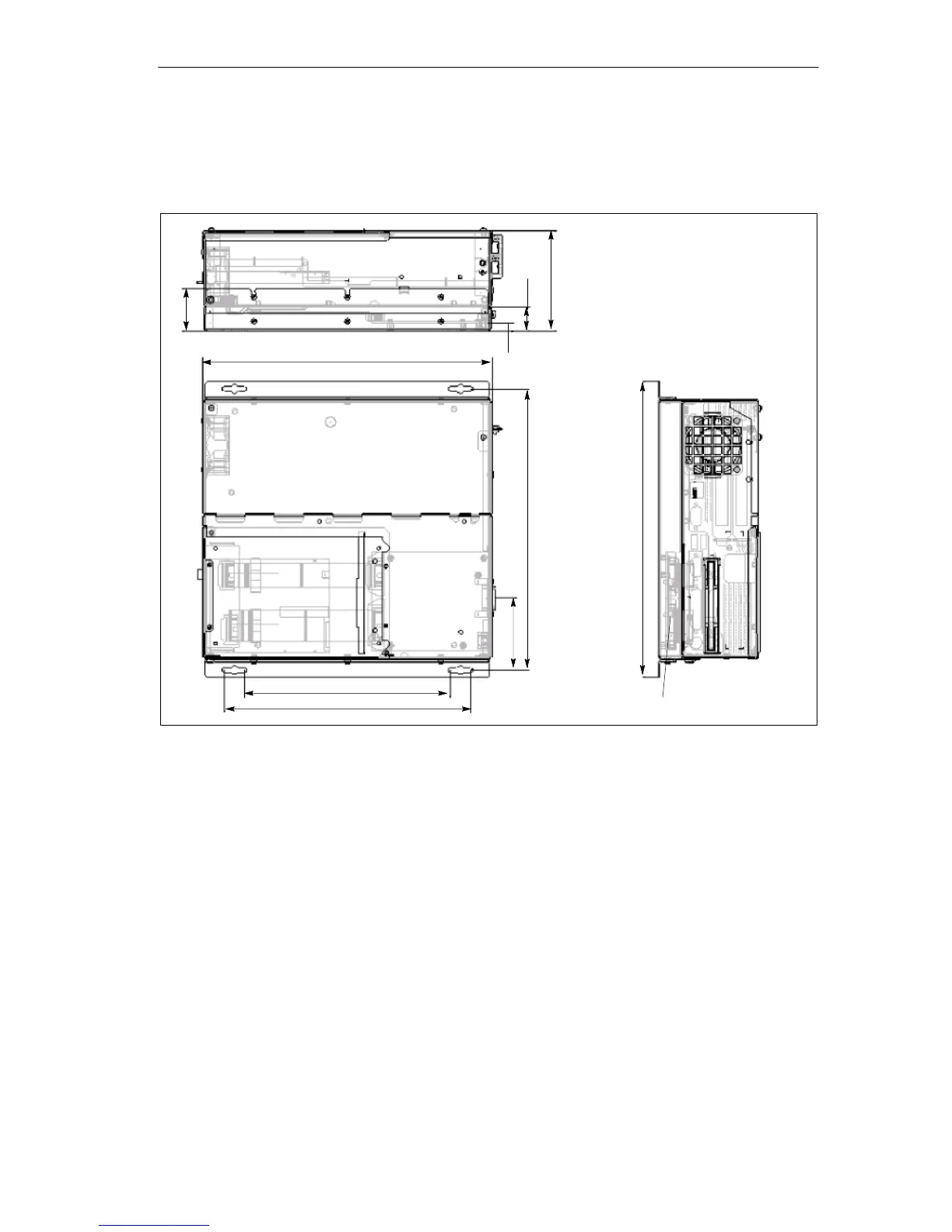

Figure 8-2 shows the dimensions of the PC 670 computing unit with transmitter.
Transmitter
211
253
289.6
74.3
25
104,1
8
304.6
297.2
43.5
Dimensions in mm
Figure 8-2 Dimensions computing unit PC 670 without CD-ROM drive in distributed configuration
including transmitter
8.1.3 Mounting
The computing unit is supplied as a complete combination with the transmitter
installed ex works.
The device is fitted with the help of four elongated holes in the mounting brackets
(refer to Figures 8-1 and 8-2).
Mounting positions
The computing unit may be mounted in a vertical and a horizontal position (see
chapter 2.2). We recommend a vertical position.
